Oil Pan Cover Replacement

Oil Pan Cover Replacement

Removal Procedure





1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle (Service Intervals) .

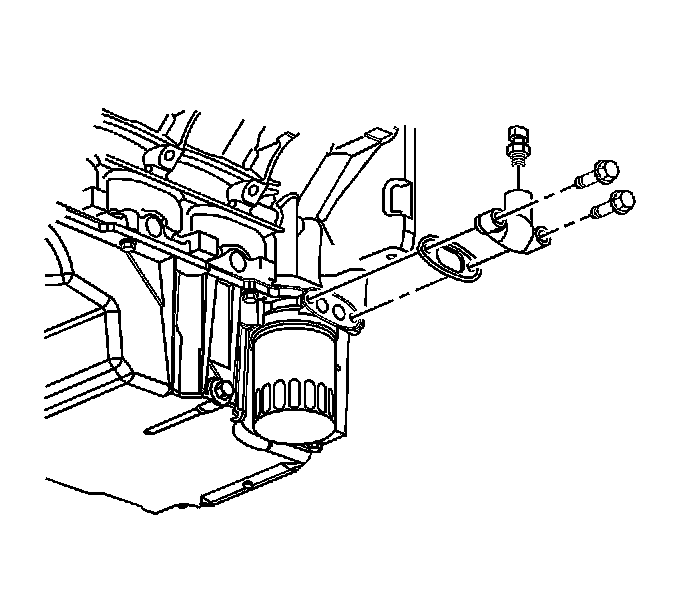

2. Remove the oil pan cover retaining bolts.
3. Remove the cover.
4. Remove the gasket.



Installation Procedure





1. Position the gasket and cover on the engine block.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the retaining bolts for the cover.

Tighten the retaining bolts to 12 N.m (106 lb in).

3. Lower the vehicle.
