Recirculation Door Replacement

Recirculation Door Replacement

Removal Procedure

1. Remove the air inlet assembly. Refer to Air Inlet Assembly Replacement (Air Inlet Assembly Replacement) .

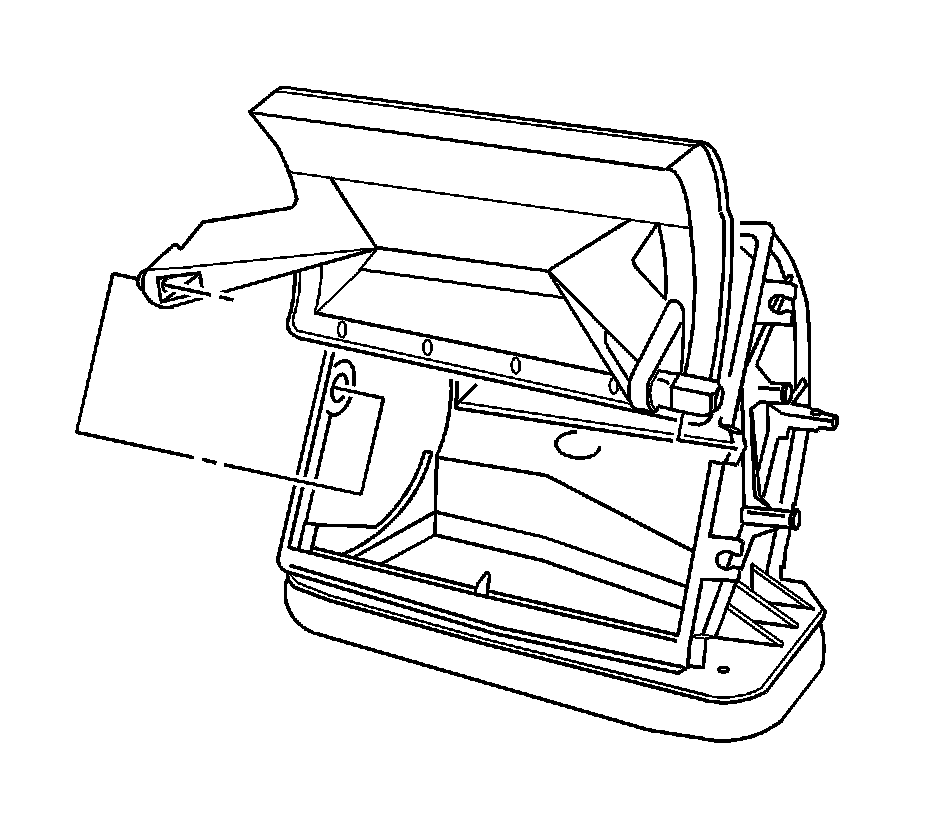

2. Disconnect and remove the recirculation door from the air inlet housing.



Installation Procedure





1. Install the recirculation door to the air inlet housing.
2. Install the air inlet assembly. Refer to Air Inlet Assembly Replacement (Air Inlet Assembly Replacement) .
