Hydraulic Hose: Service and Repair

Hydraulic Clutch Hose/Pipe Replacement

Removal Procedure





1. Remove the clutch actuator cylinder. Refer to Clutch Actuator Cylinder Replacement (Service and Repair) .

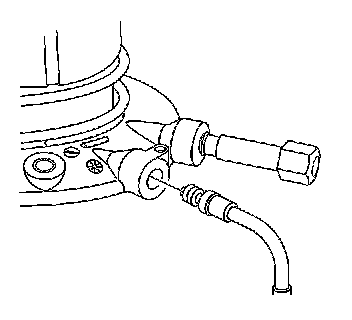

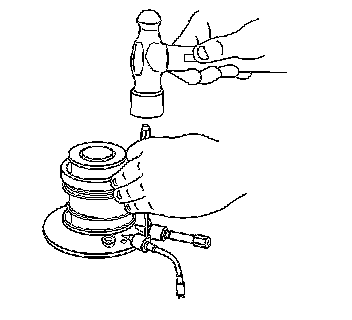

2. Use a small drift or punch to remove the roll-pin retaining the hydraulic hose to the actuator cylinder.




3. Remove the hydraulic hose from the actuator cylinder.
4. Drain off the excess fluid from the actuator cylinder into a container.



Installation Procedure





1. Install the new clutch actuator cylinder hose to the clutch actuator cylinder.
Check the new O-ring seal for proper placement on the actuator cylinder hose.




2. Install the actuator cylinder hose roll-pin retainer using a small drift or punch.
3. Rotate the actuator cylinder hose to ensure freedom of movement.
4. Install the clutch actuator cylinder. Refer to Clutch Actuator Cylinder Replacement (Service and Repair) .
