Repair and Diagnosis
>>
Body and Frame
>>
Locations
>>

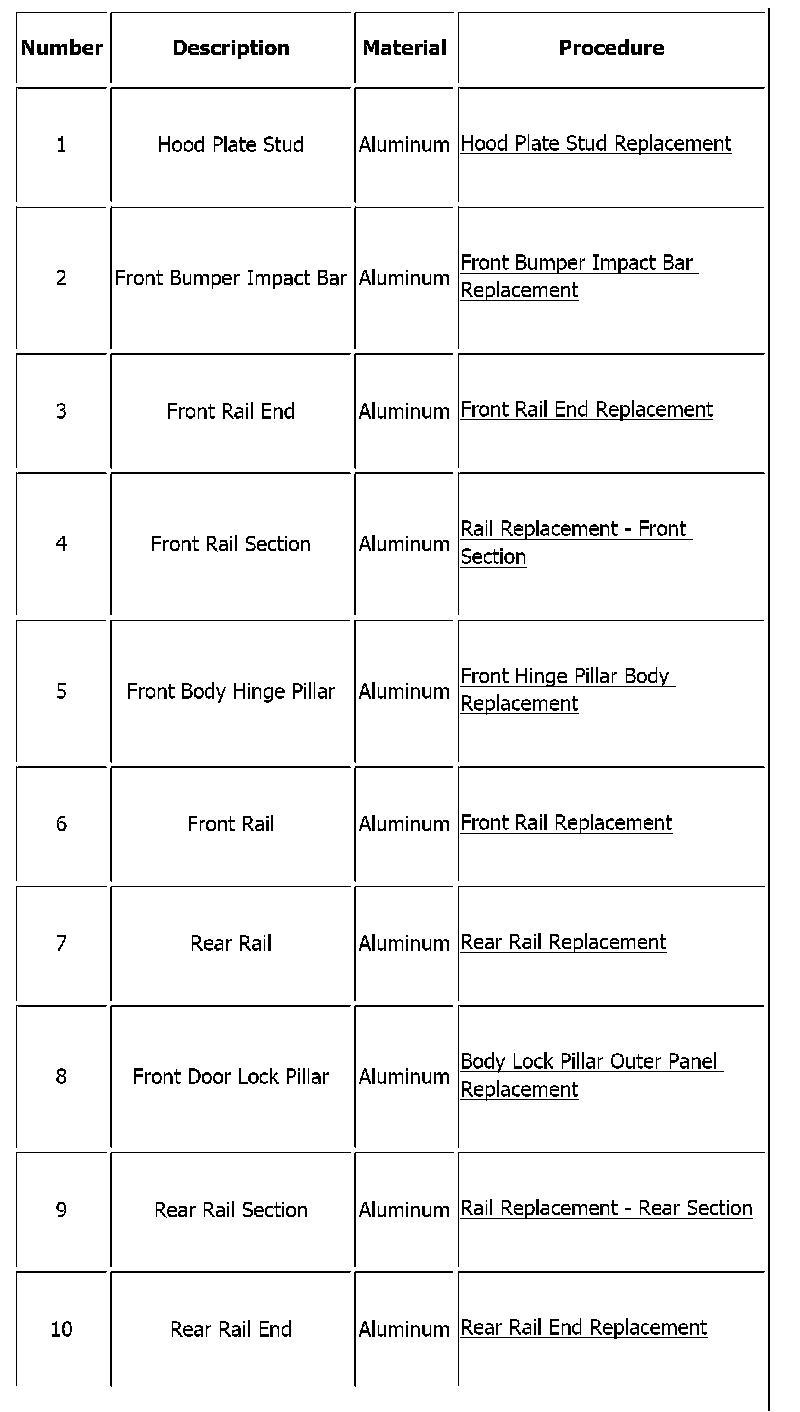

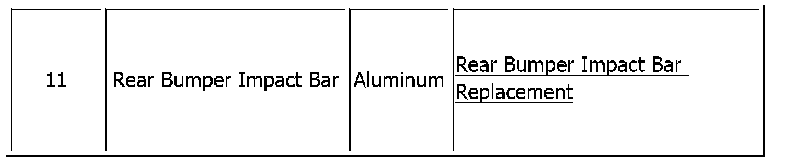

Structure Identification (Z06)
Structure Identification (Z06)
Structure Identification (Z06)

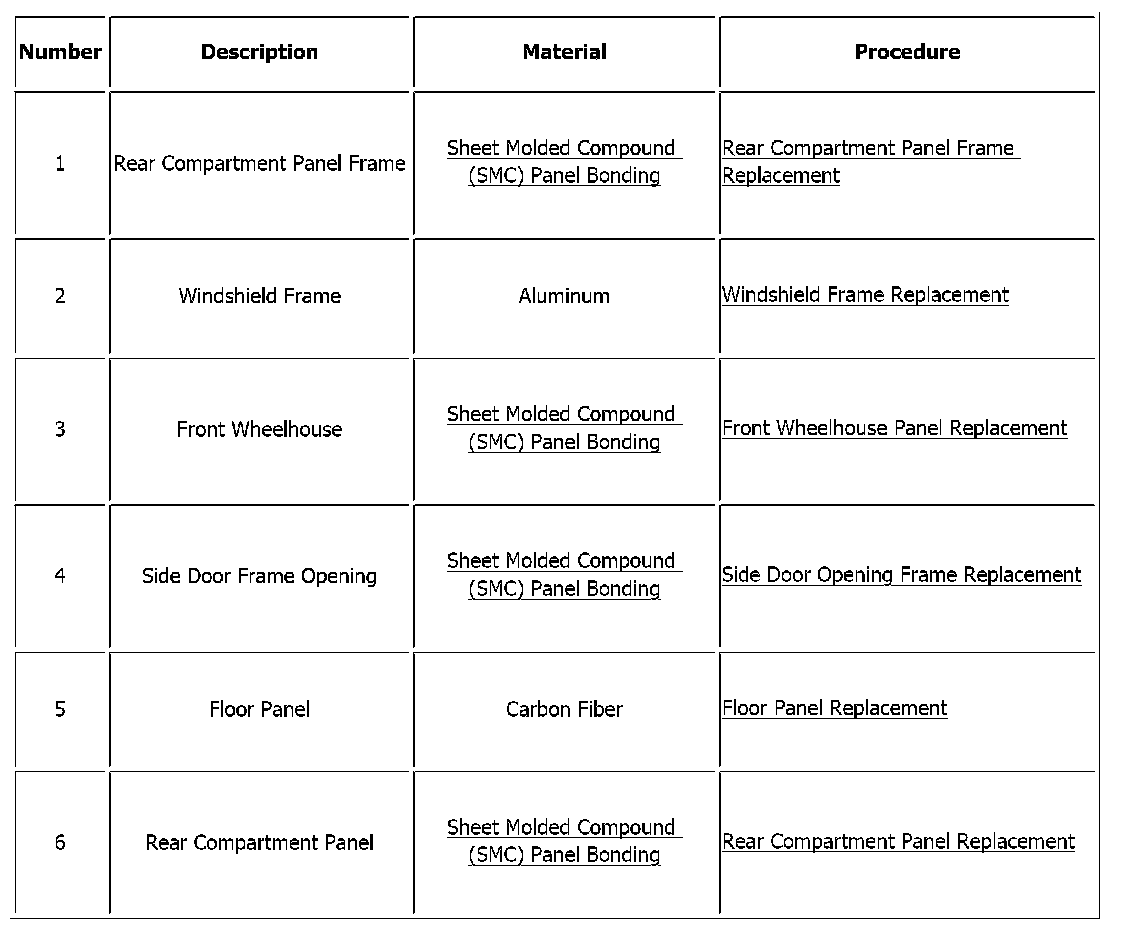

Figure 1:
Inner Panel Identification
