Park Brake Front Cable Replacement

Parking Brake Front Cable Replacement

Removal Procedure





1. Remove the park brake lever. Refer to Park Brake Lever Assembly Replacement (Service and Repair) .
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service Intervals) .
3. Remove the RH muffler. Refer to Exhaust Muffler Replacement - Right Side (Service and Repair) .

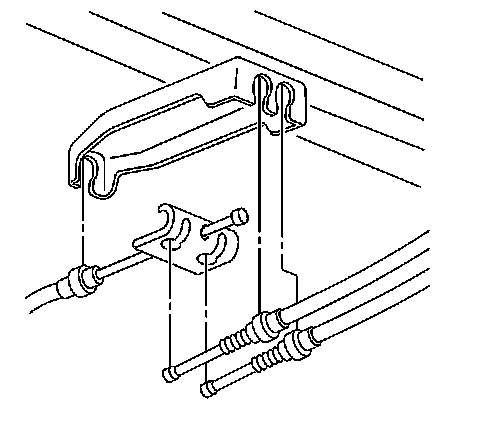

4. Disconnect the rear park brake cables from the equalizer.
5. Disconnect the front park brake cable from the cable retainer.

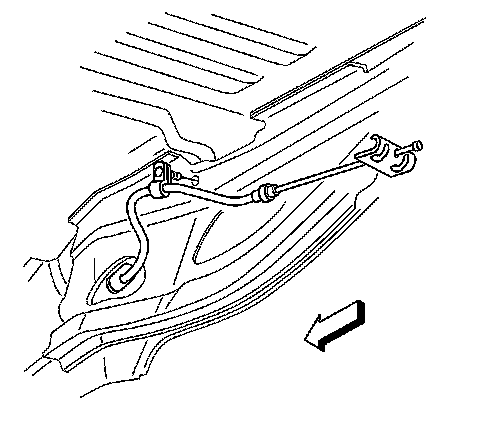

6. Remove the front park brake cable bracket from the tunnel.
7. Lower the vehicle.
8. Remove the front cable from the vehicle.
9. Remove the pass-through grommet and front bracket from the cable.



Installation Procedure





1. Install the front bracket and pass-through grommet to the cable.
2. Install the front park brake cable to the vehicle. Insure the pass-through grommet is properly installed.
3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service Intervals) .
4. Install the front park brake cable bracket to the tunnel.




5. Connect the front park brake cable to the park brake cable retainer.
6. Connect the rear park brake cables to the equalizer.
7. Install the RH muffler. Refer to Exhaust Muffler Replacement - Right Side (Service and Repair) .
8. Lower the vehicle.
9. Install the park brake lever. Refer to Park Brake Lever Assembly Replacement (Service and Repair) .
