Parking Brake Lever: Service and Repair

Park Brake Lever Assembly Replacement

Removal Procedure





1. Remove the accessory trim plate. Refer to Console Replacement (Service and Repair) .
2. Remove the passenger seat. Refer to Seat Replacement (Seat Replacement) .

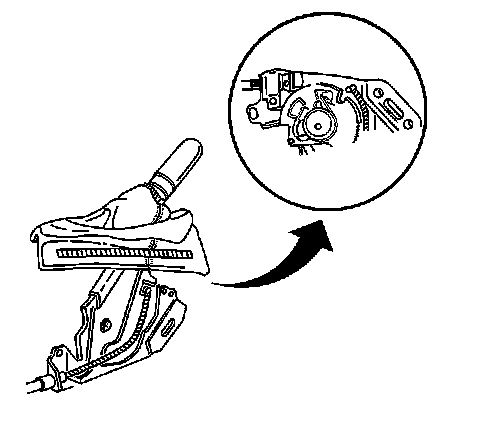

3. Lift and disengage the retainer clips on the park brake lever boot.




4. Disconnect the parking brake electrical connector.
5. Disable the parking brake automatic adjuster. Refer to Parking Brake Cable Adjuster Disabling (Park Brake Cable Adjuster Disabling) .

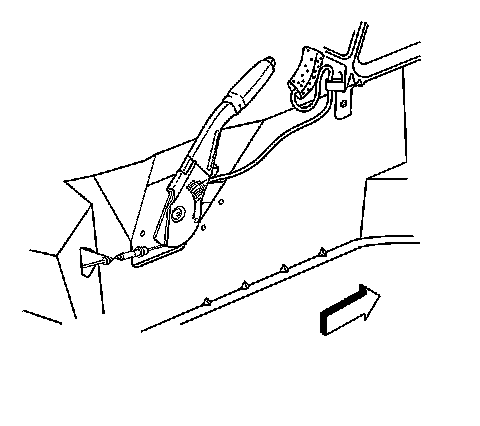

6. Remove the parking brake lever assembly mounting bolts.
7. Reposition the park brake lever.




8. Disconnect the front parking brake cable from the drive sector and park brake lever assembly.



Installation Procedure





1. Connect the front parking brake cable to the drive sector and park brake lever assembly.





Notice: Refer to Fastener Notice .

2. Install the parking brake lever assembly mounting bolts.

Tighten the parking brake lever assembly mounting bolts to 28 N.m (21 lb ft).





3. Connect the parking brake electrical connector.
4. Enable the parking brake automatic adjuster. Refer to Parking Brake Cable Adjuster Enabling (Park Brake Cable Adjuster Enabling) .




5. Install the parking brake lever boot nuts.

Tighten the parking brake lever boot nuts to 10 N.m (89 lb in).

6. Install the passenger seat. Refer to Seat Replacement (Seat Replacement) .
7. Install the accessory trim plate. Refer to Console Replacement (Service and Repair) .
