Multiple Junction Connector
>>
X400 - X499
>>
X439
X439

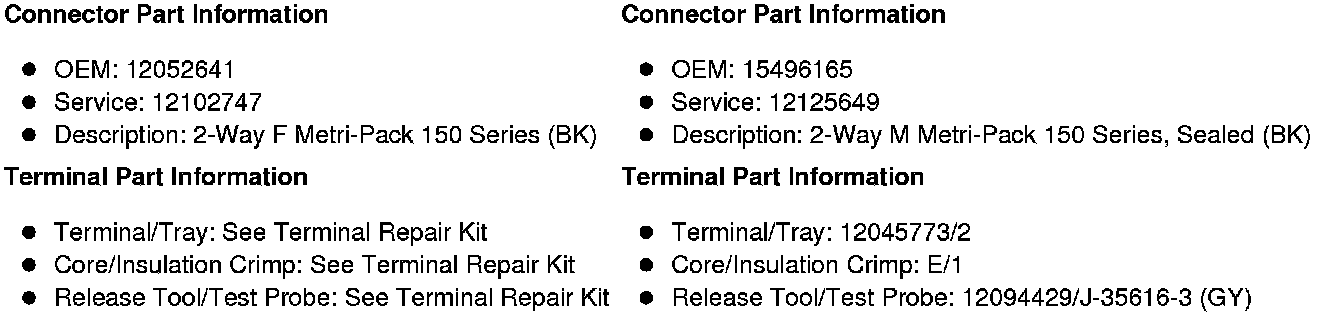

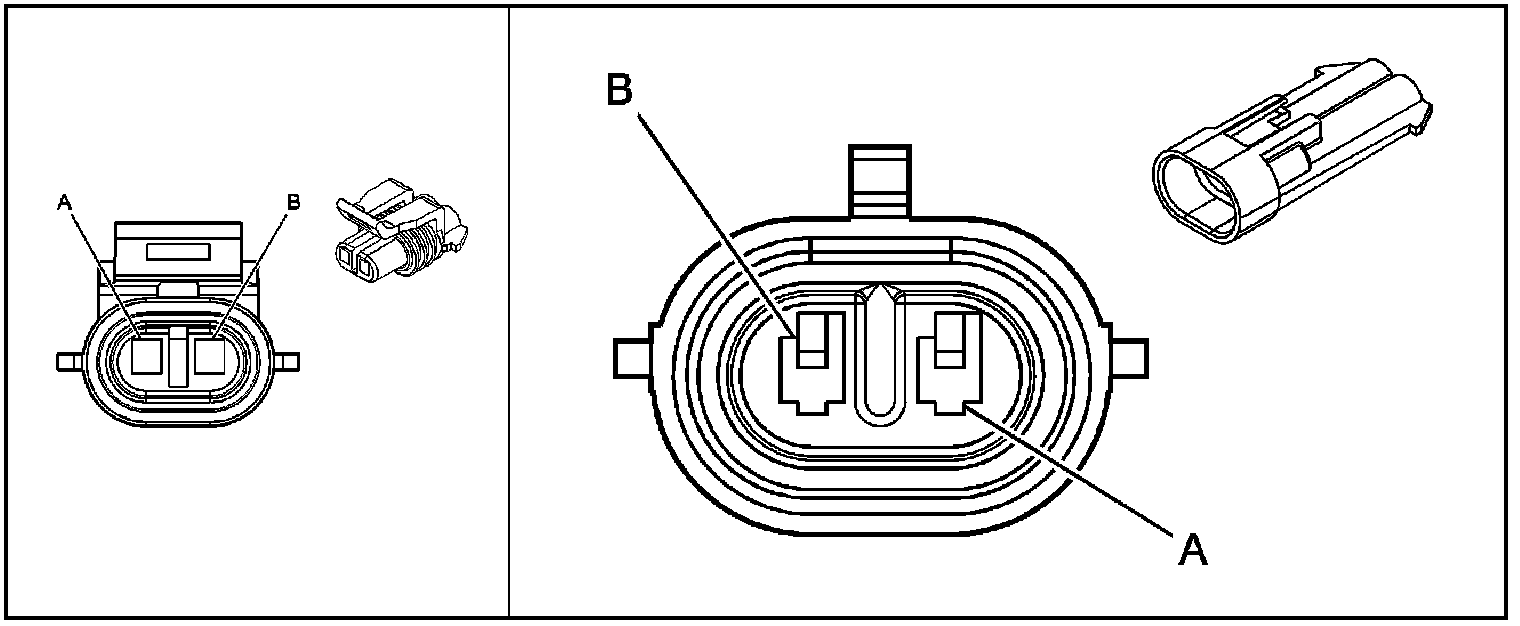

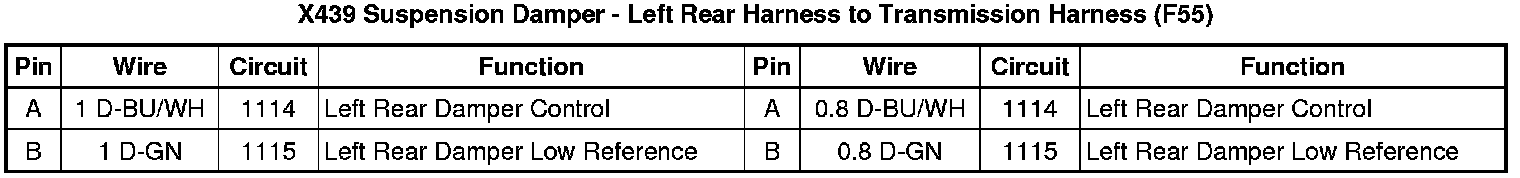

X439 Suspension Damper - Left Rear Harness to Transmission Harness (F55)
