Engine Mount Bracket Replacement - Right

Engine Mount Bracket Replacement - Right Side

Removal Procedure





1. Remove the right engine mount. Refer to Engine Mount Replacement - Right Side (Service and Repair) .

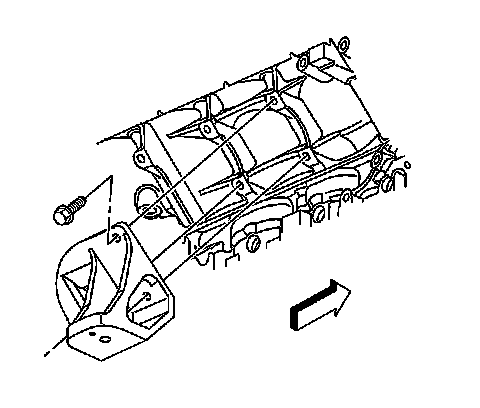

2. Remove the engine mount bracket bolts.
3. Remove the engine mount bracket.



Installation Procedure





1. Install the engine mount bracket.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the engine mount bracket bolts.

Tighten the engine mount bracket bolts to 50 N.m (37 lb ft).

3. Install the right engine mount. Refer to Engine Mount Replacement - Right Side (Service and Repair) .
