22. Crankshaft Rear Oil Seal Housing Removal

Crankshaft Rear Oil Seal Housing Removal

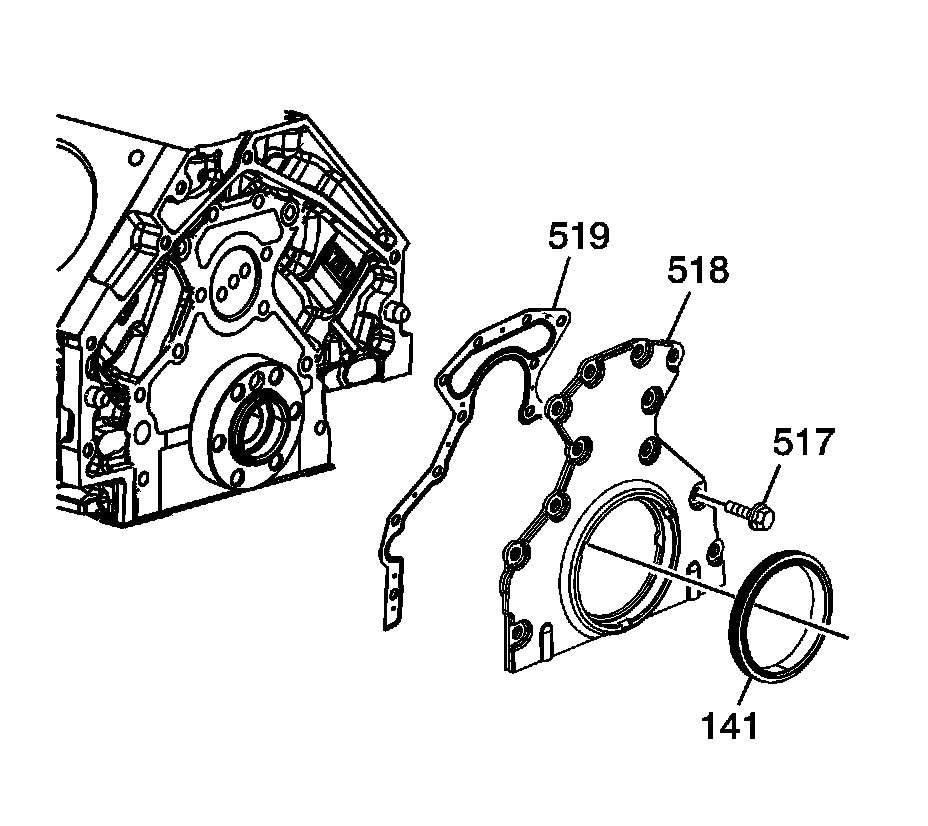

1. Remove the rear oil seal housing bolts (517).
2. Remove the housing (518) and gasket (519).
3. Remove the rear oil seal (141).
