Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Corvette V8-7.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
G202
G202
Ground Distribution Schematics

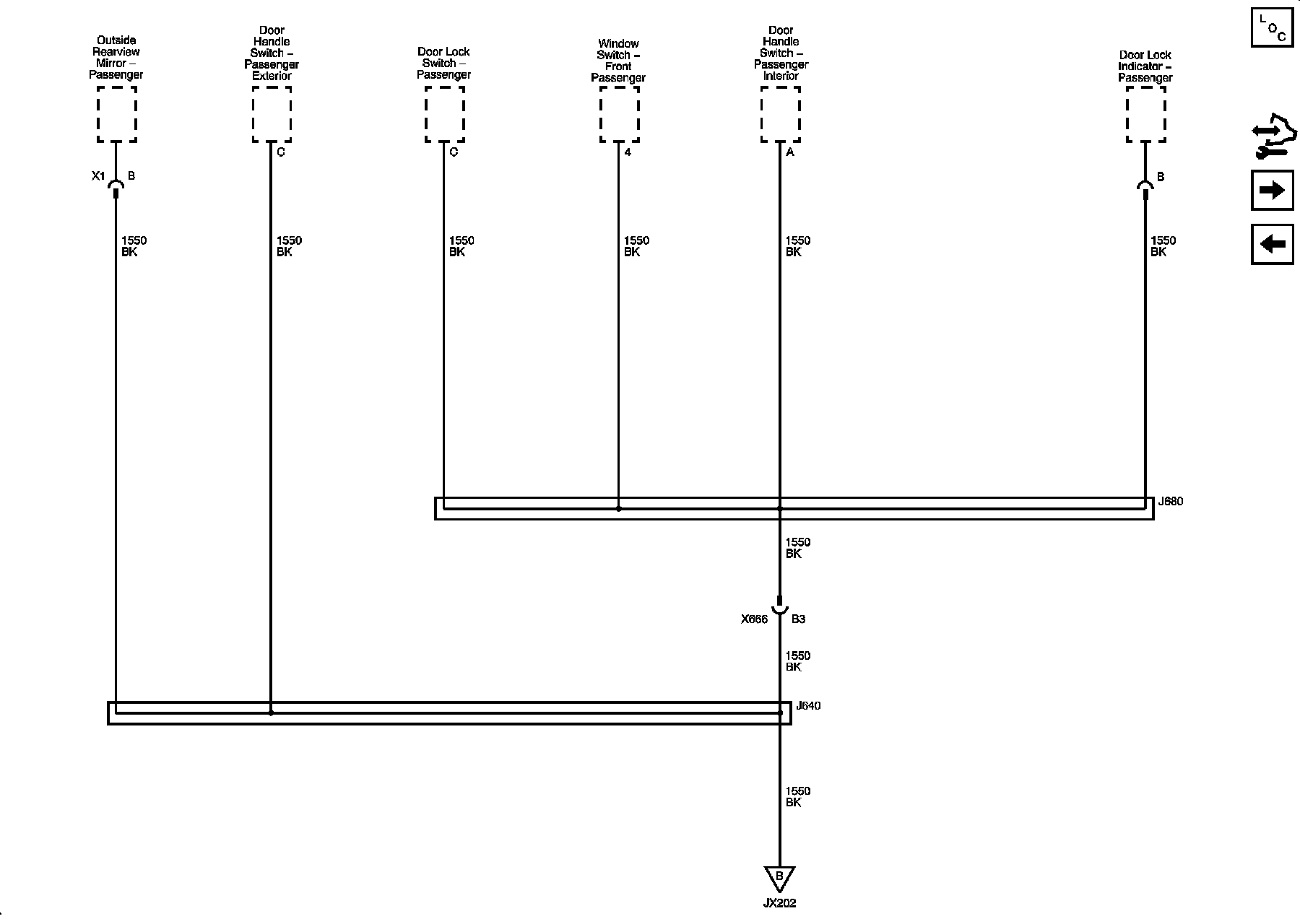

G202 (1 of 2)

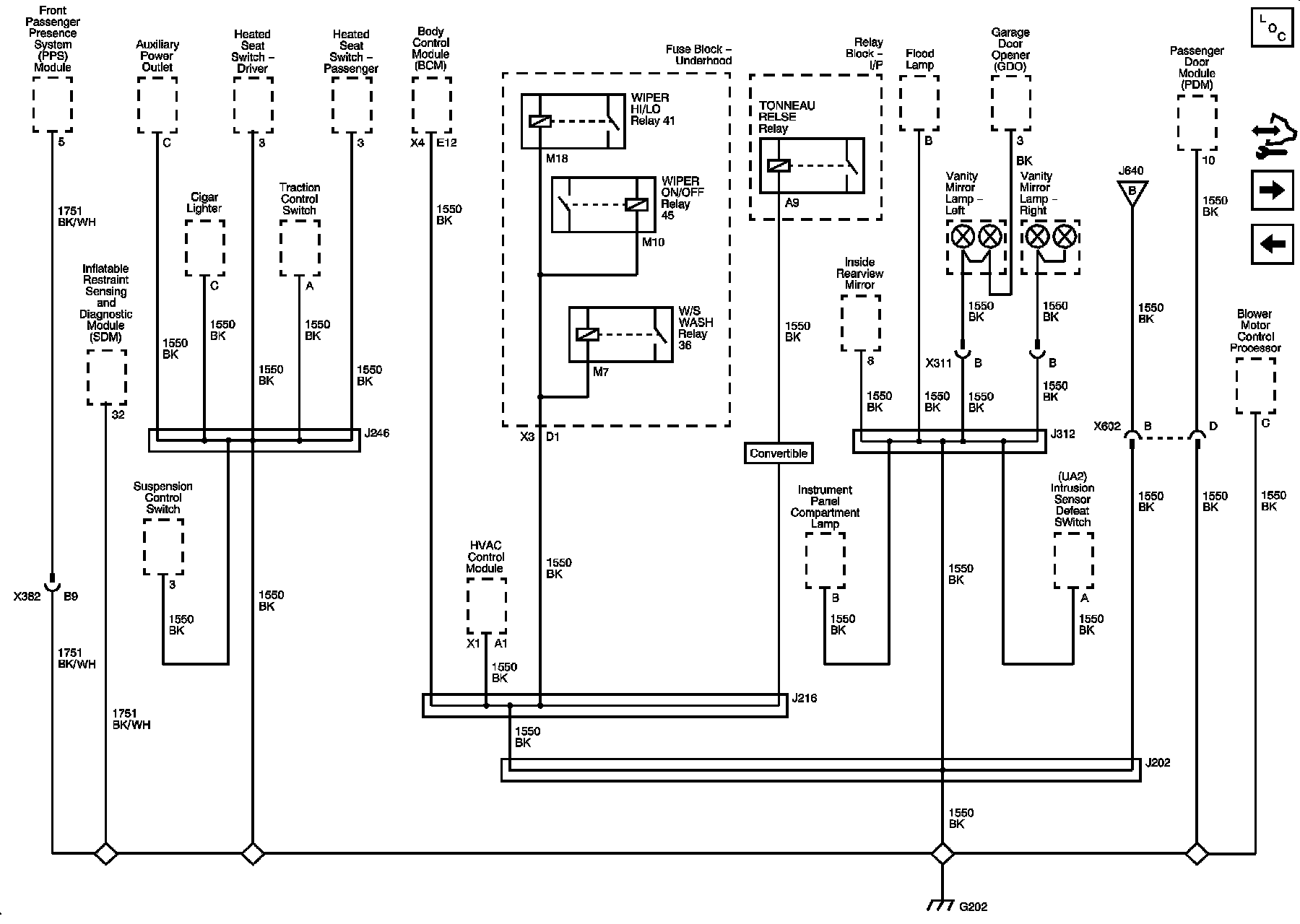

G202 (2 of 2)
