Inflatable Restraint Front End Sensor Replacement

Inflatable Restraint Front End Sensor Replacement

Removal Procedure

1. Disable the SIR system. Refer to SIR Disabling and Enabling (Service and Repair) .

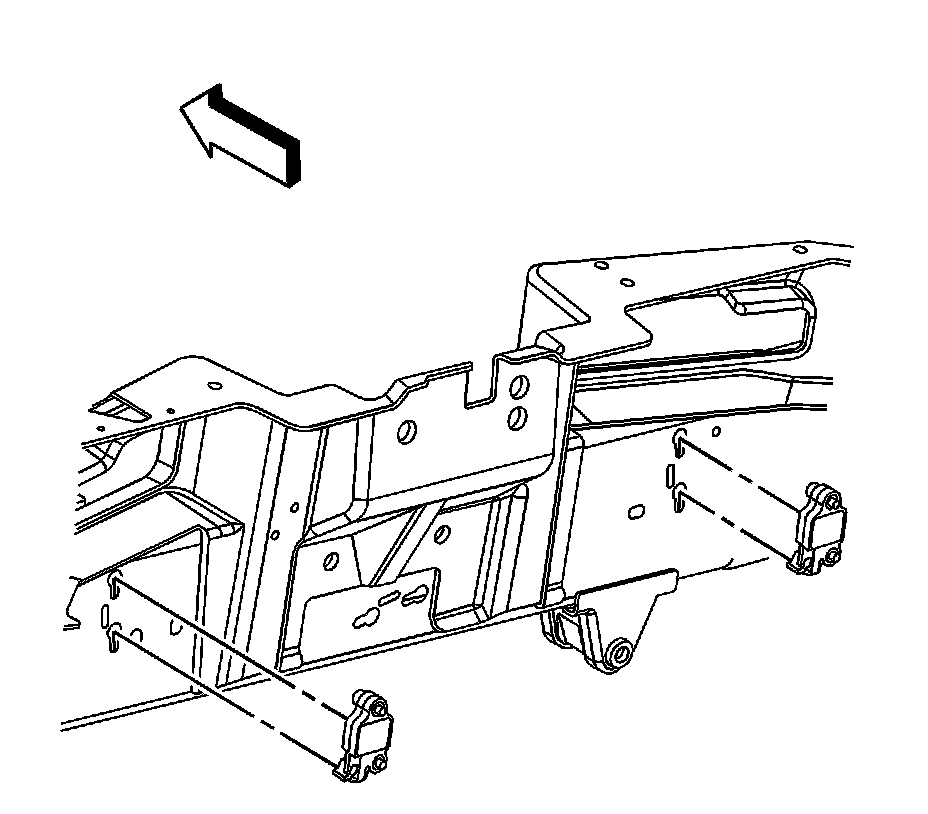

2. Remove the retaining bolts from the inflatable restraint front end sensor.
3. Remove the sensor from the vehicle.



Installation Procedure





1. Install the sensor from the vehicle.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the retaining bolts to the inflatable restraint front end sensor.

Tighten the bolts to 9 N.m (80 lb in).

3. Enable the SIR system. Refer to SIR Disabling and Enabling (Service and Repair) .
