Power Steering Pump Pulley Replacement

Power Steering Pump Pulley Replacement


Special Tools
* J 25033-C Power Steering Pump Pulley Installer
* J 25034-C Power Steering Pump Pulley Remover



Removal Procedure





1. Remove the brake pressure modulator valve (BPMV). Refer to Brake Pressure Modulator Valve Replacement (Service and Repair) .
2. Remove the BPMV bracket. Refer to Brake Pressure Modulator Valve Bracket Replacement (Service and Repair) .
3. Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory (Drive Belt Replacement - Accessory) .

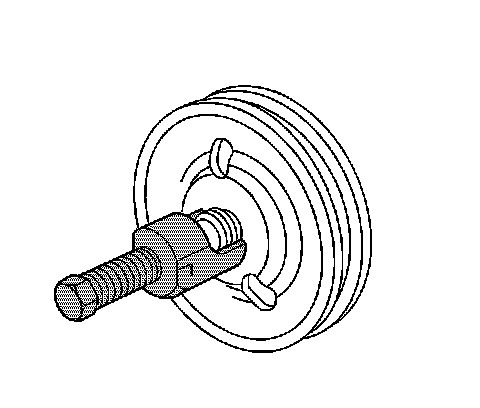

4. Install the J 25034-C on the power steering pump pulley and remove the pulley.



Installation Procedure

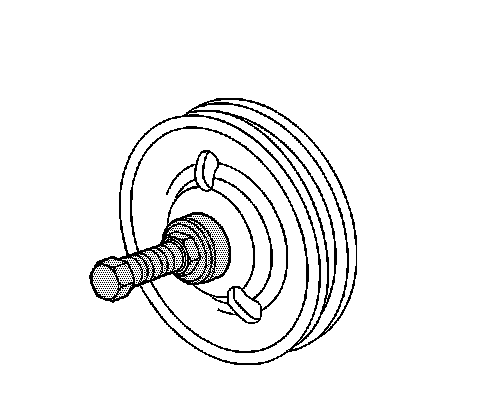

1. Using J 25033-C , install the power steering pump pulley onto the power steering pump.

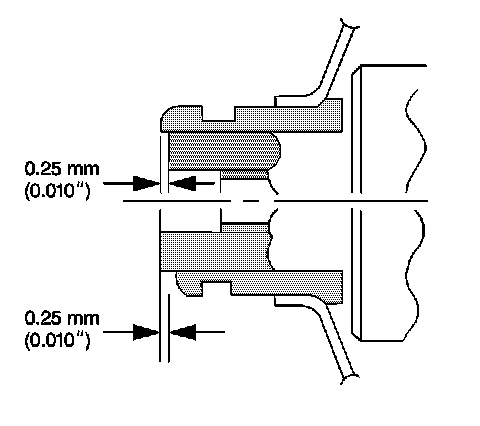

Important: The pulley must be installed onto pump shaft so that the pulley hub is flush to within 0.25 mm (0.010 in) with the pump shaft.


2. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory (Drive Belt Replacement - Accessory) .
3. Install the BPMV bracket. Refer to Brake Pressure Modulator Valve Bracket Replacement (Service and Repair) .
4. Install the BPMV. Refer to Brake Pressure Modulator Valve Replacement (Service and Repair) .
