Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Corvette V8-7.0L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Moveable Window Schematics

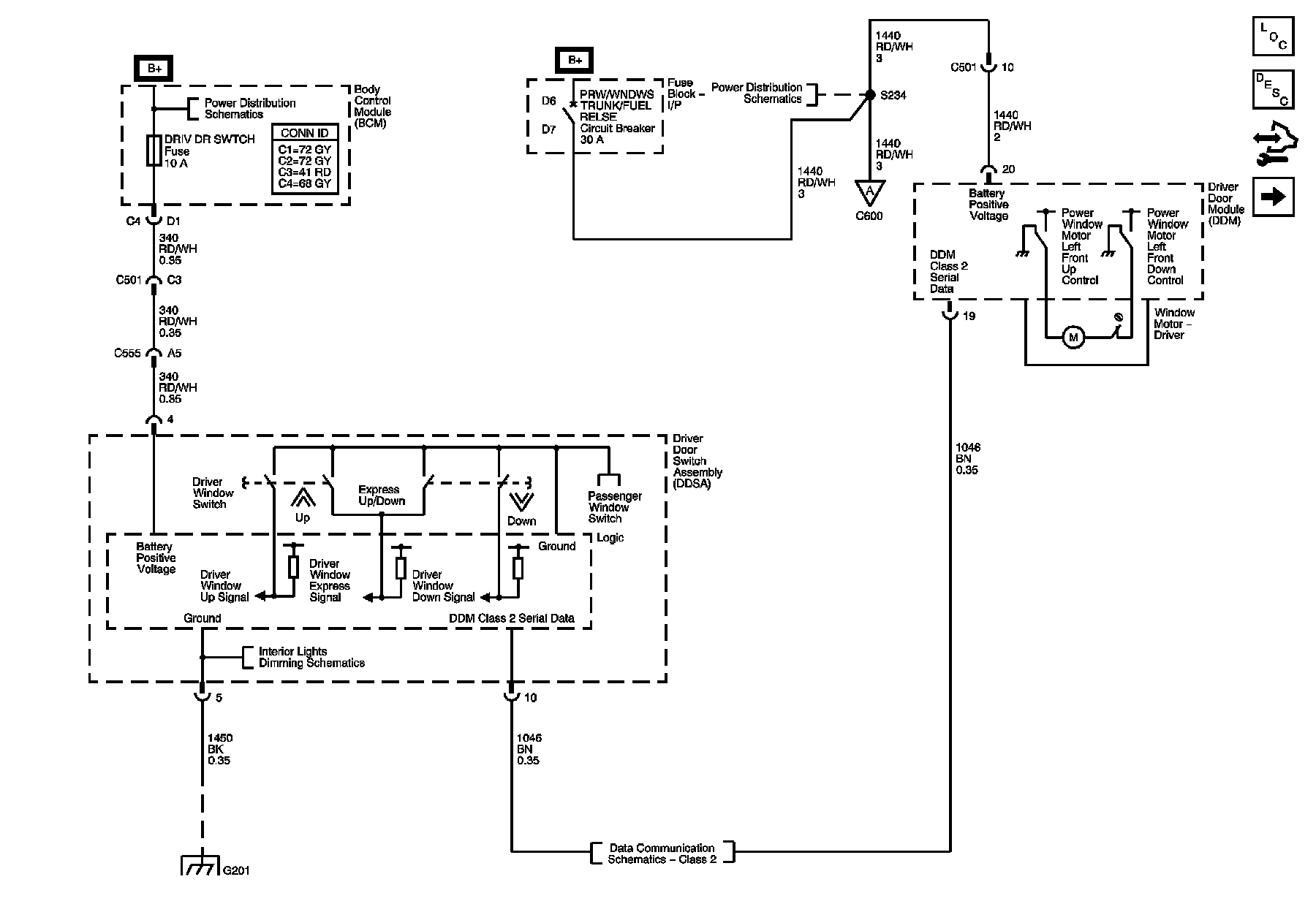

Driver

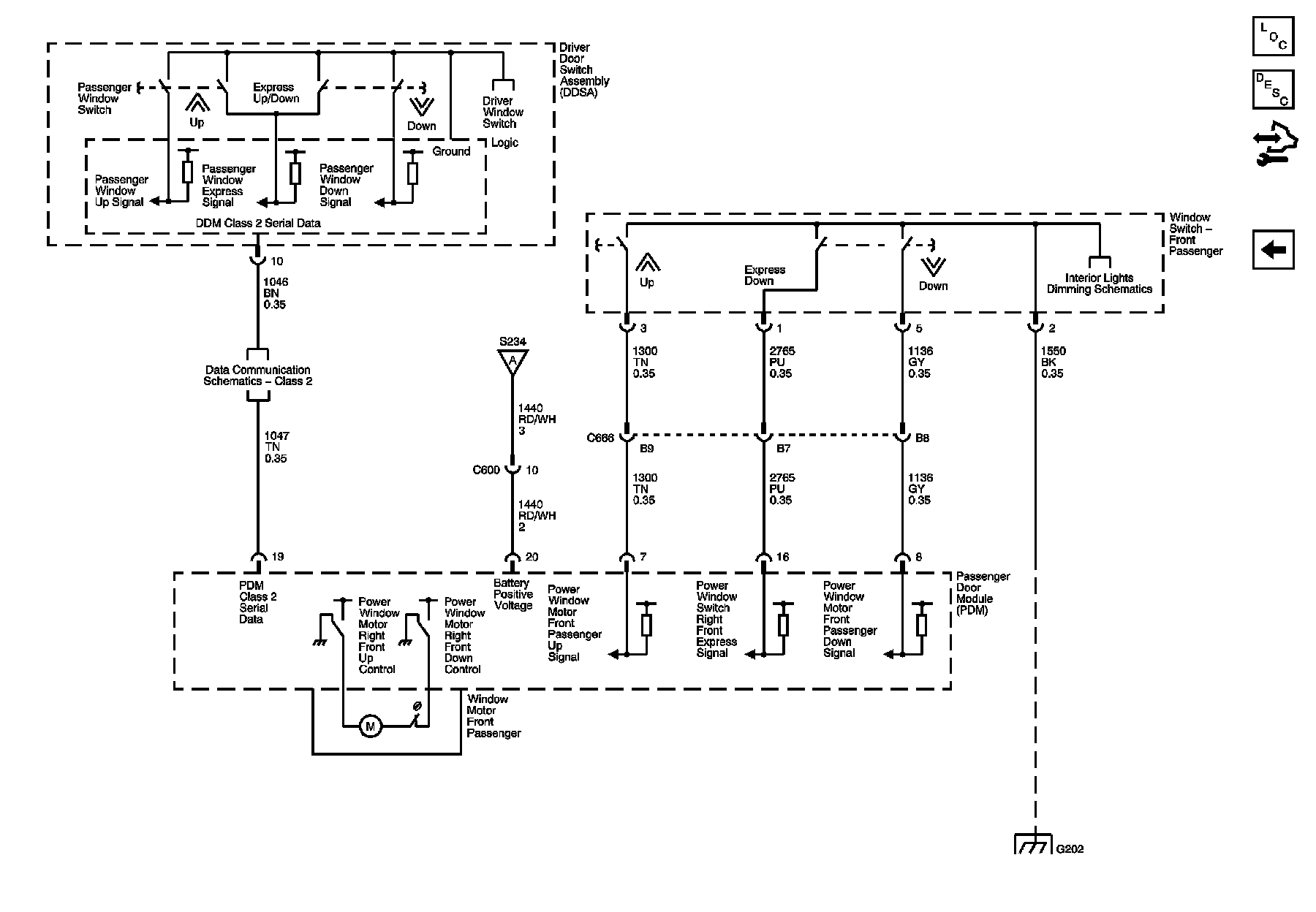

Passenger
