Battery Tray: Service and Repair

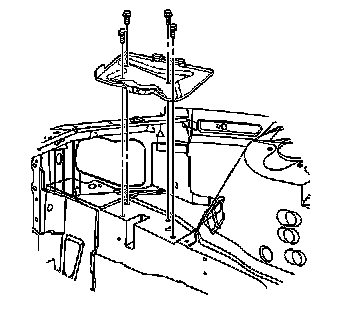

Battery Tray Replacement (RPOs LZE/LZ4/LZ8)

Removal Procedure




1. Remove the battery.
2. Remove the battery tray bolts.
3. Remove the battery tray.

Installation Procedure




1. Install the battery tray.

Notice: Refer to Fastener Notice.

2. Install the battery tray bolts.

Tighten the bolts to 5 N.m (44 lb in).

3. Install the battery.
