Radio/Stereo: Diagrams



Component Connector End Views

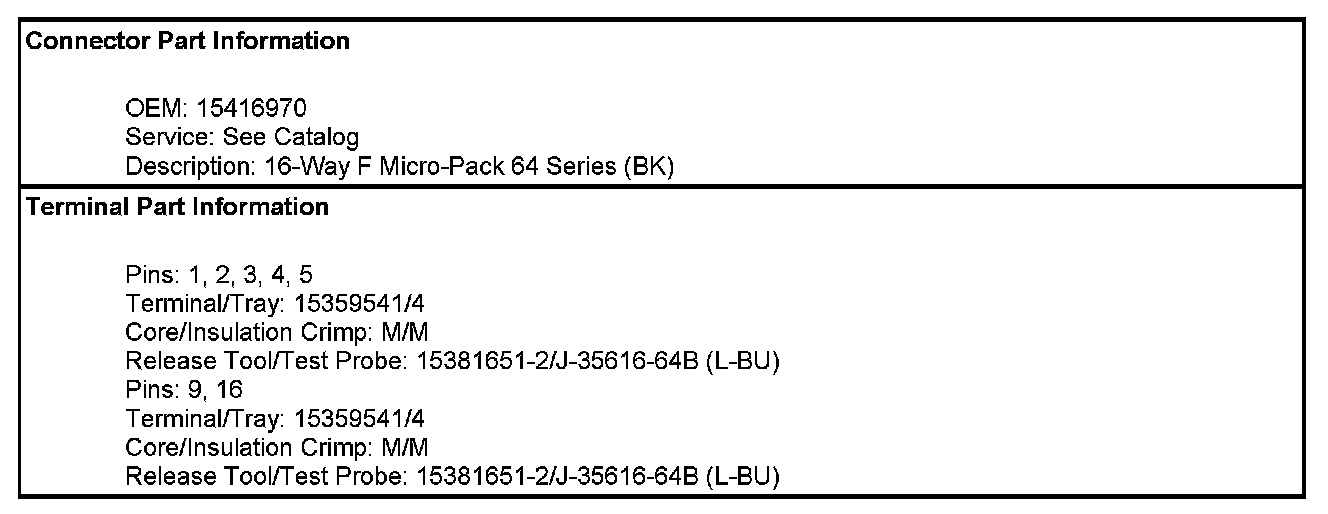

Digital Radio Receiver (U2K)

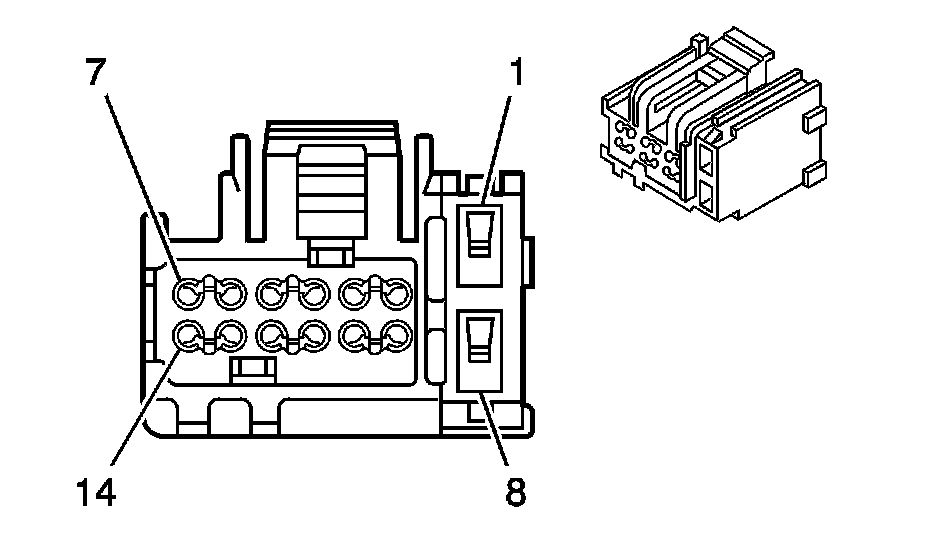

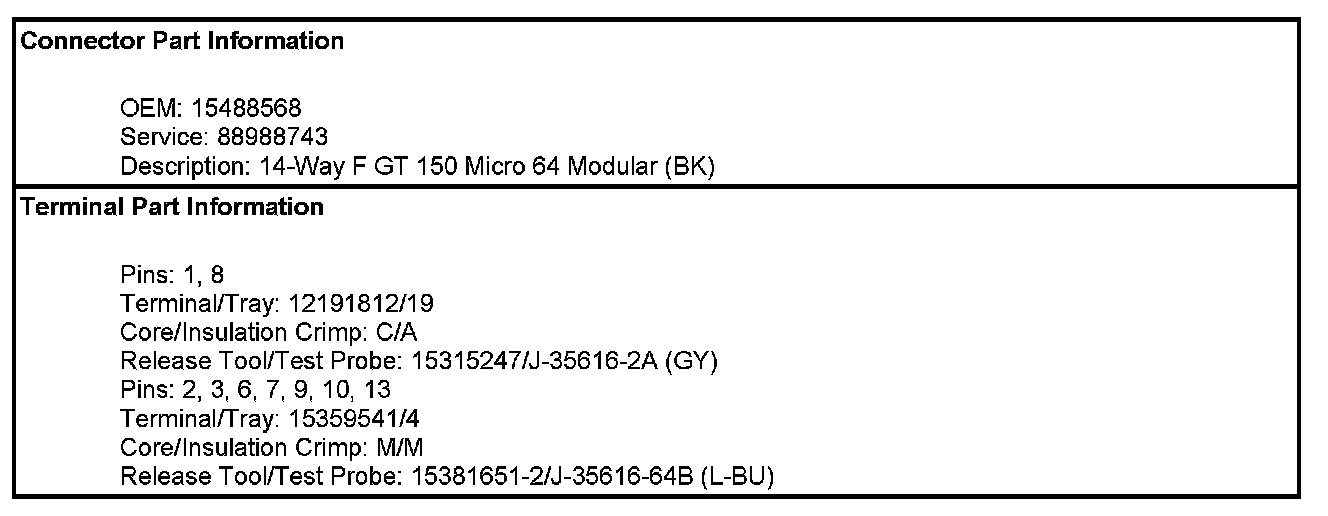

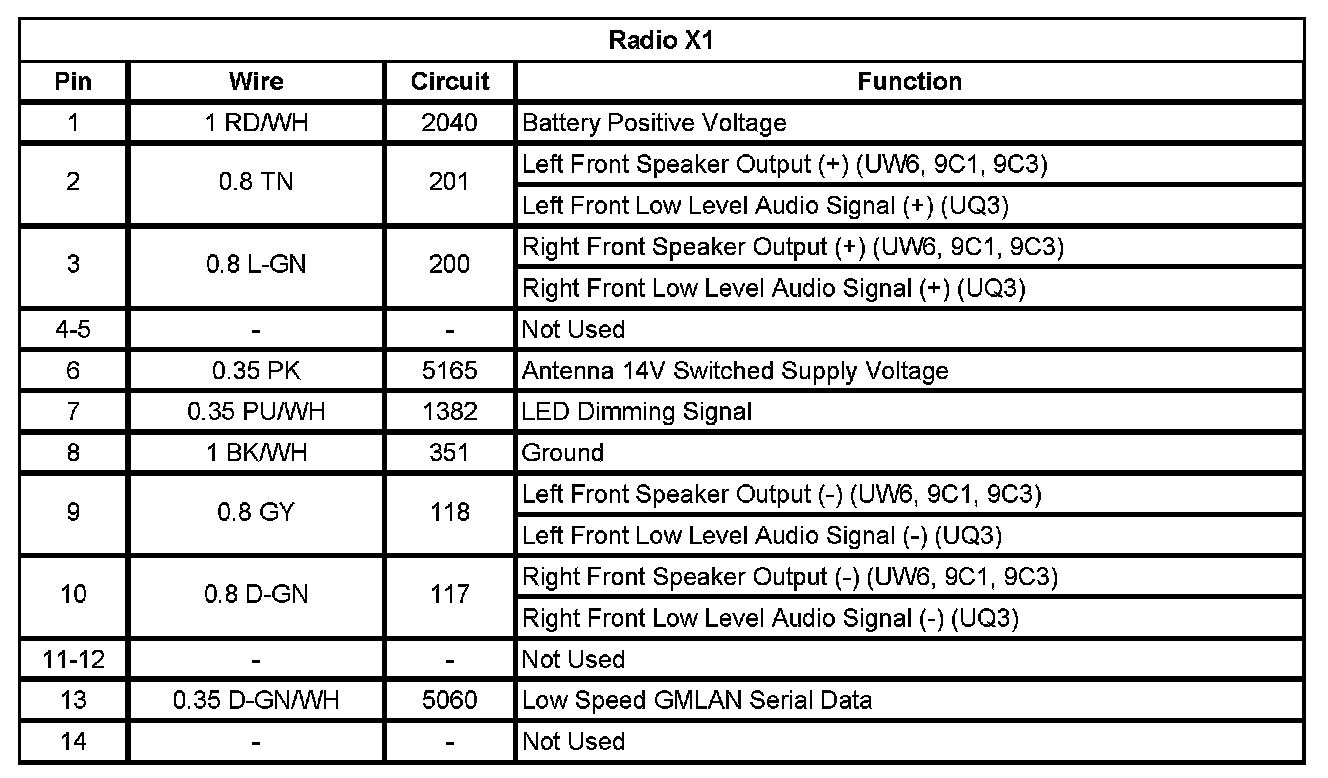

Radio X1

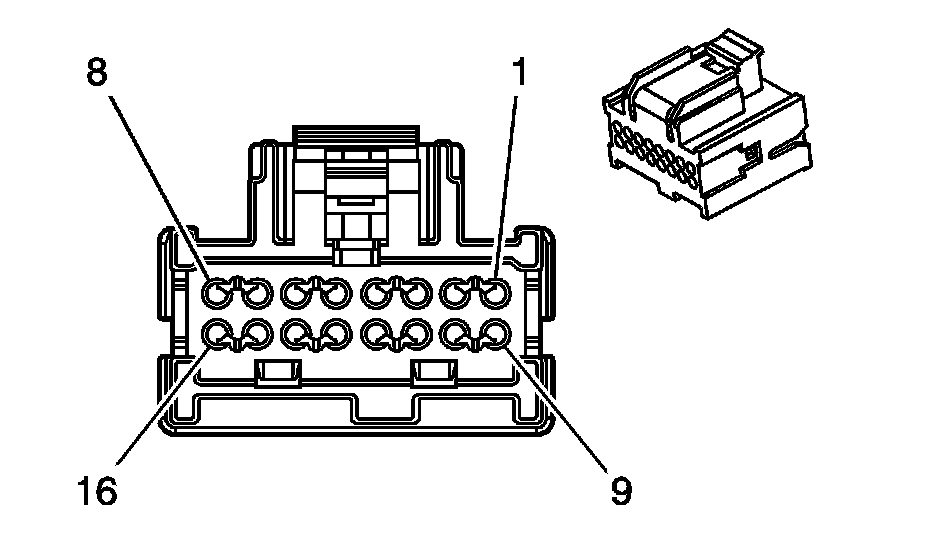

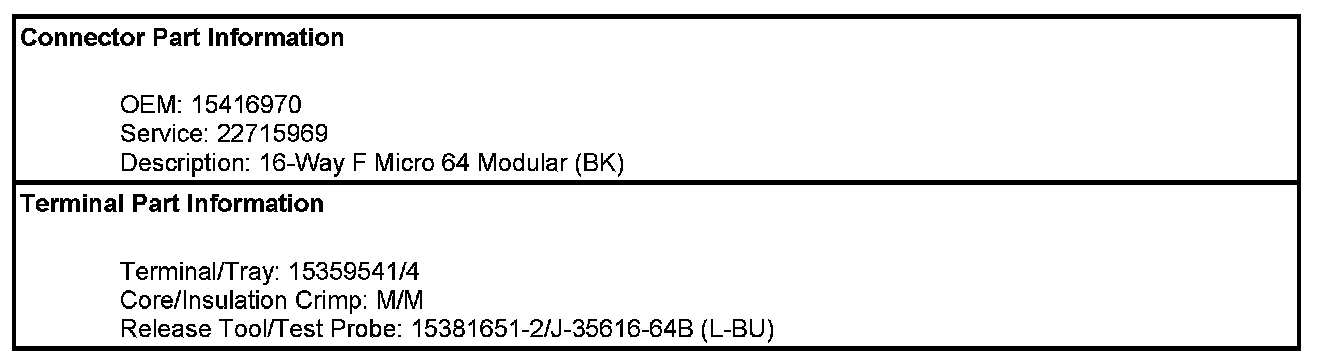

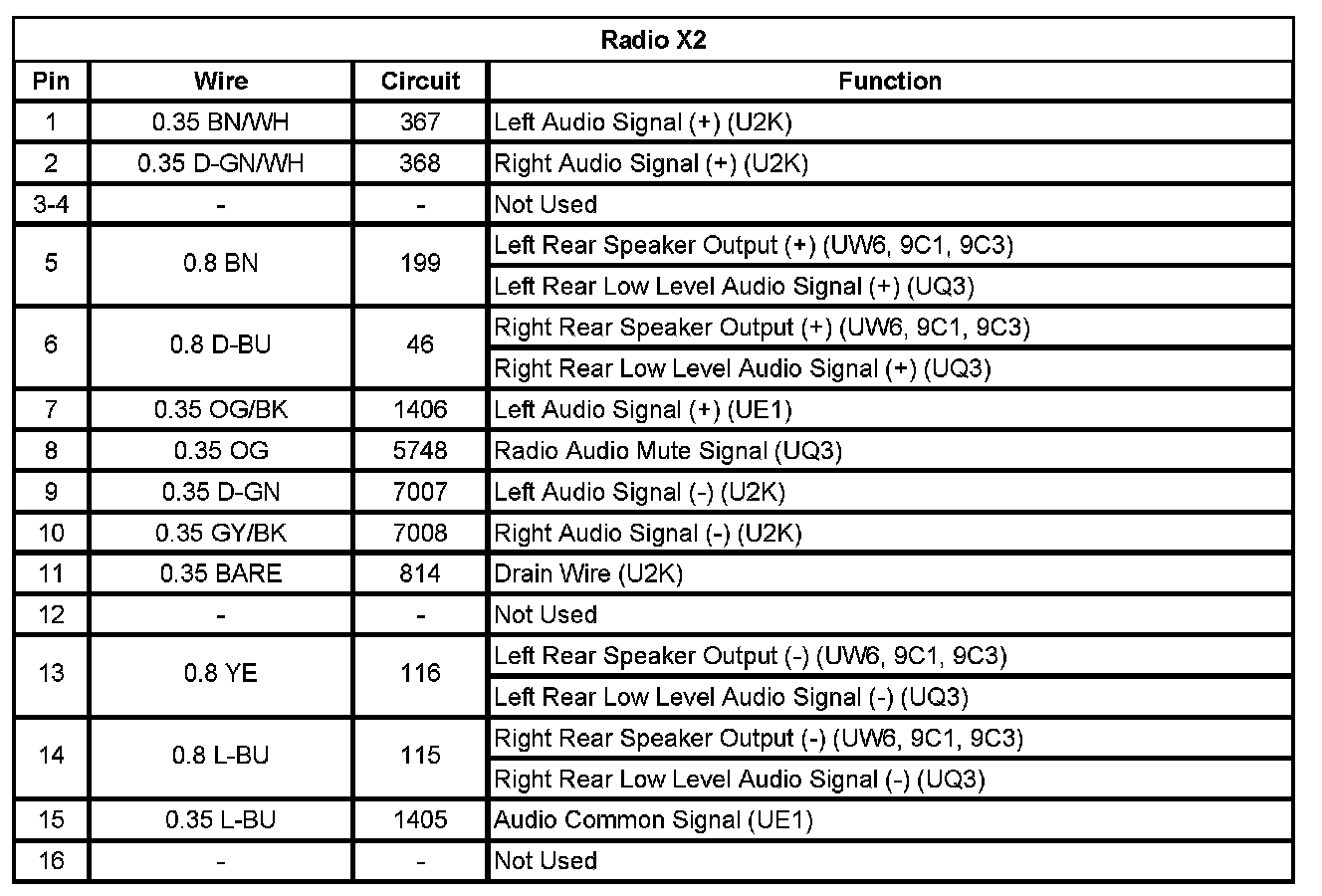

Radio X2
