Sunroof / Moonroof Panel: Adjustments

Sunroof Window Height and Opening Fit Adjustment





1. Slide the sunroof sunshade to the open position.
2. Move the sunroof glass panel to the fully closed position.

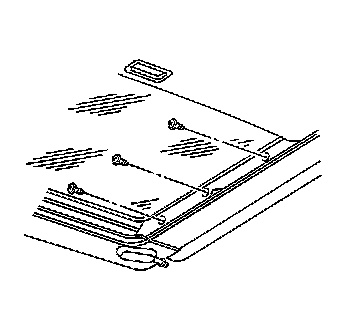

3. Loosen the sunroof glass panel screws.
4. Individually adjust the 4 corners (1) of the sunroof glass panel.

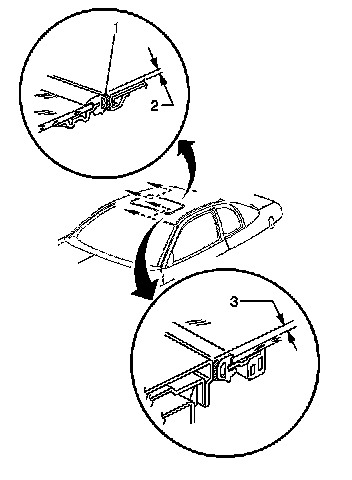

5. Adjust the front of the sunroof glass panel to 1.5 mm (0.050 in) below the top surface of the roof panel (3).
6. Adjust the rear of the sunroof glass panel to 1.5 mm (0.050 in) above the top surface of the roof panel (2).






Notice: Refer to Fastener Notice.

7. Tighten the sunroof glass panel screws.

Tighten the screws to 4 N.m (35 lb in).
