Wheel Speed Sensor: Diagrams

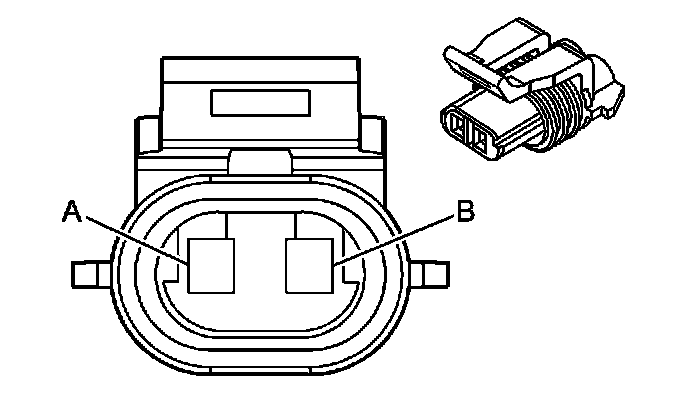

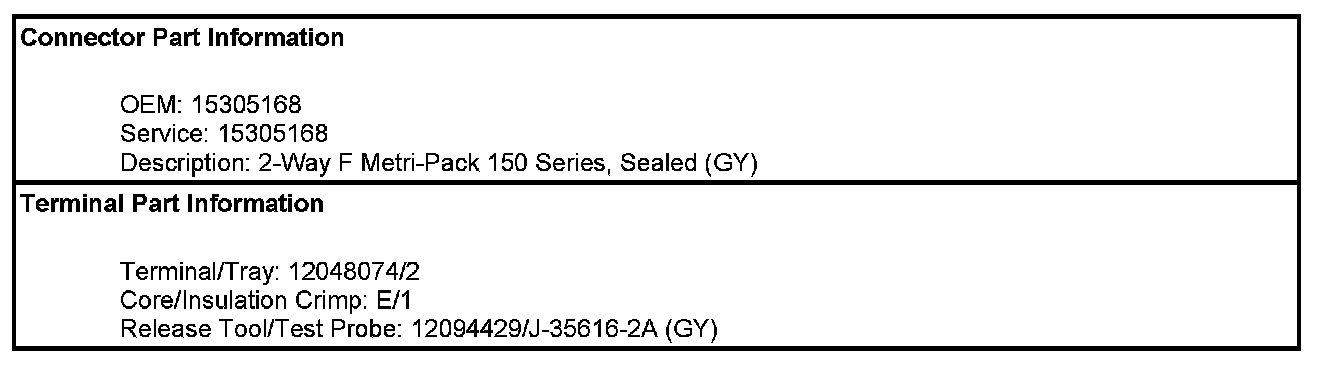

Component Connector End Views - Continued

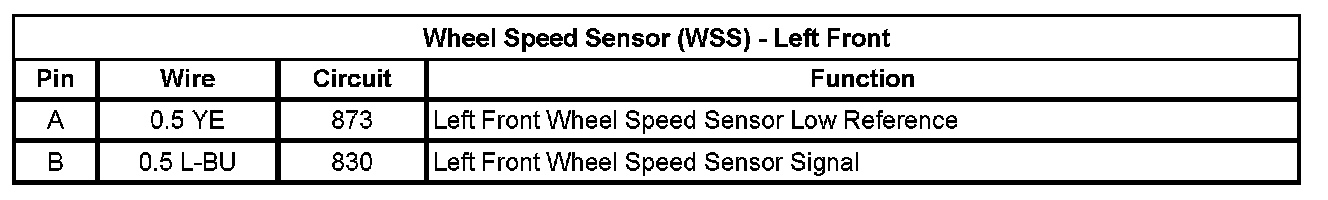

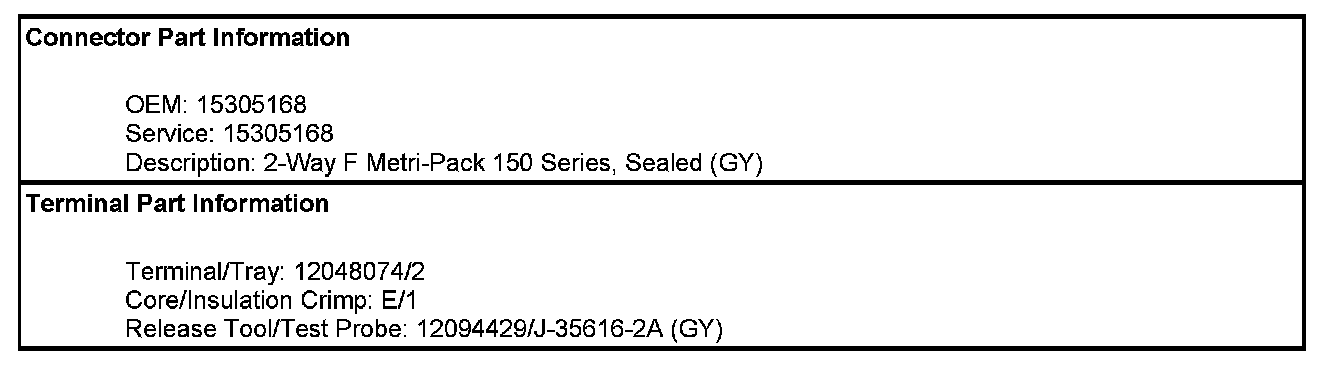

Wheel Speed Sensor (WSS) - Left Front

Reverse Lockout Solenoid:

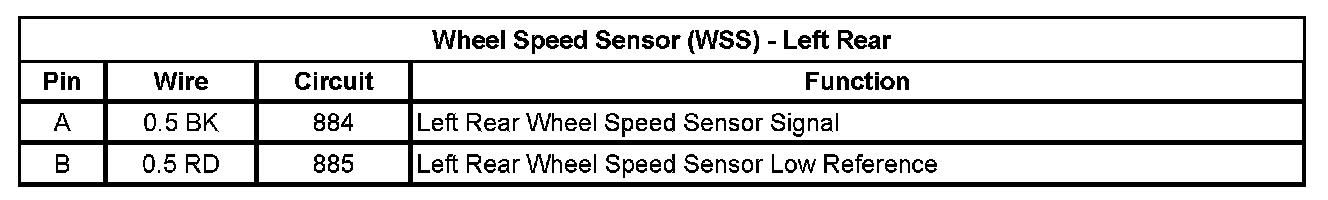

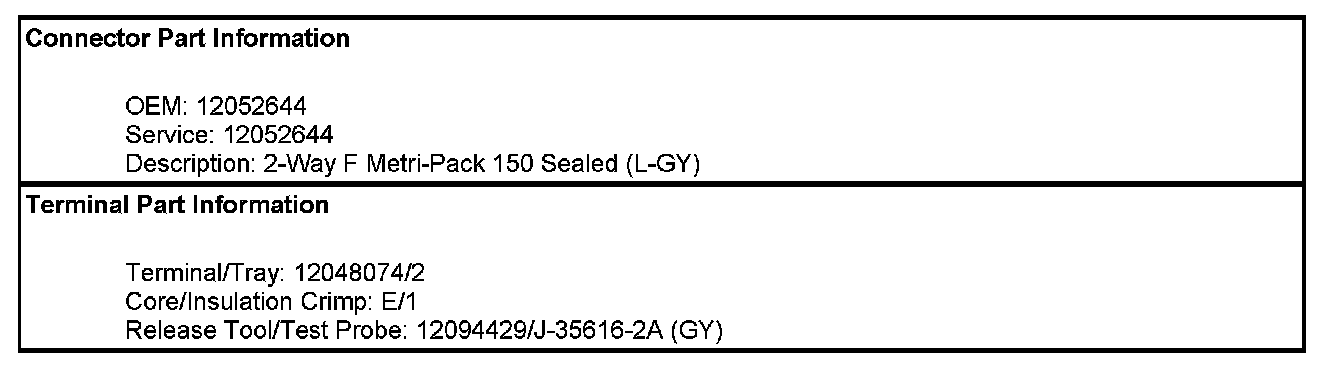

Wheel Speed Sensor (WSS) - Left Rear

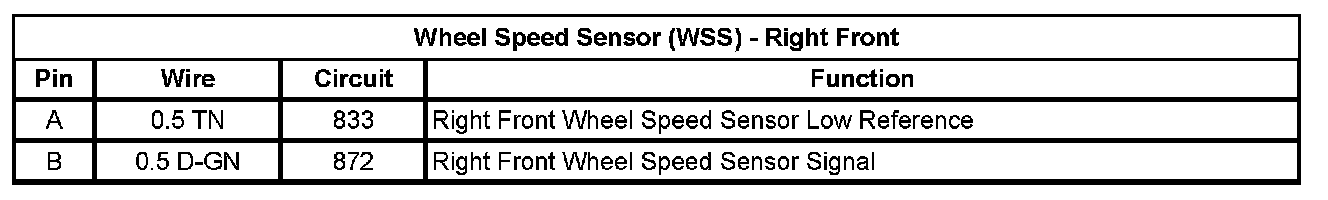

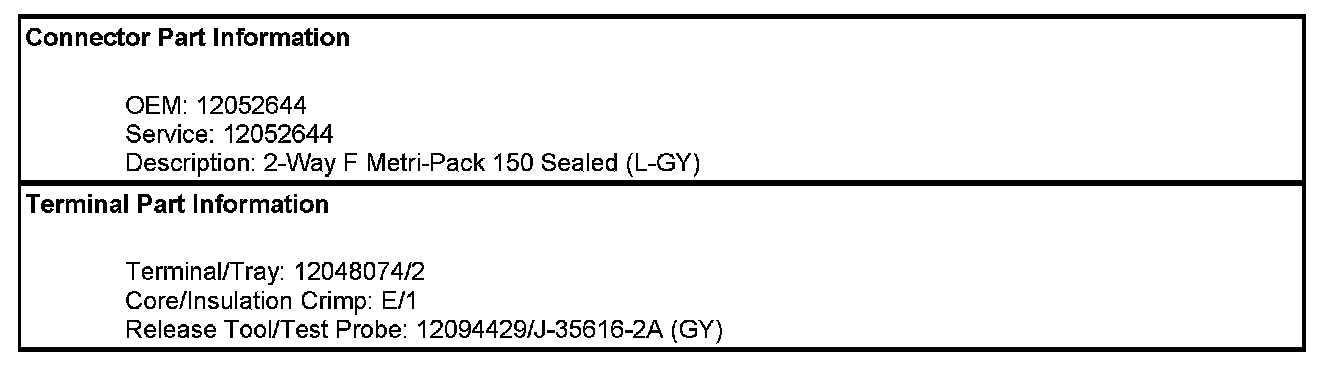

Wheel Speed Sensor (WSS) - Right Front

Reverse Lockout Solenoid:

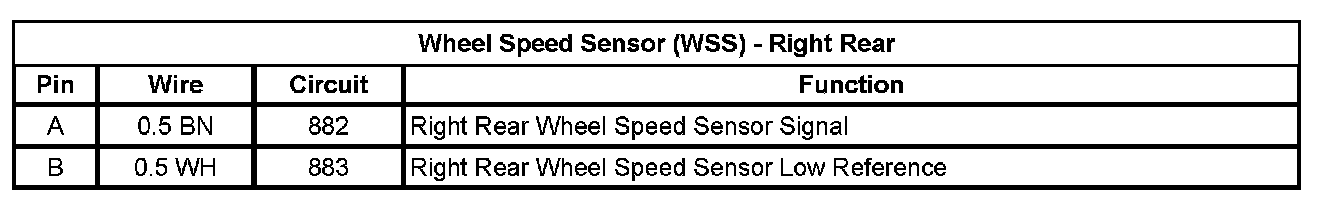

Wheel Speed Sensor (WSS) - Right Rear
