Air Bag Control Module
Air Bag Control Module

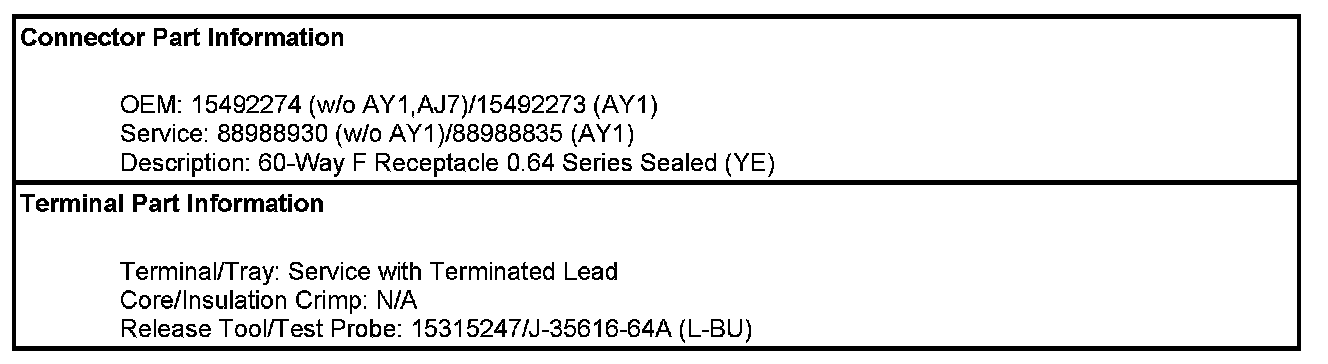

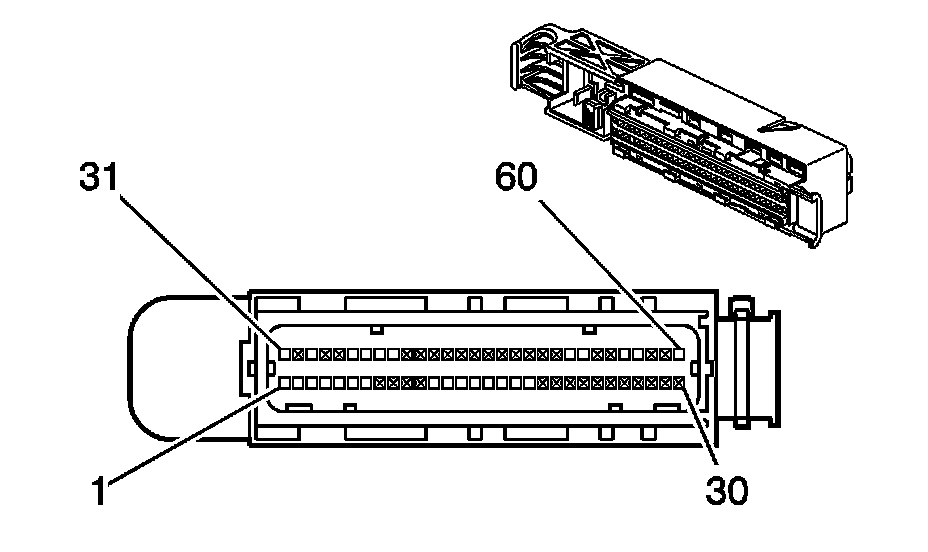

Component Connector End Views - Continued

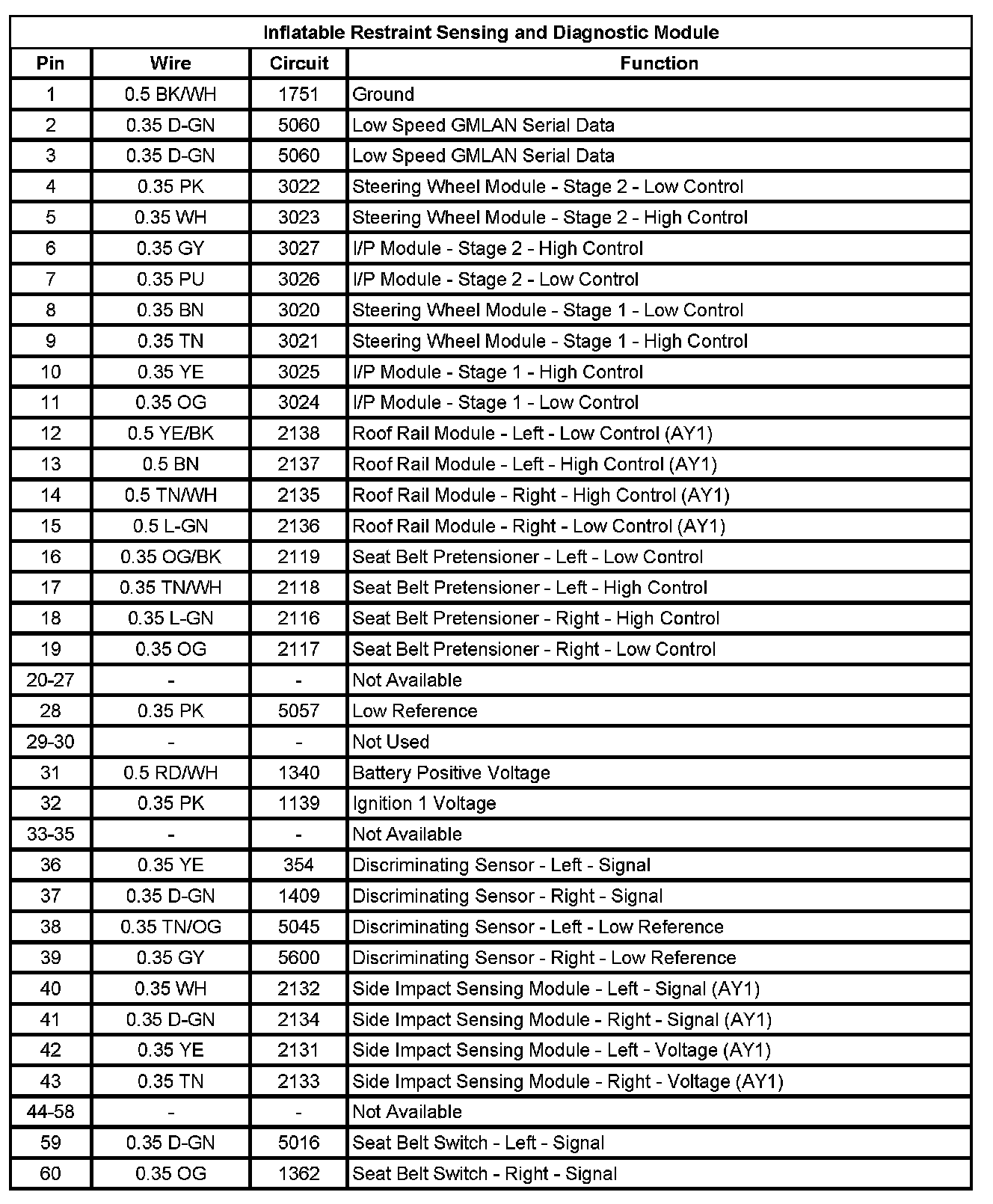

Inflatable Restraint Sensing and Diagnostic Module
