Air Injection Pump



Component Connector End Views - Continued

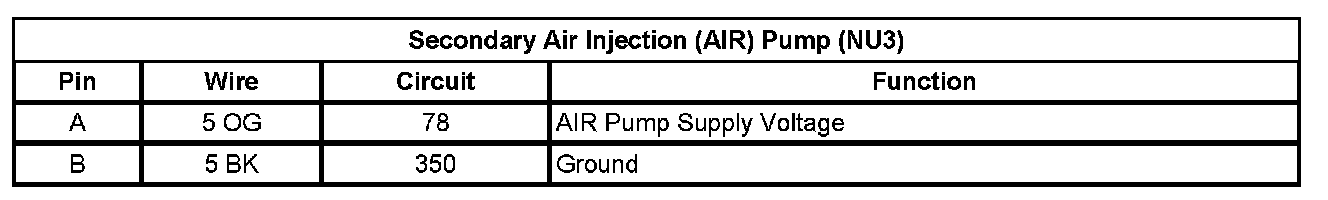

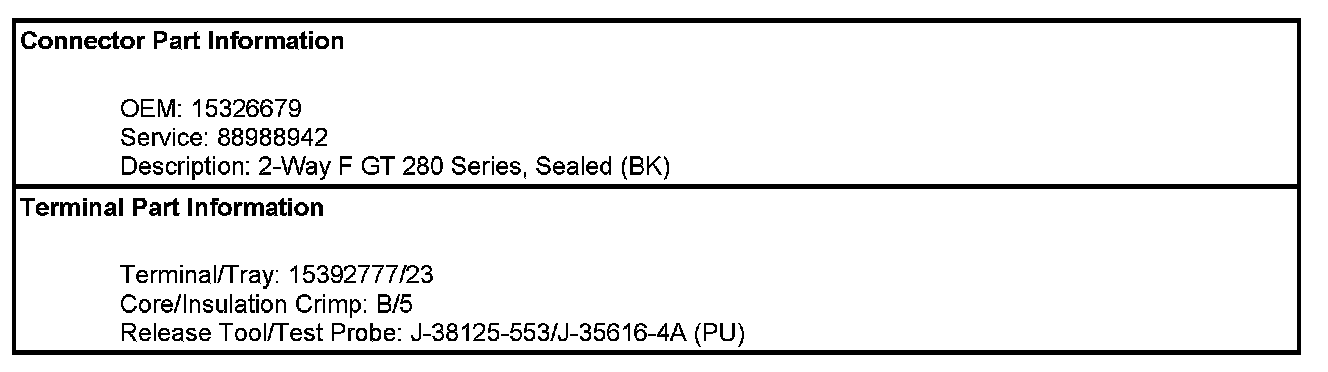

Secondary Air Injection (AIR) Pump (NU3)

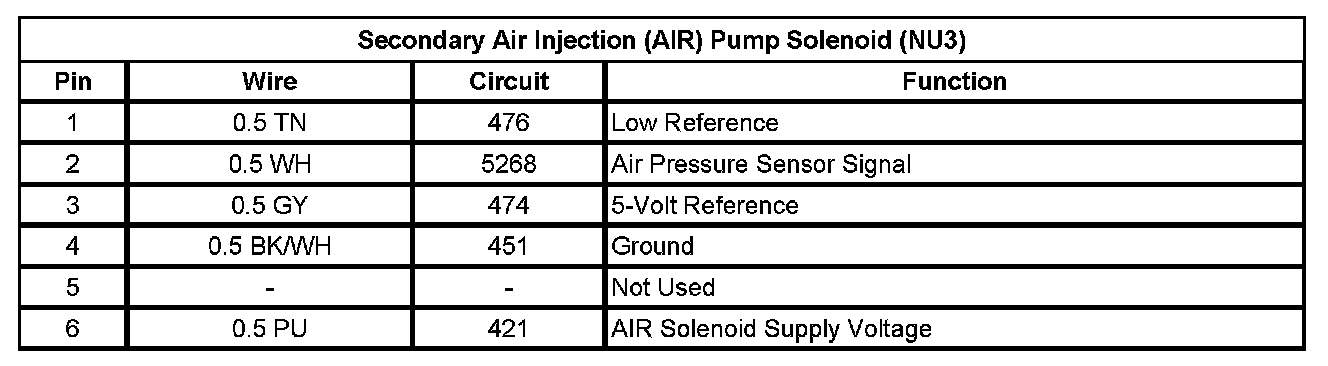

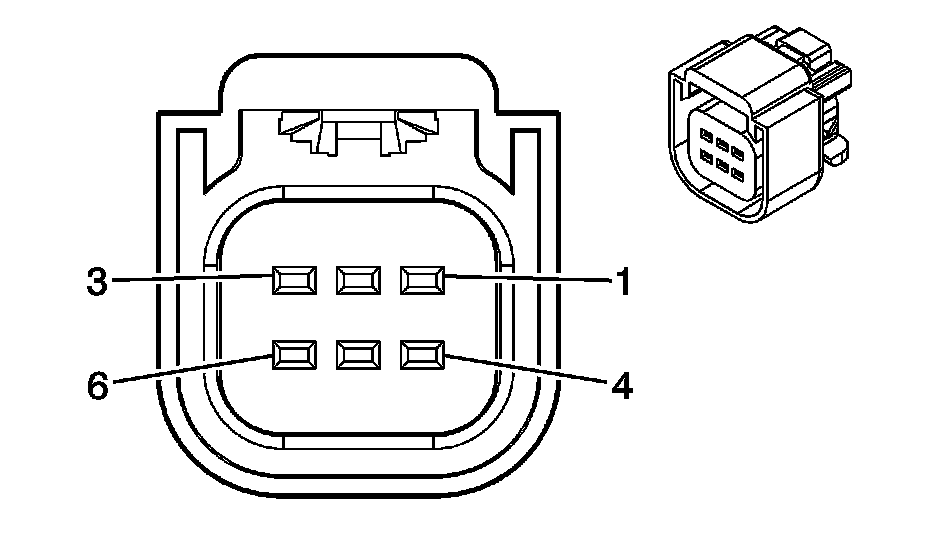

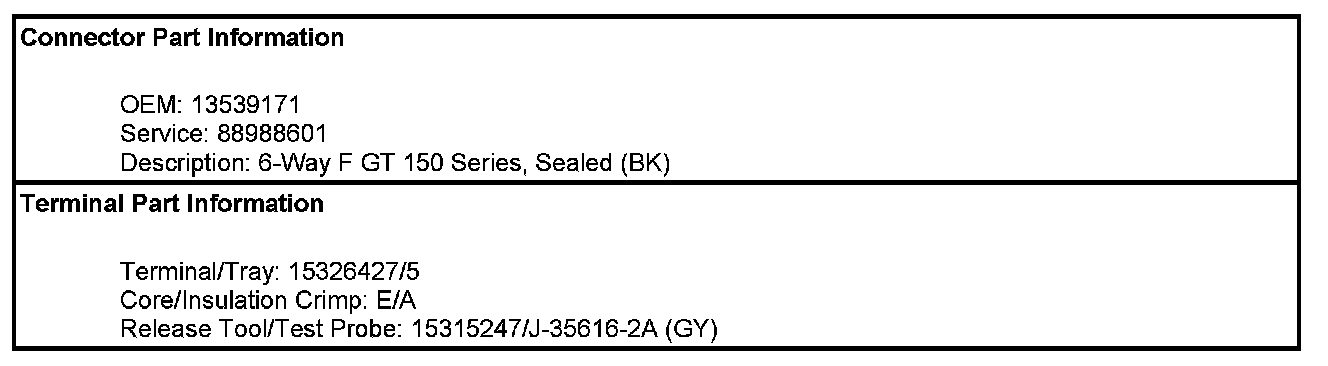

Secondary Air Injection (AIR) Pump Solenoid (NU3)
