Air Injection Pump Relay



Component Connector End Views - Continued

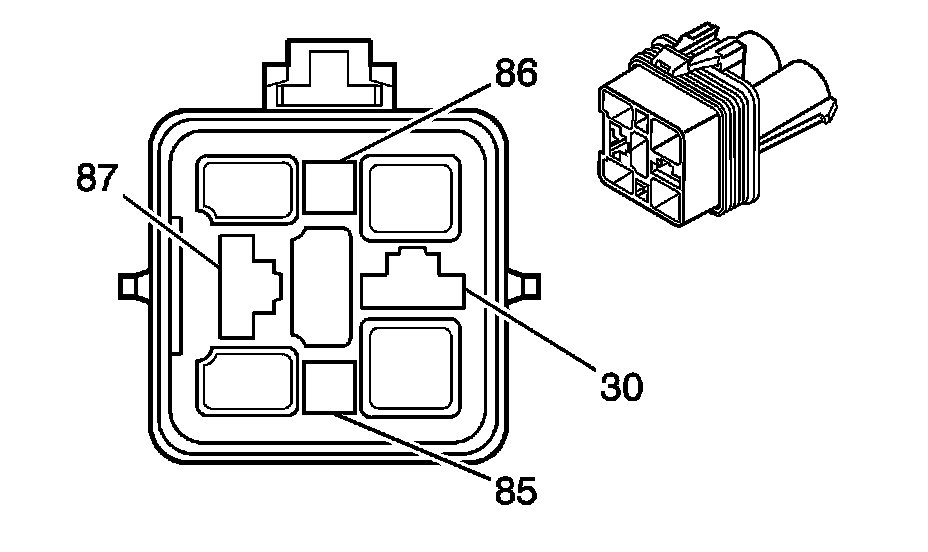

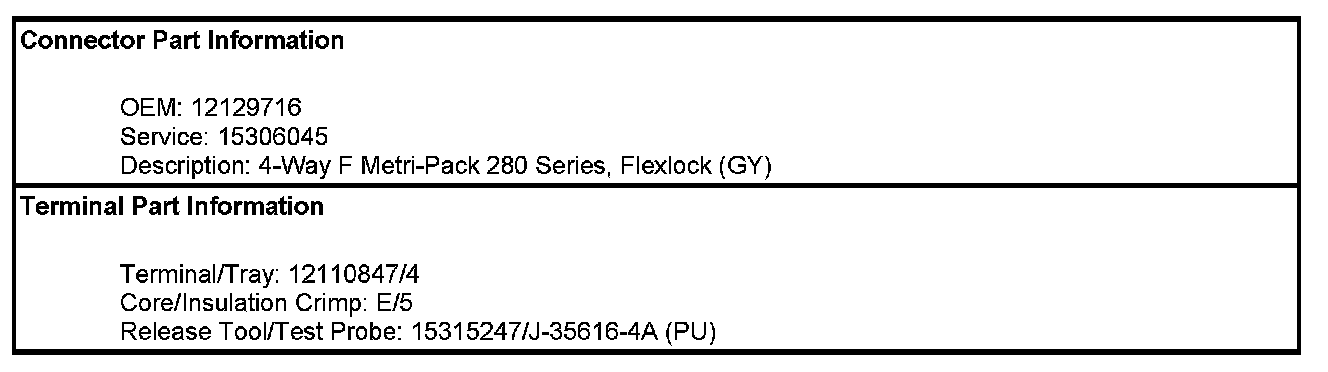

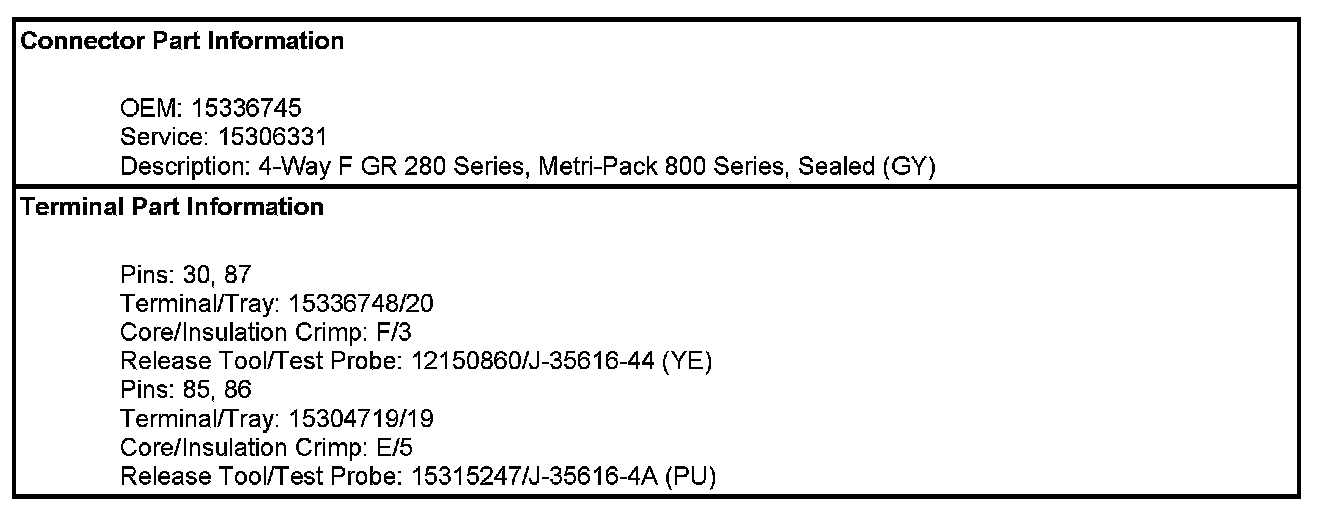

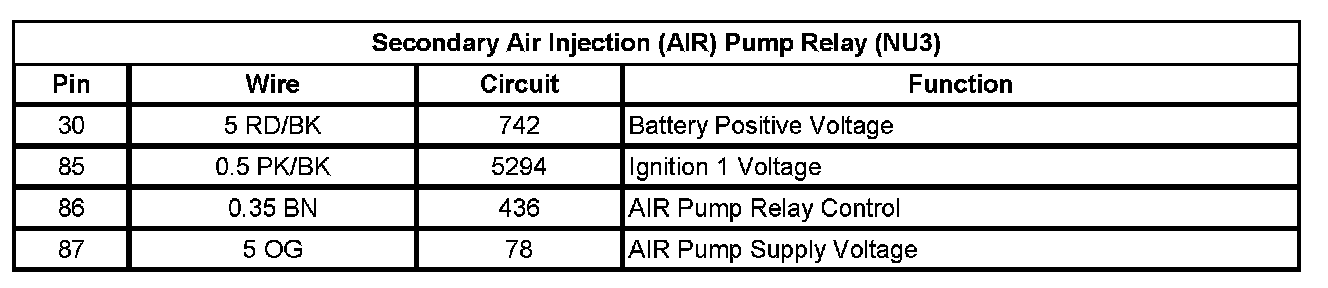

Secondary Air Injection (AIR) Pump Relay (NU3)

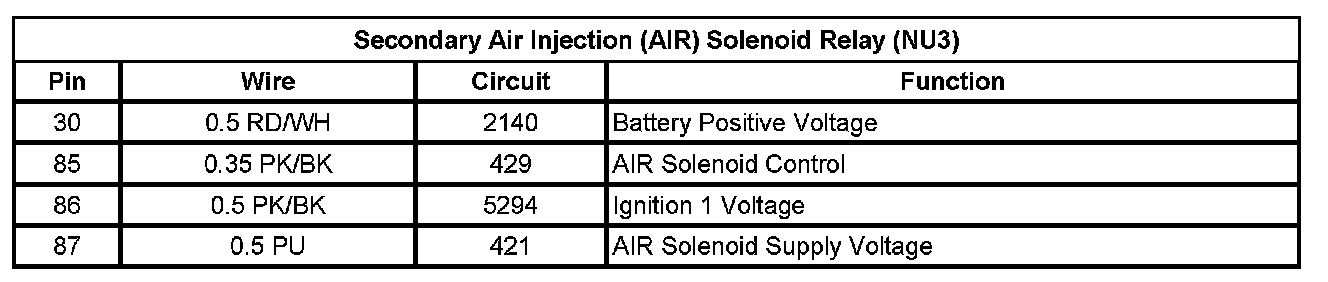

Secondary Air Injection (AIR) Solenoid Relay (NU3)
