Impala V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ambient Temperature Sensor / Switch HVAC
Ambient Temperature Sensor / Switch HVAC

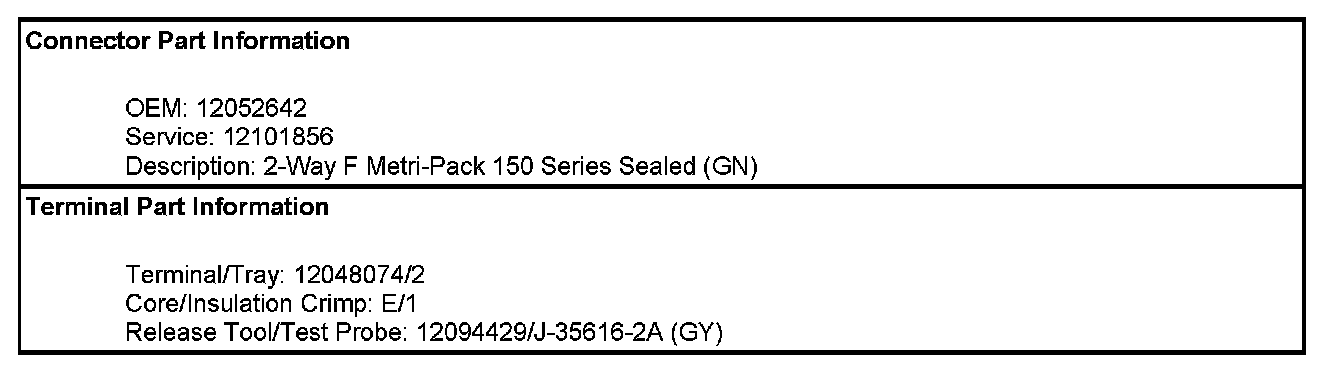

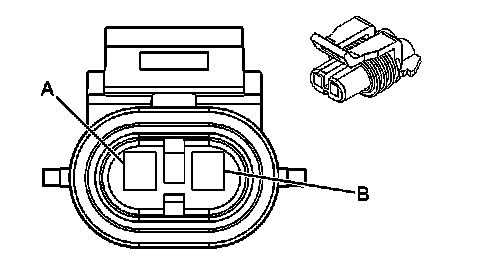

Component Connector End Views

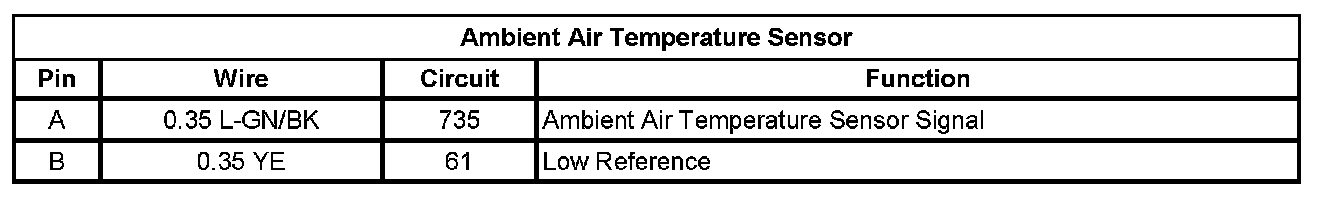

Ambient Air Temperature Sensor
