Barometric Pressure Sensor
Barometric Pressure Sensor

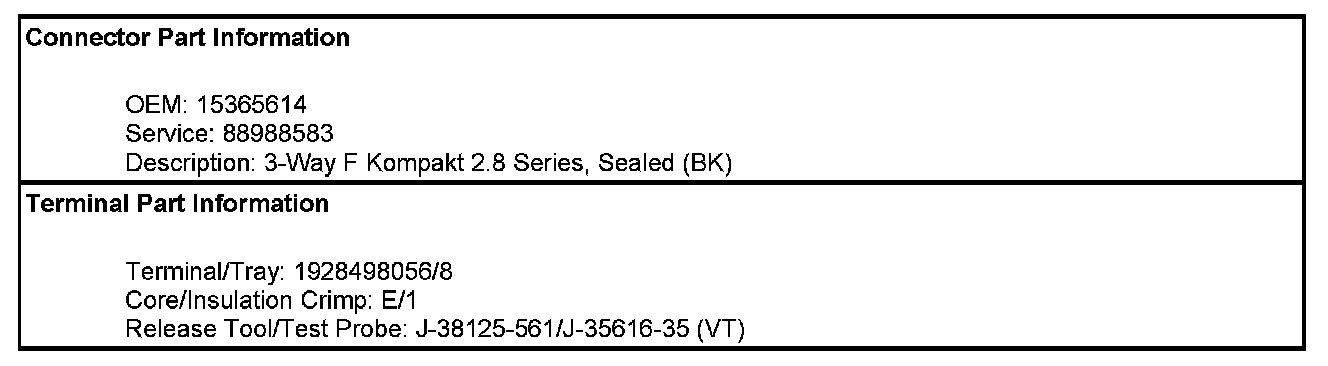

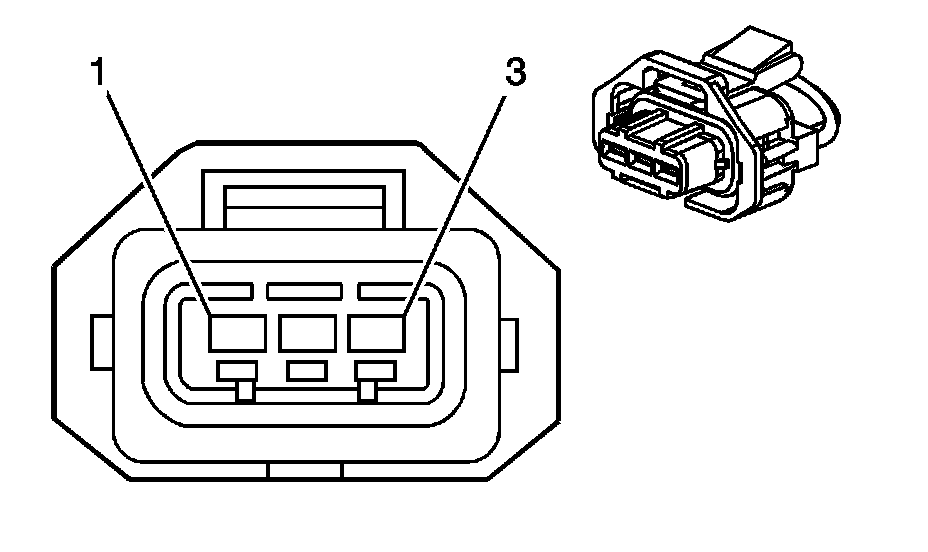

Component Connector End Views

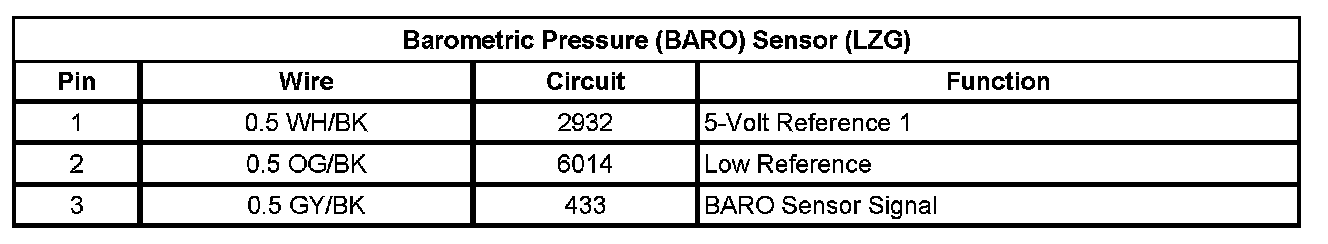

Barometric Pressure (BARO) Sensor (LZG)
