Chevrolet
>>
2008
>>
Impala V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
Blower Motor

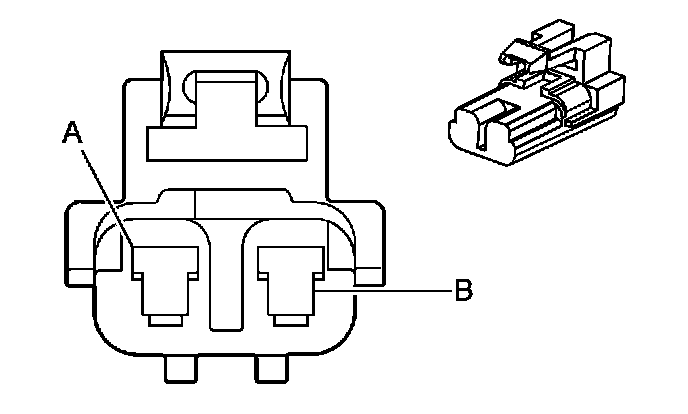

Component Connector End Views

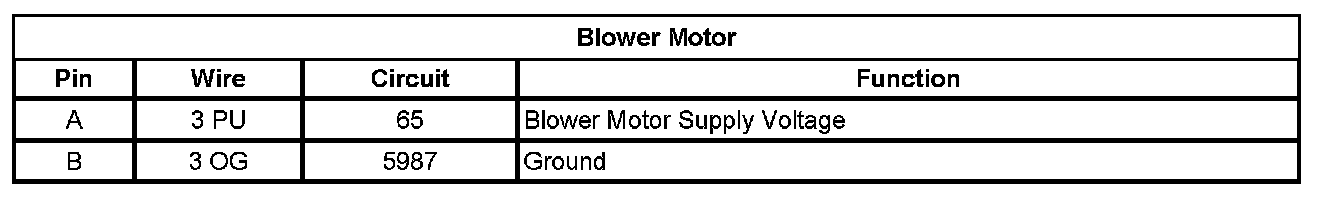

Blower Motor
