Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor

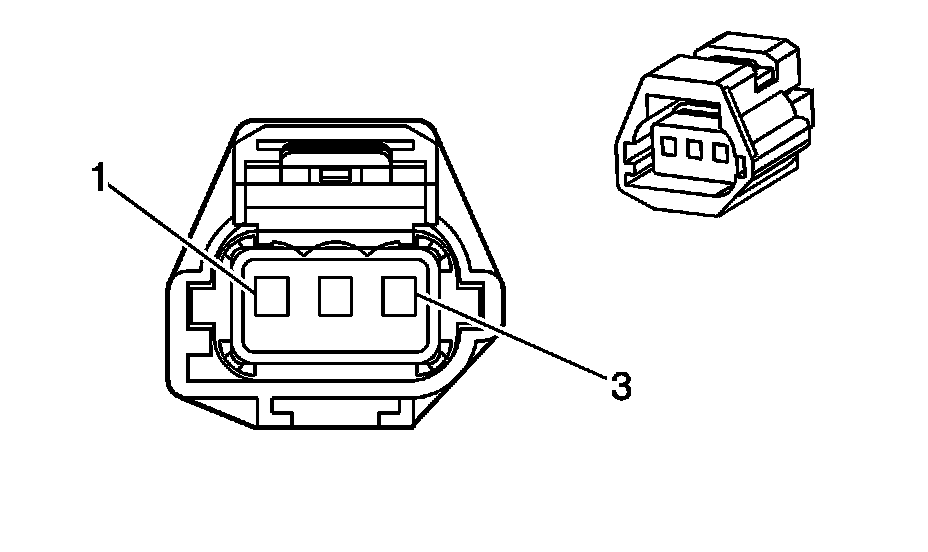

Component Connector End Views

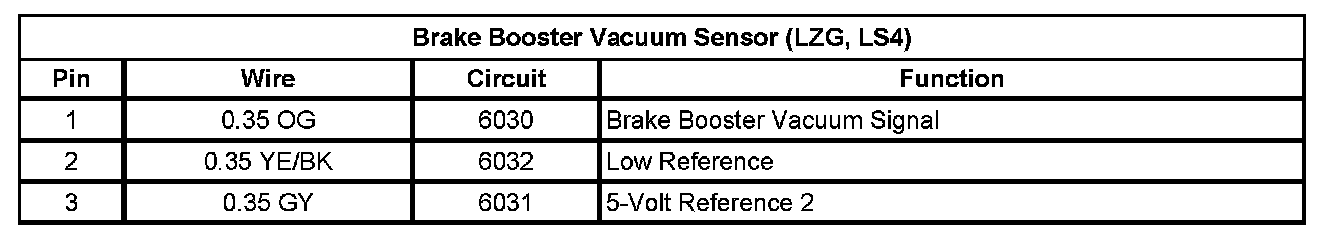

Brake Booster Vacuum Sensor
(LZG, LS4)
