Camshaft Position Sensor
Camshaft Position Sensor

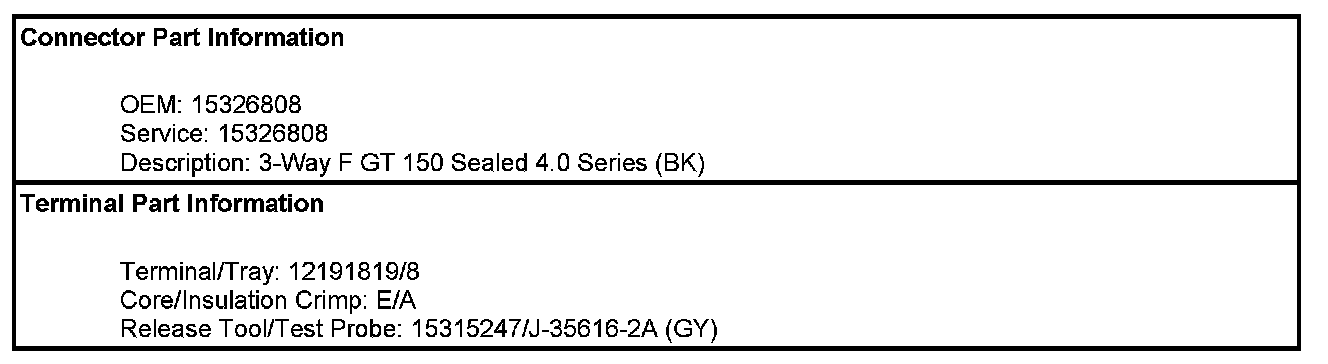

Component Connector End Views

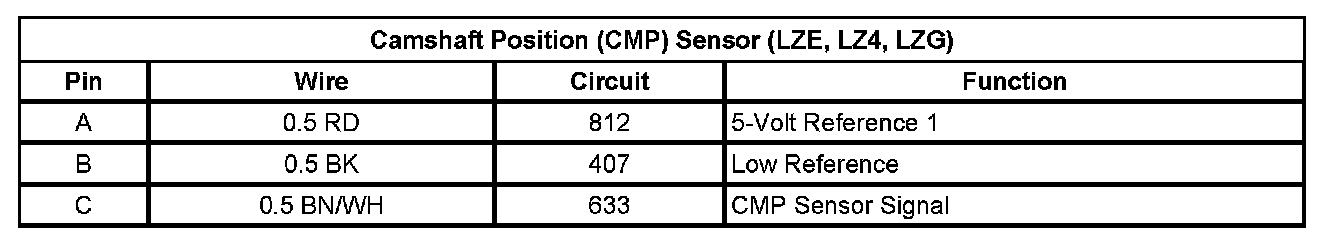

Camshaft Position (CMP) Sensor (LZE, LZ4, LZG)
