X278
X278

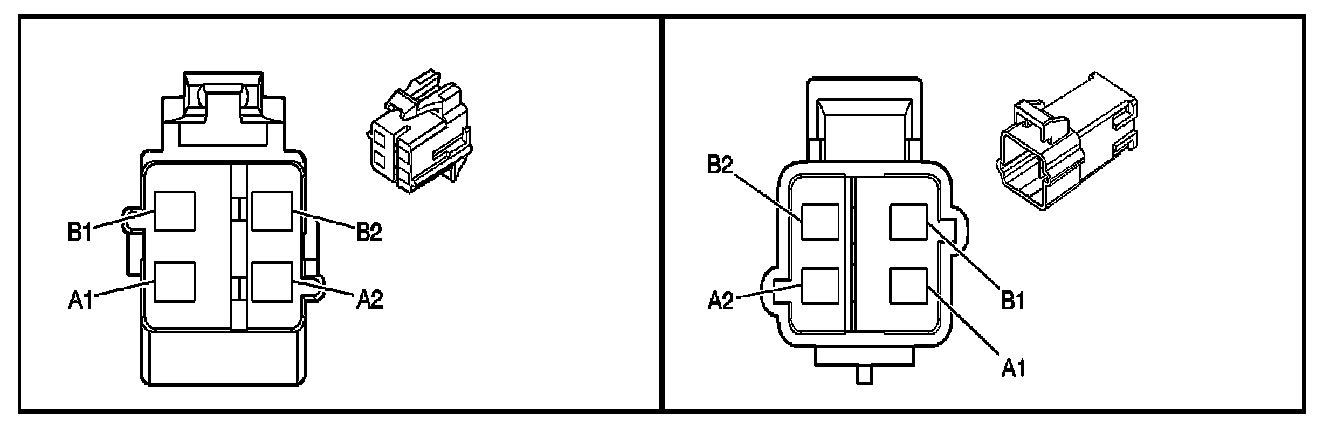

Inline Harness Connector End Views

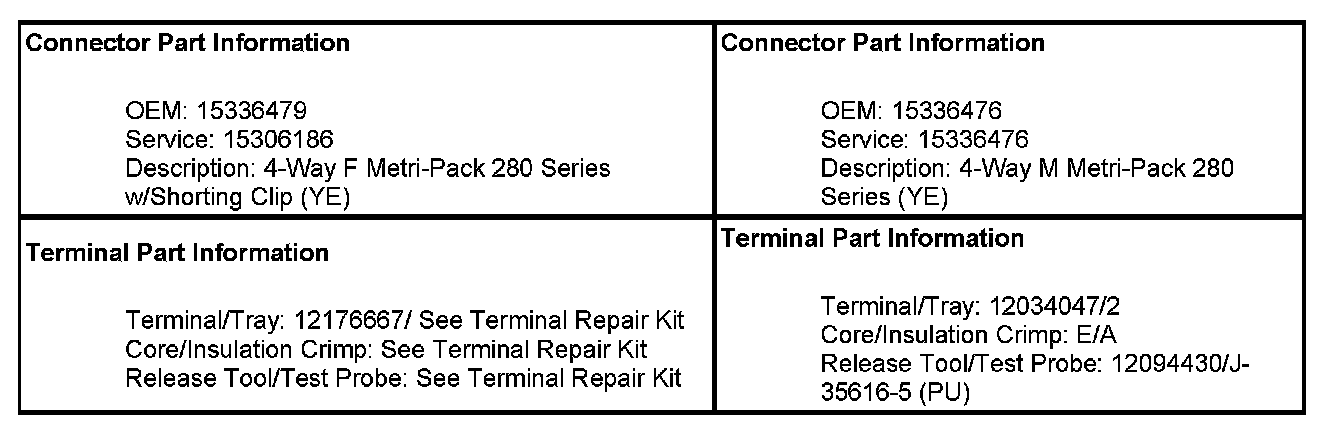

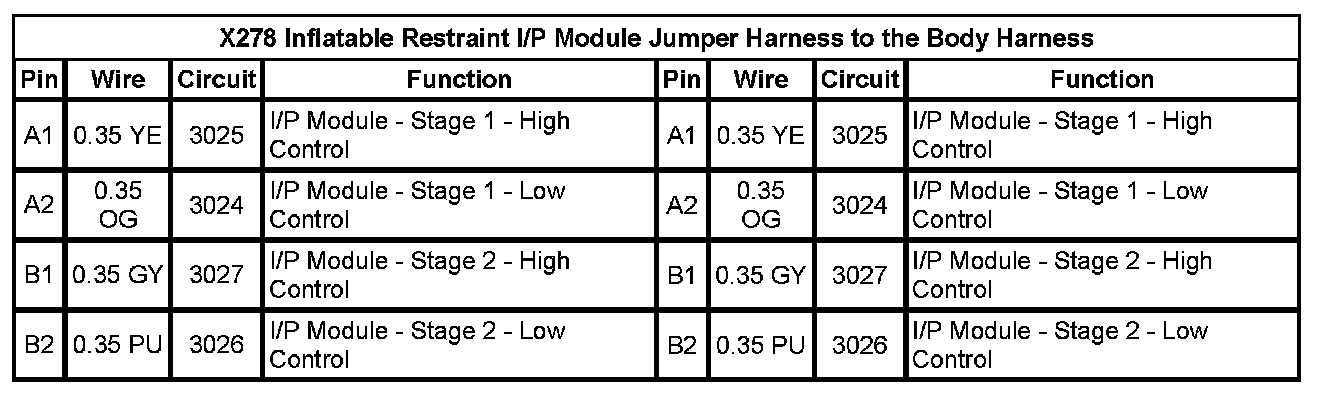

X278 Inflatable Restraint I/P Module Jumper Harness to the Body Harness
