X297

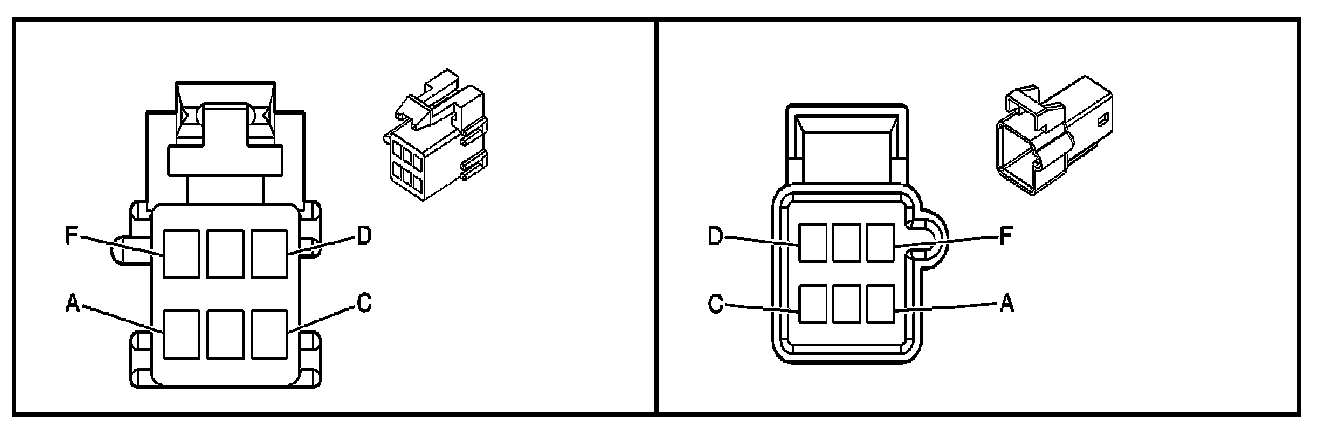

Inline Harness Connector End Views

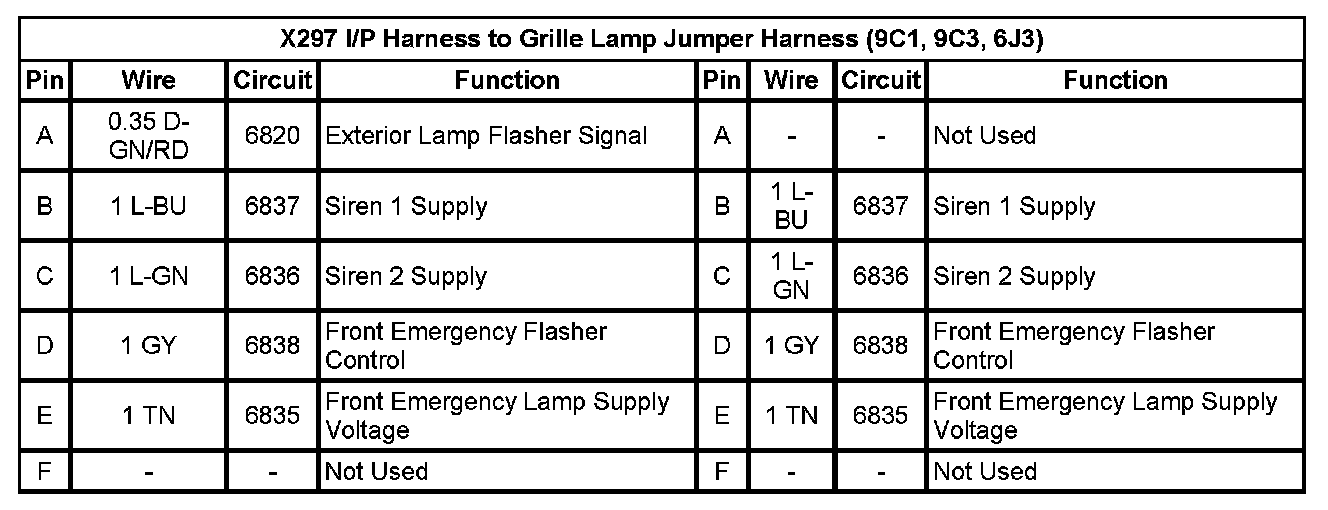

X297 I/P Harness to Grille Lamp Jumper Harness (9C1, 9C3, 6J3)
