Control Assembly, HVAC
Control Assembly, HVAC
Component Connector End Views - Continued

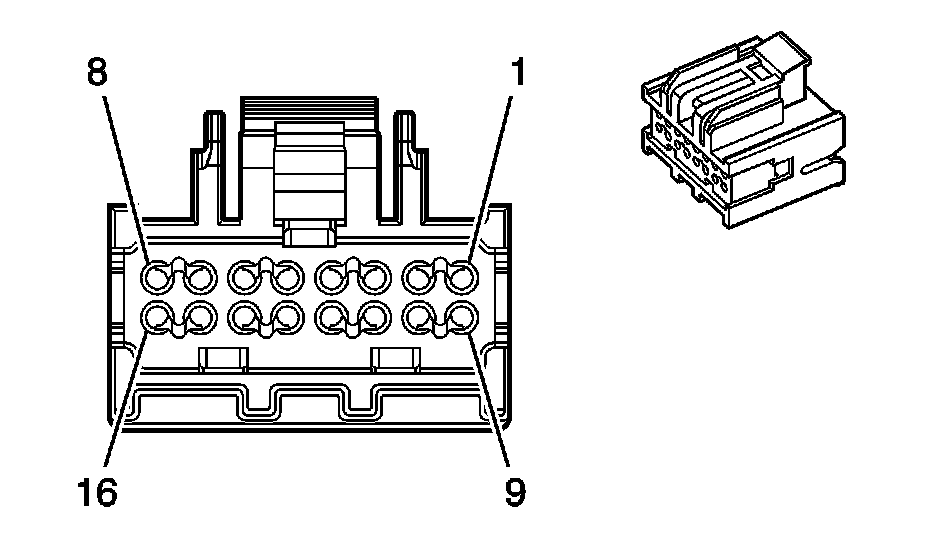

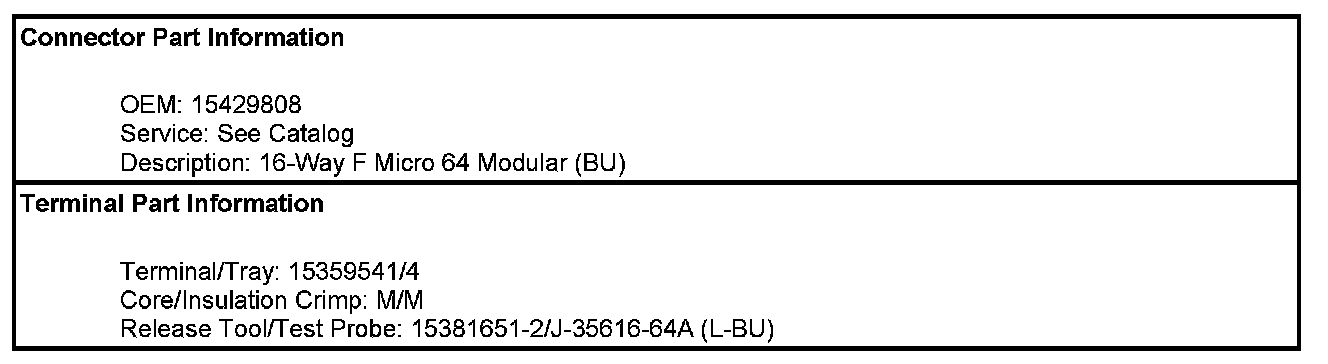

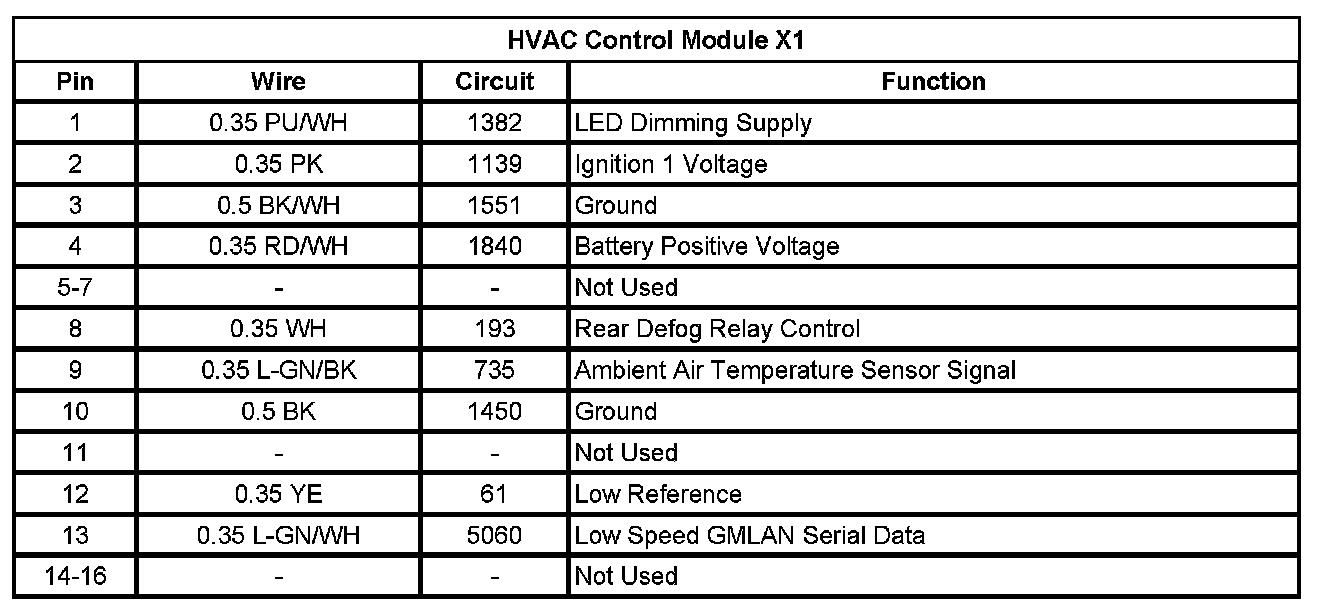

HVAC Control Module X1

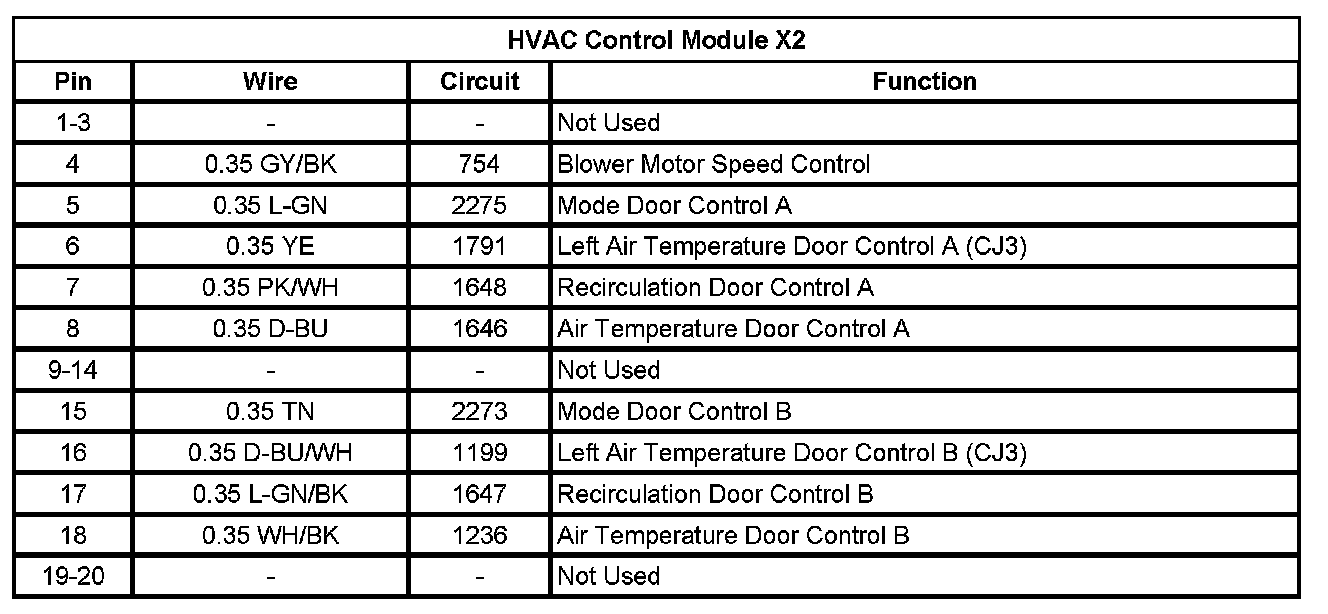

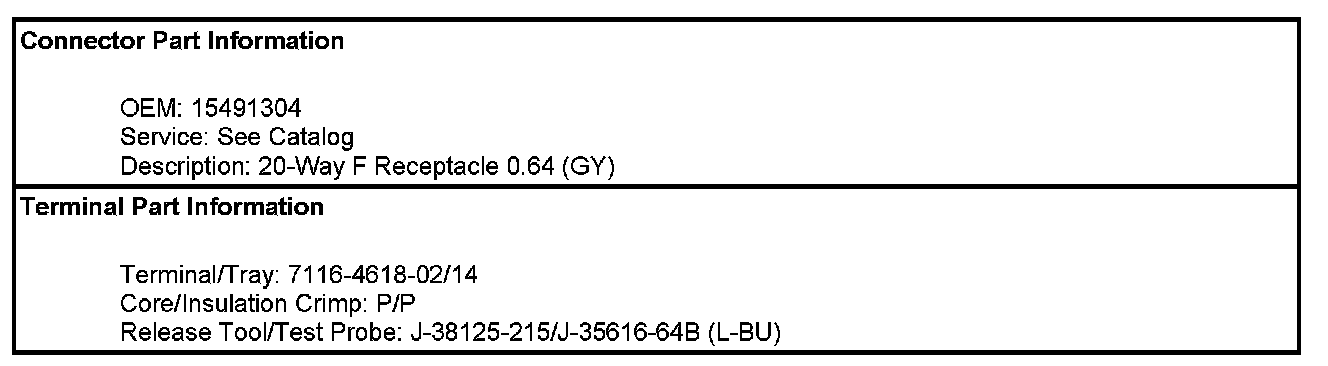

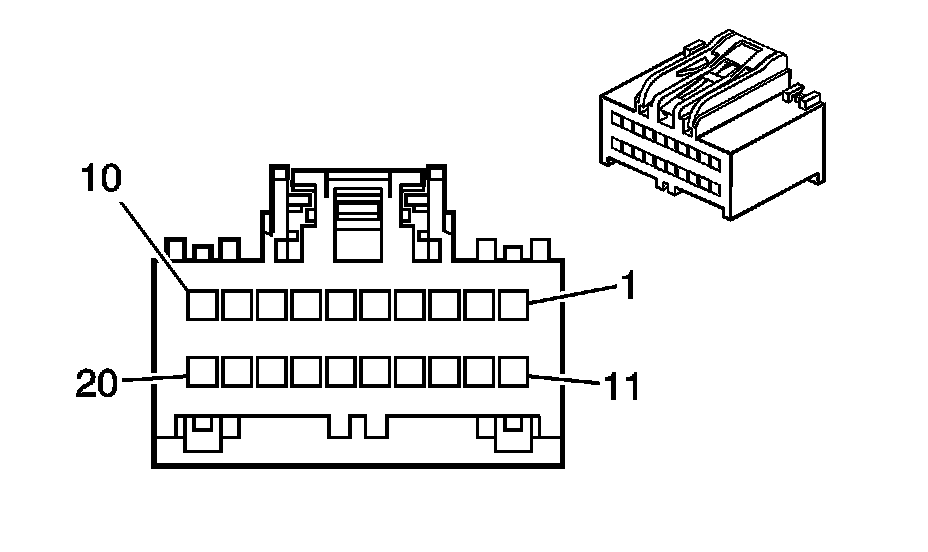

HVAC Control Module X2
