Coolant Temperature Sensor/Switch (For Computer)
Coolant Temperature Sensor/Switch (For Computer)

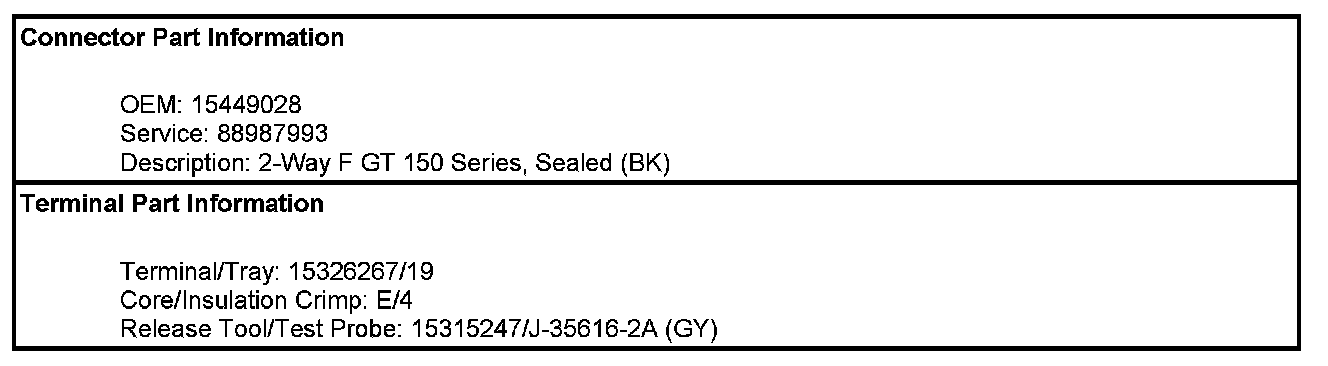

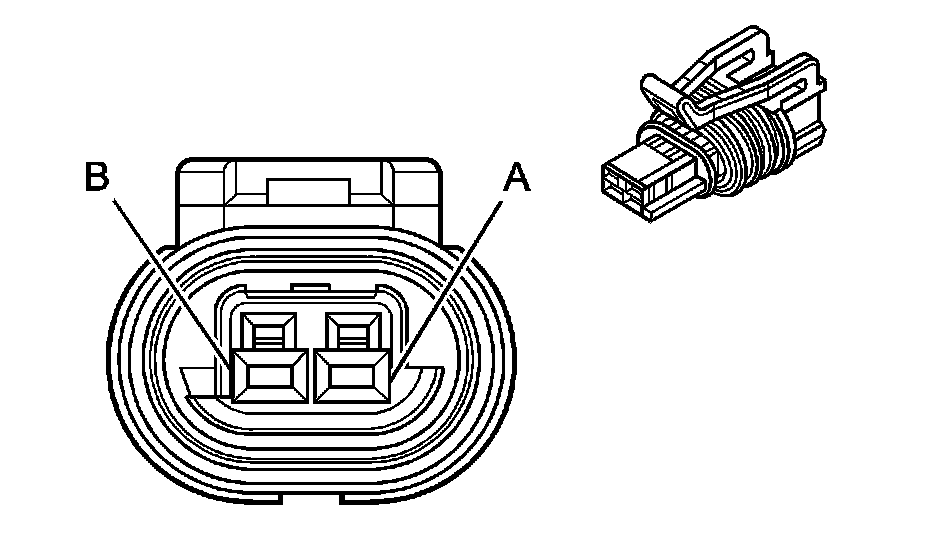

Component Connector End Views

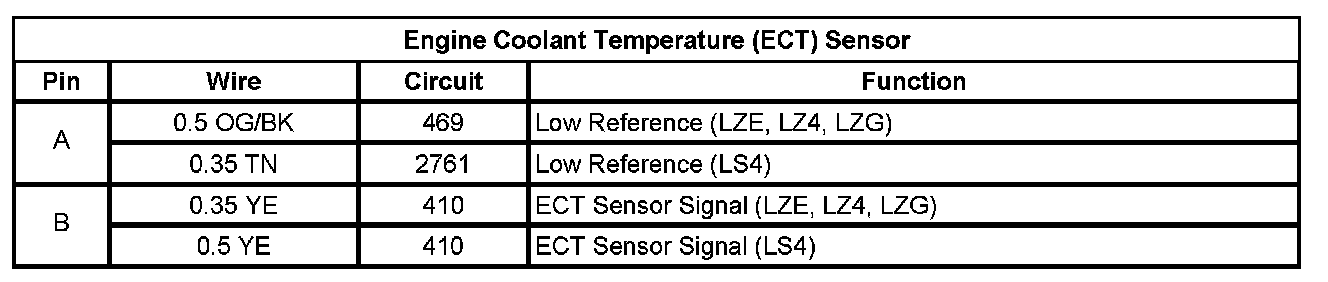

Engine Coolant Temperature (ECT) Sensor
