Courtesy Lamp



Component Connector End Views - Continued

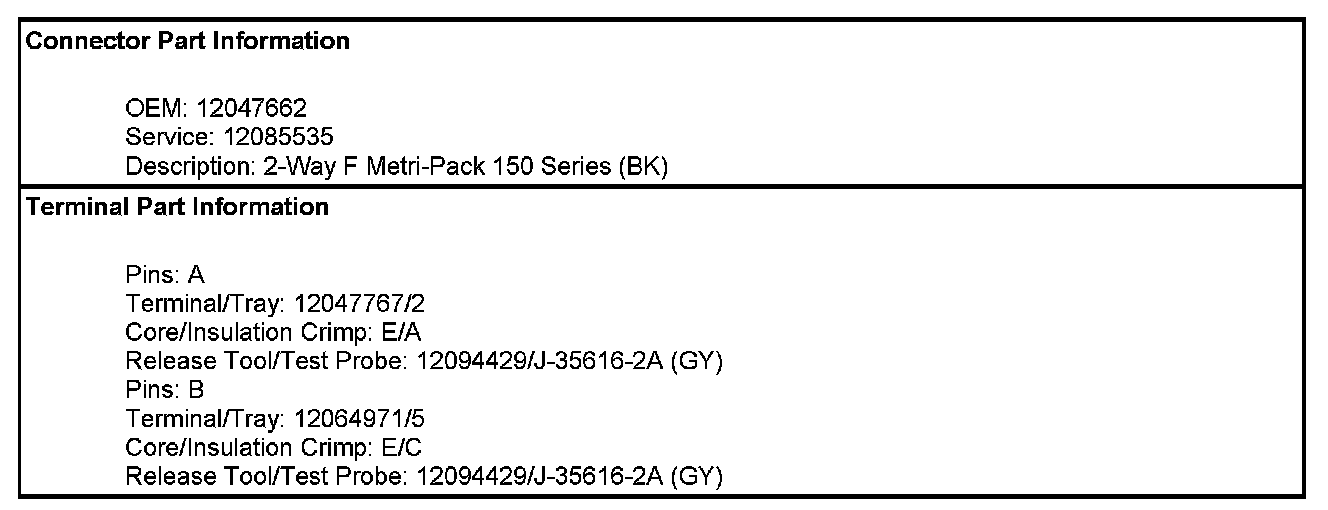

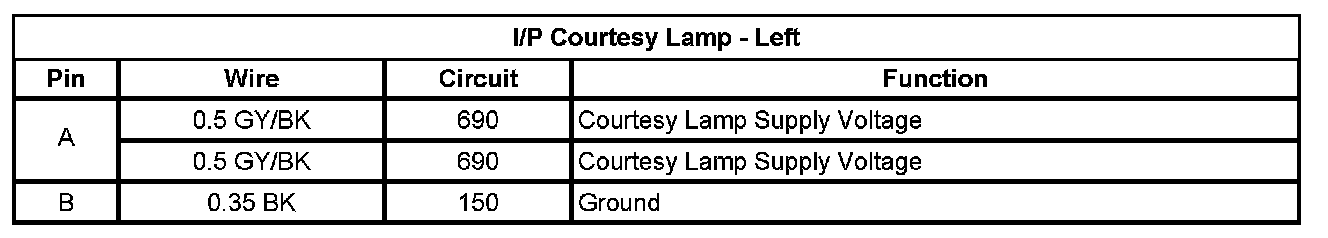

I/P Courtesy Lamp - Left

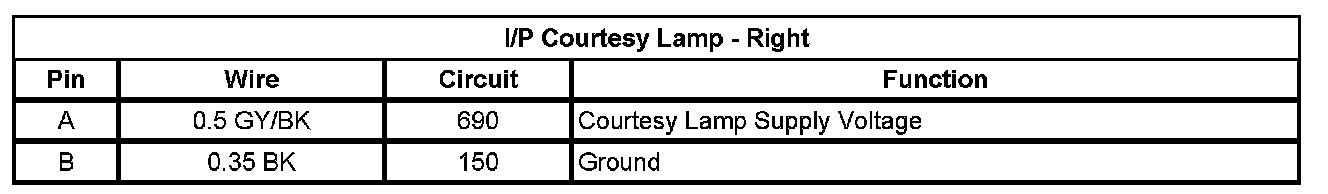

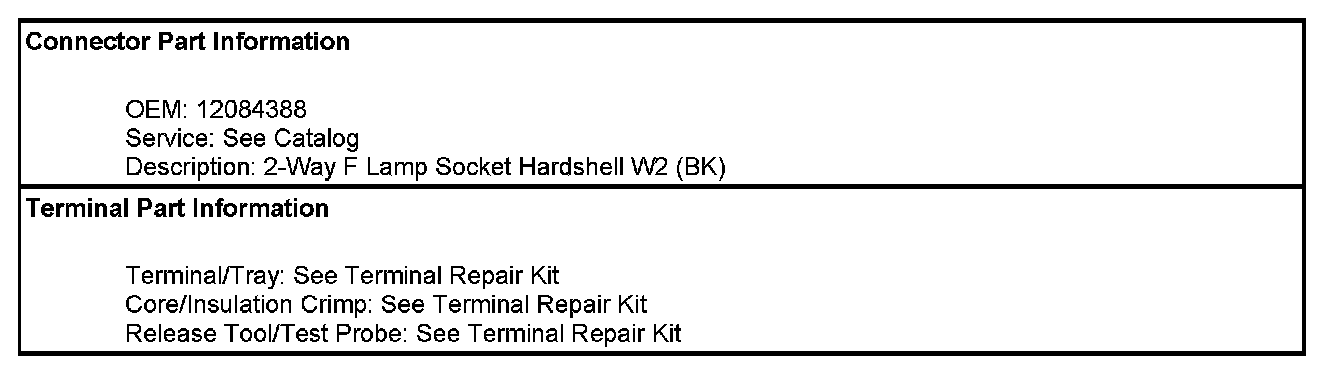

I/P Courtesy Lamp - Right

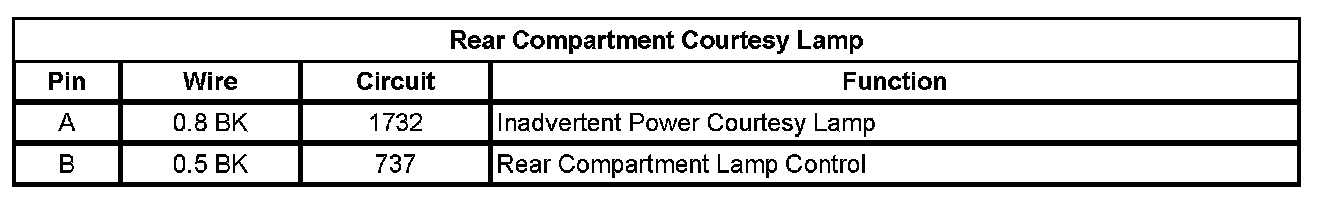

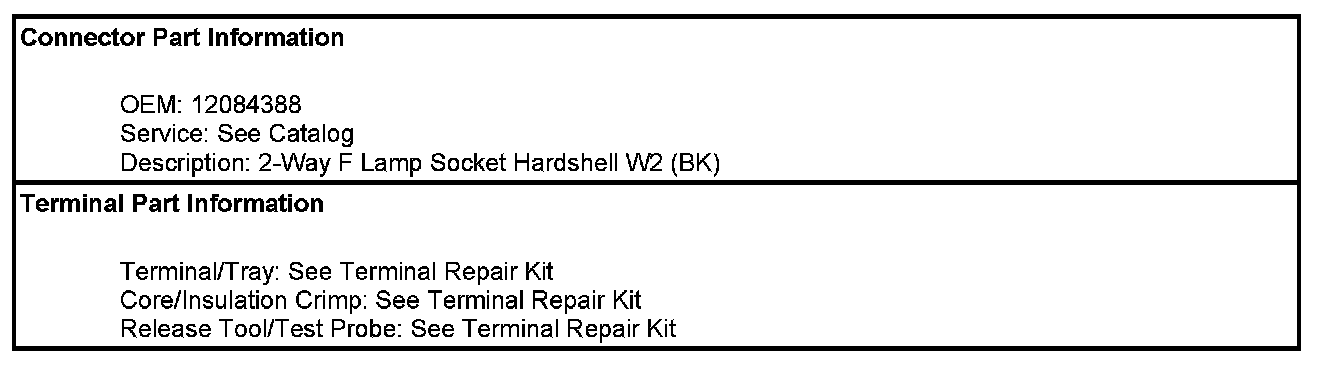

Rear Compartment Courtesy Lamp
