Crankshaft Position Sensor

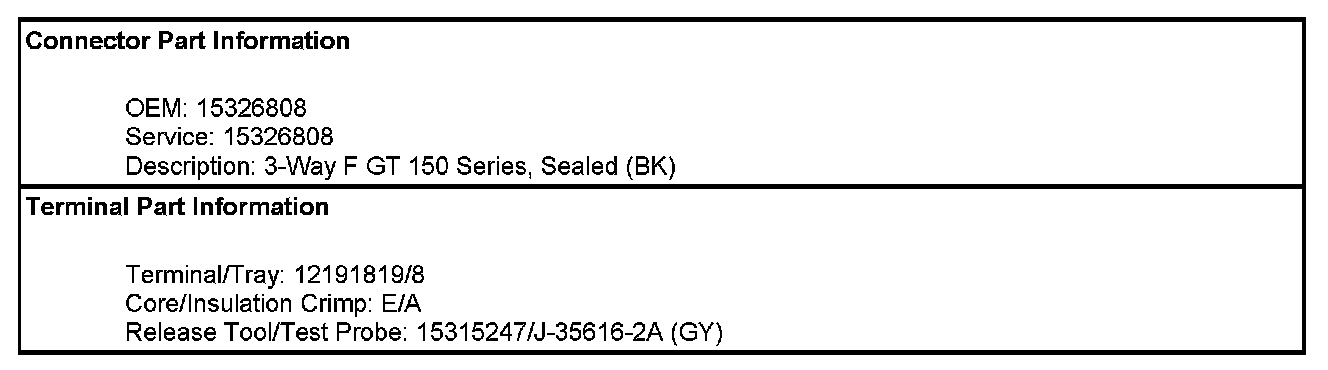

Component Connector End Views

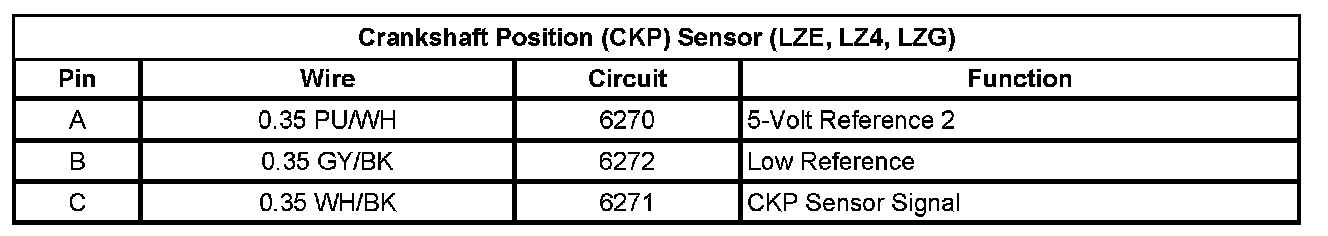

Crankshaft Position (CKP) Sensor (LZE, LZ4, LZG)
