System Diagram



Component Connector End Views

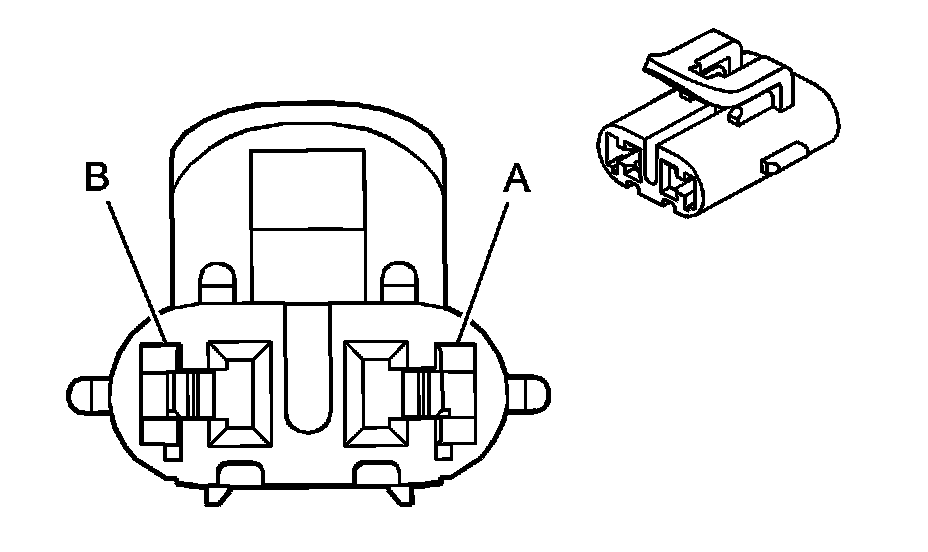

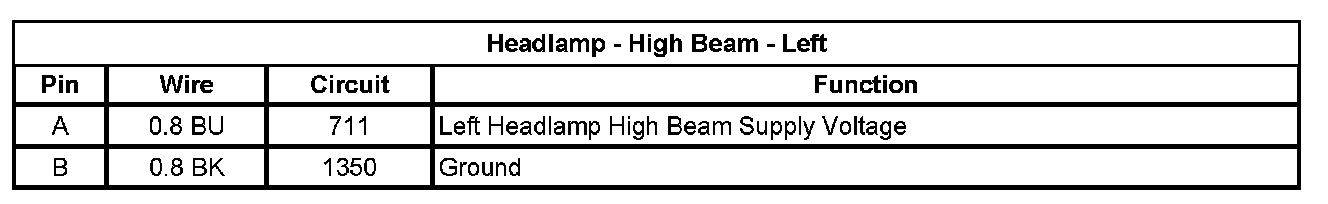

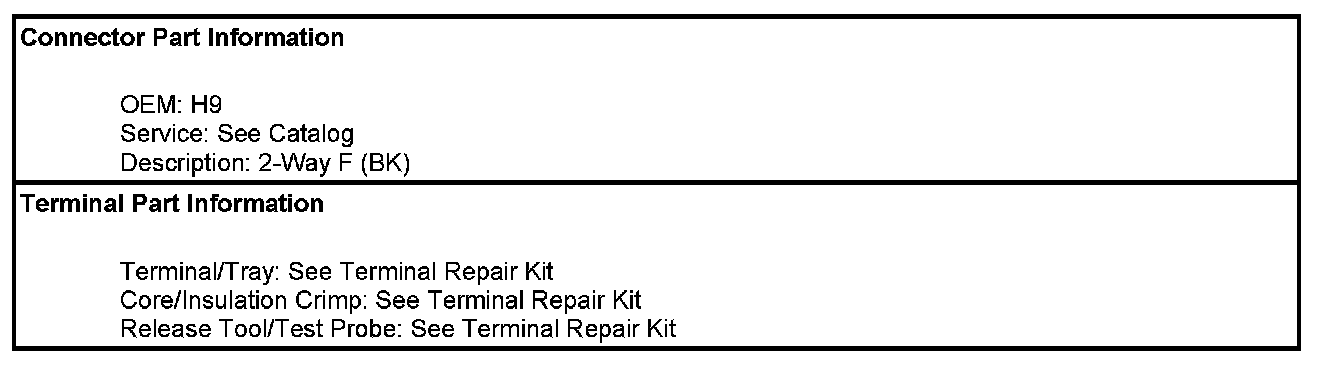

Headlamp - High Beam - Left

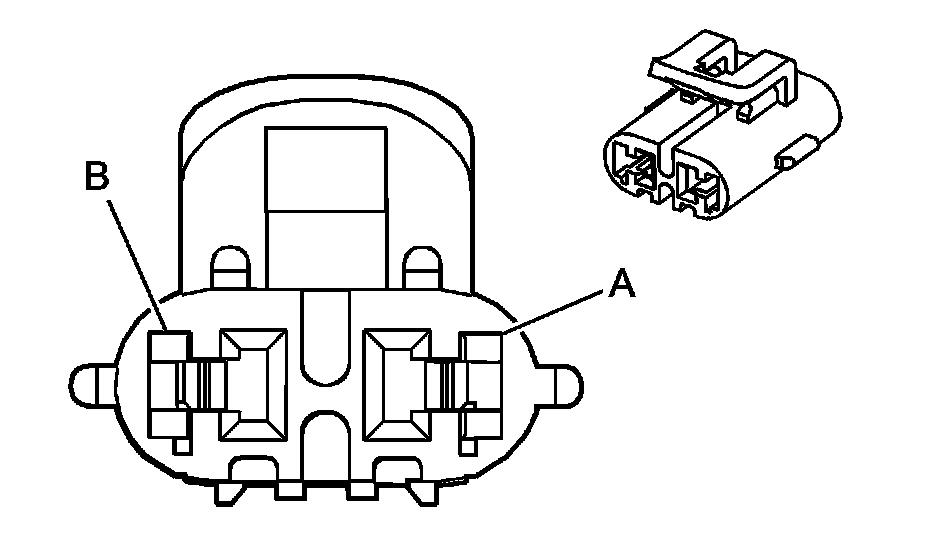

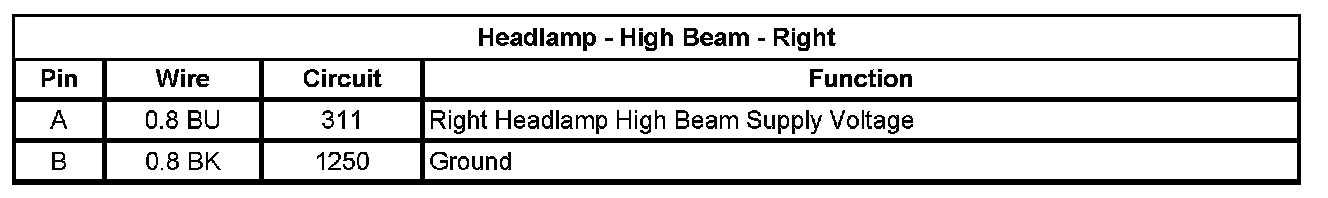

Headlamp - High Beam - Right

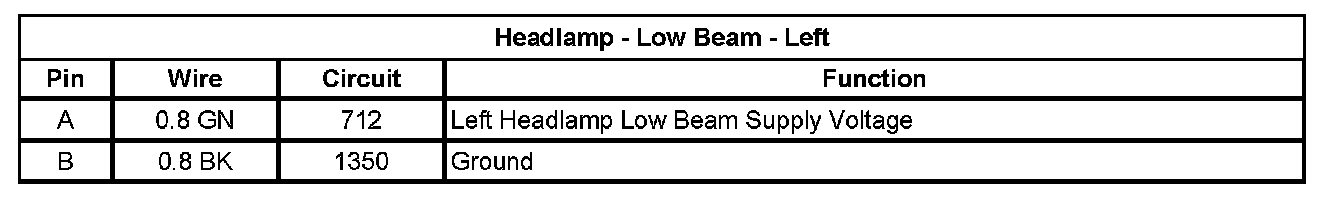

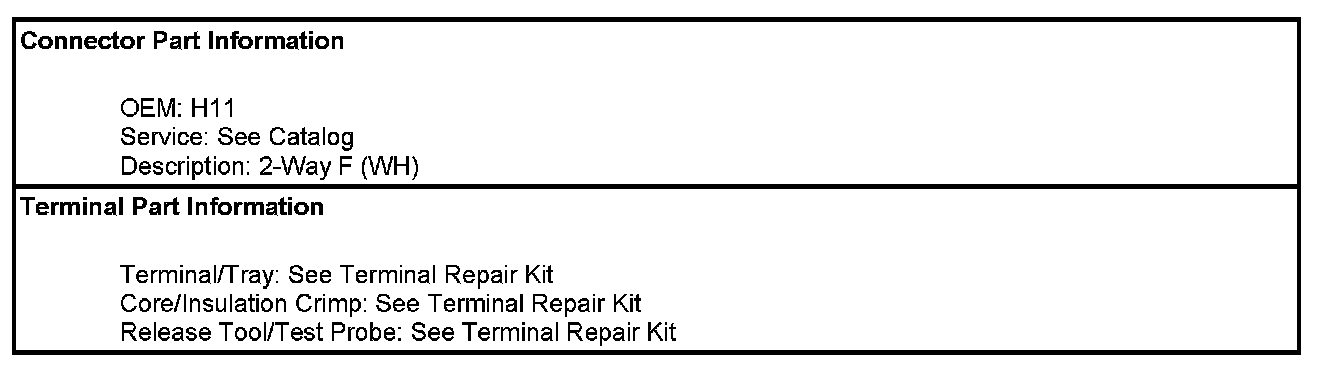

Headlamp - Low Beam - Left

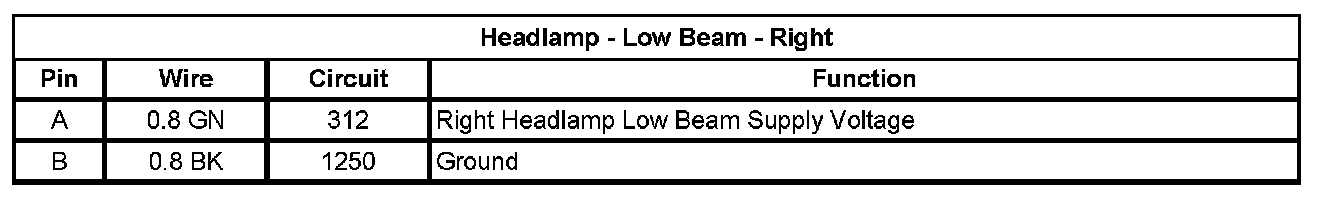

Headlamp - Low Beam - Right
