Ignition Control Module
Ignition Control Module

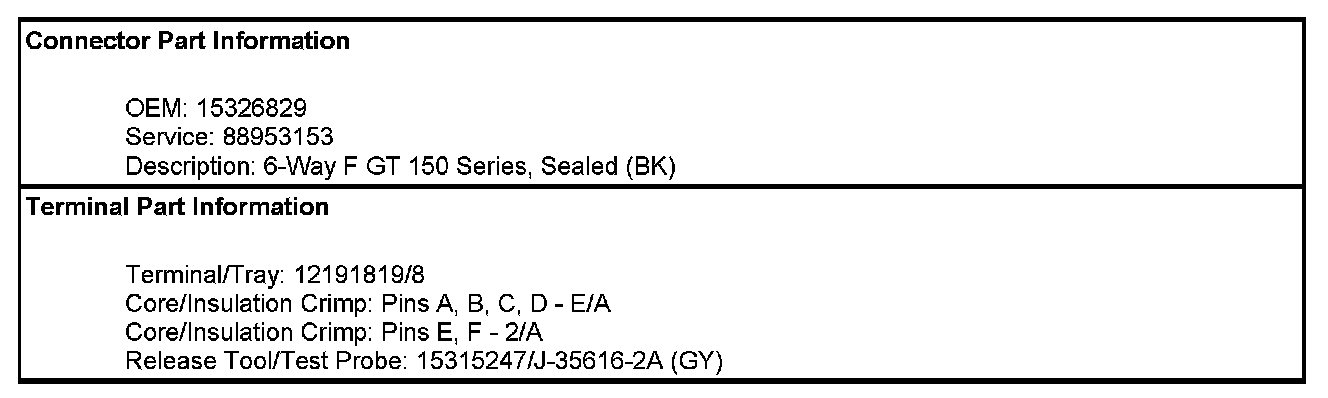

Component Connector End Views - Continued

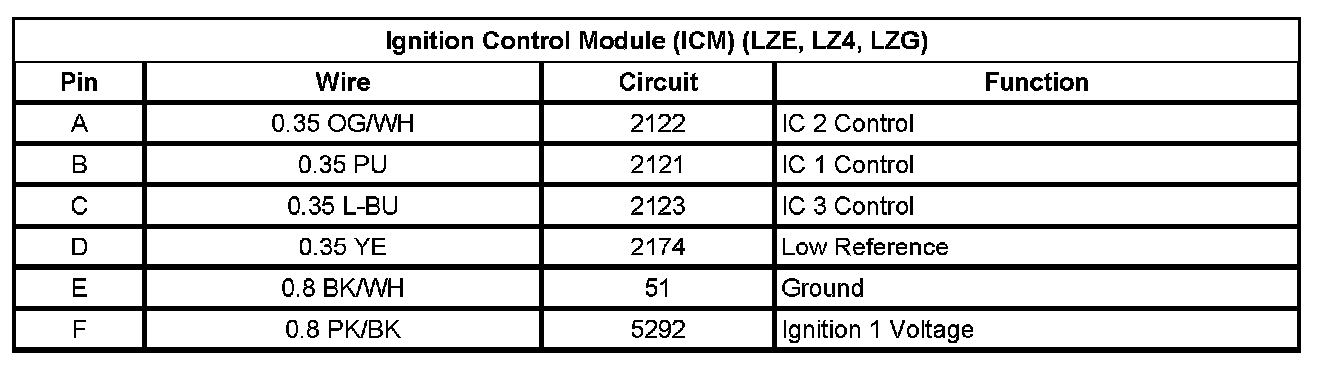

Ignition Control Module (ICM) (LZE, LZ4, LZG)
