Keyless Entry Receiver
Keyless Entry Receiver

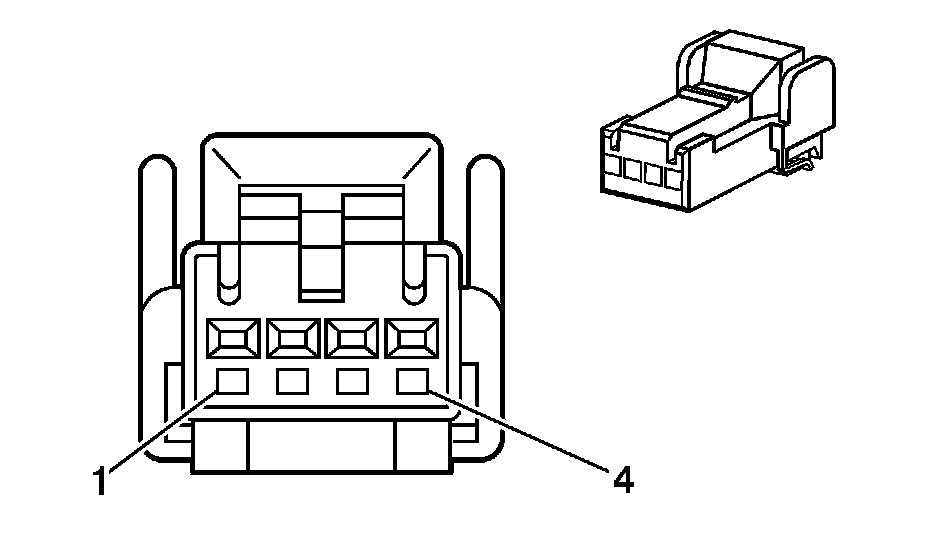

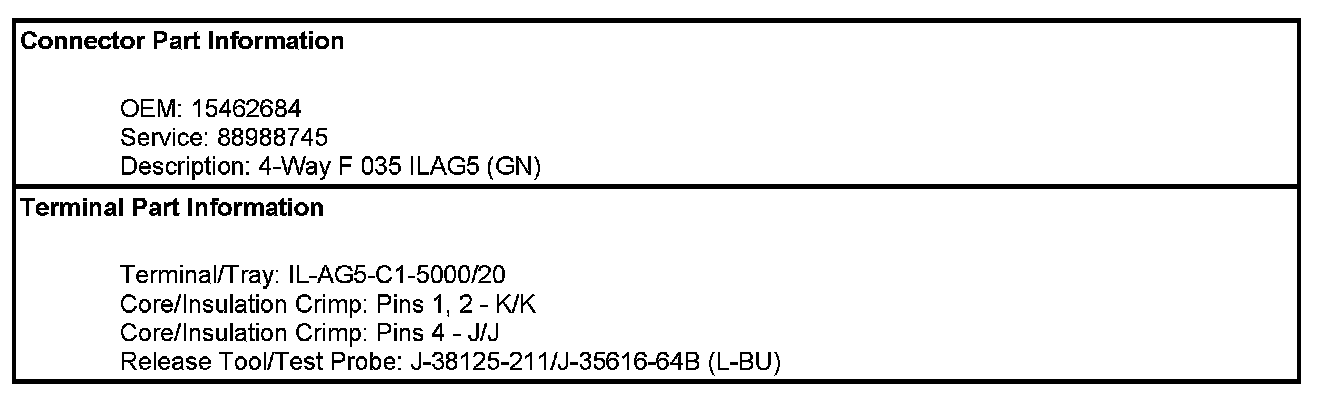

Component Connector End Views - Continued

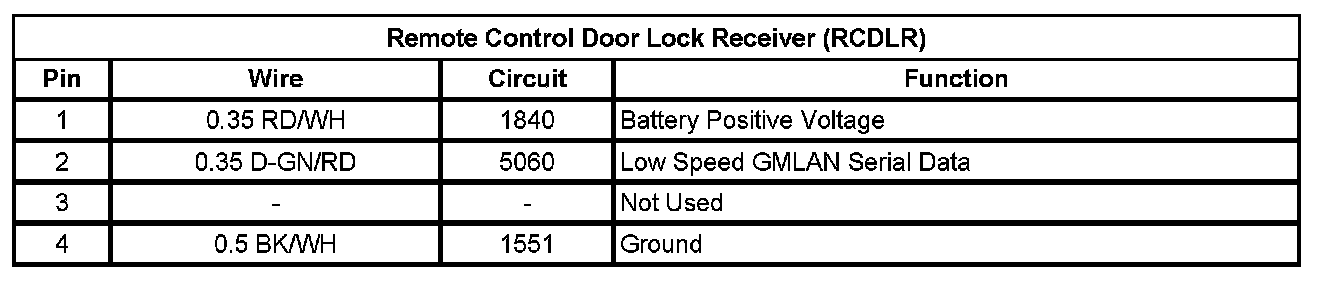

Remote Control
Door Lock Receiver (RCDLR)
