Impala V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Map Light
Map Light
Component Connector End Views

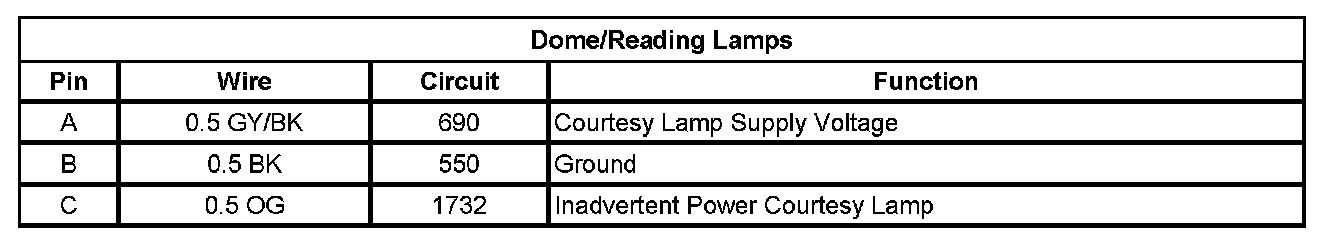

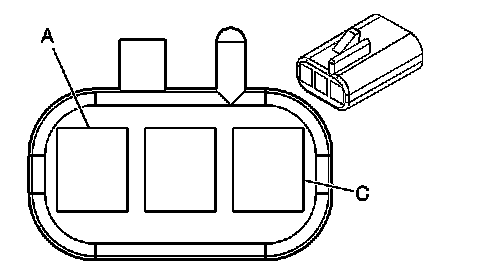

Dome/Reading Lamps

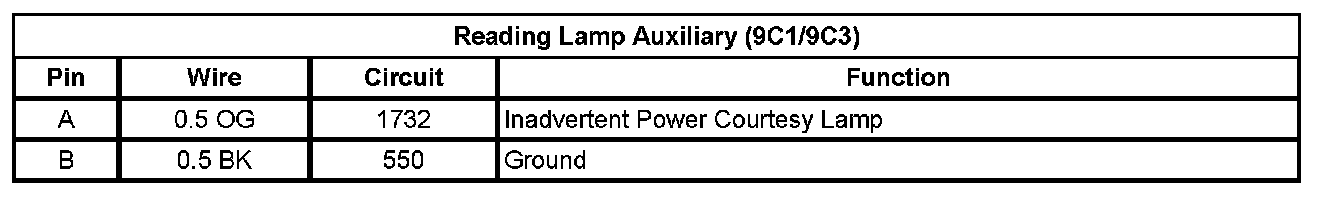

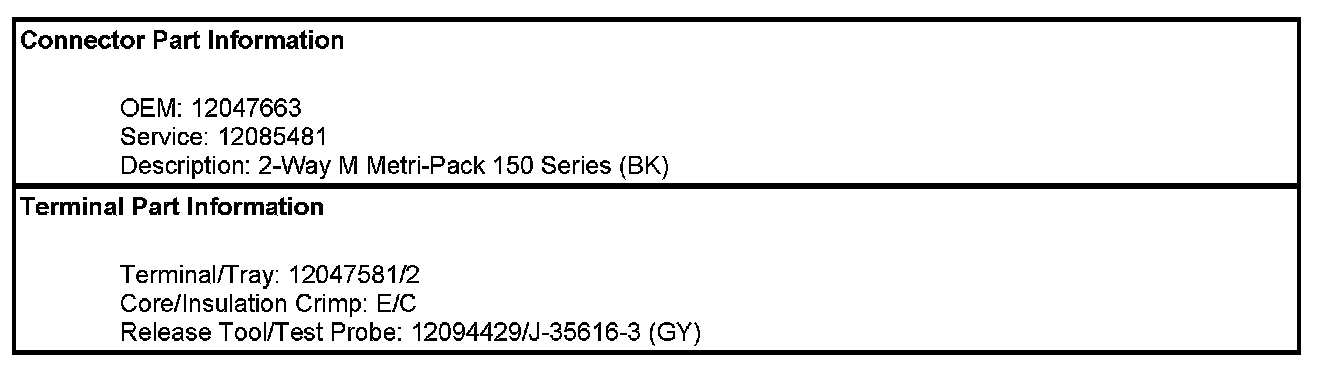

Reading Lamp Auxiliary (9C1/9C3)
