Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Impala V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Marker Lamp
Marker Lamp

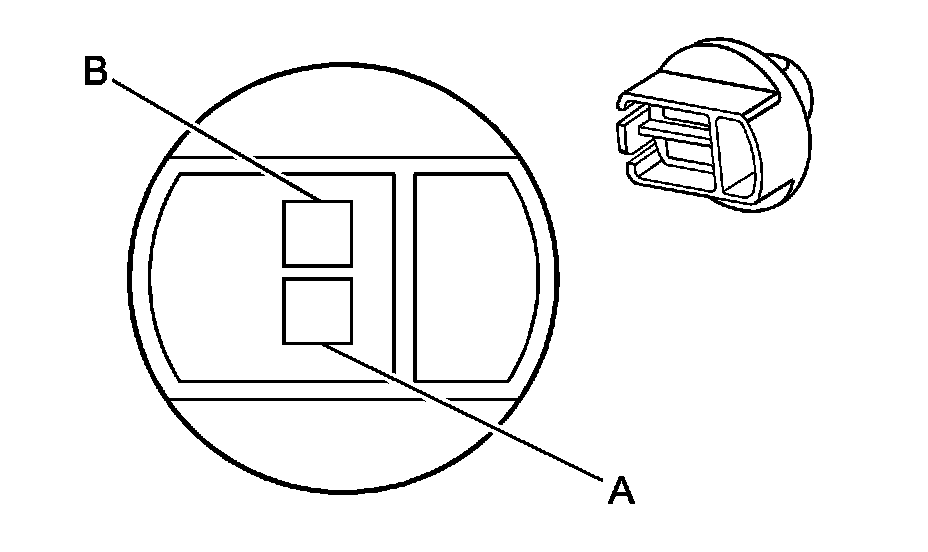

Component Connector End Views - Continued

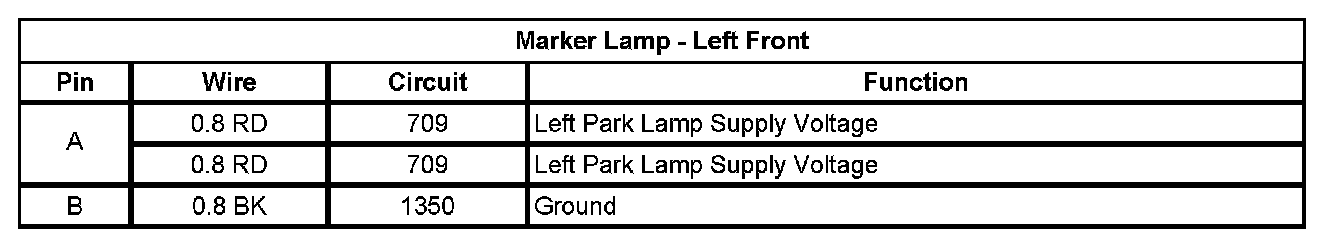

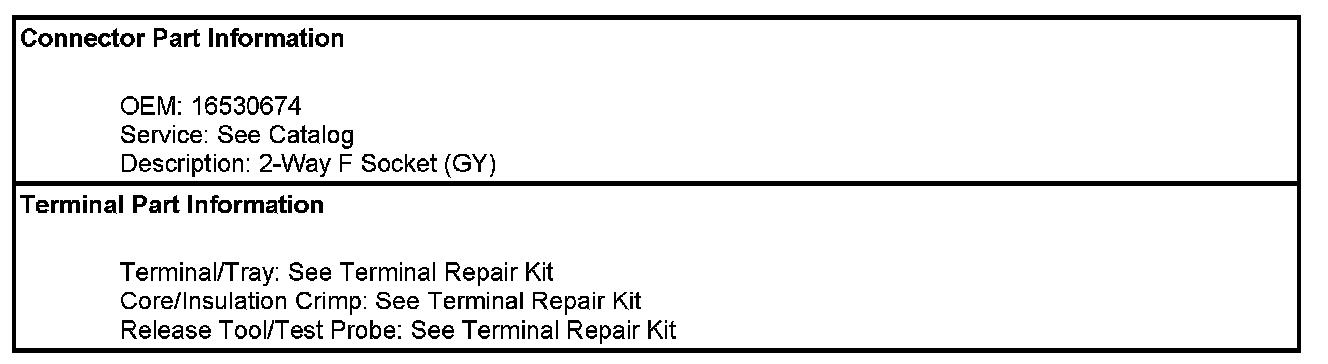

Marker Lamp
- Left Front

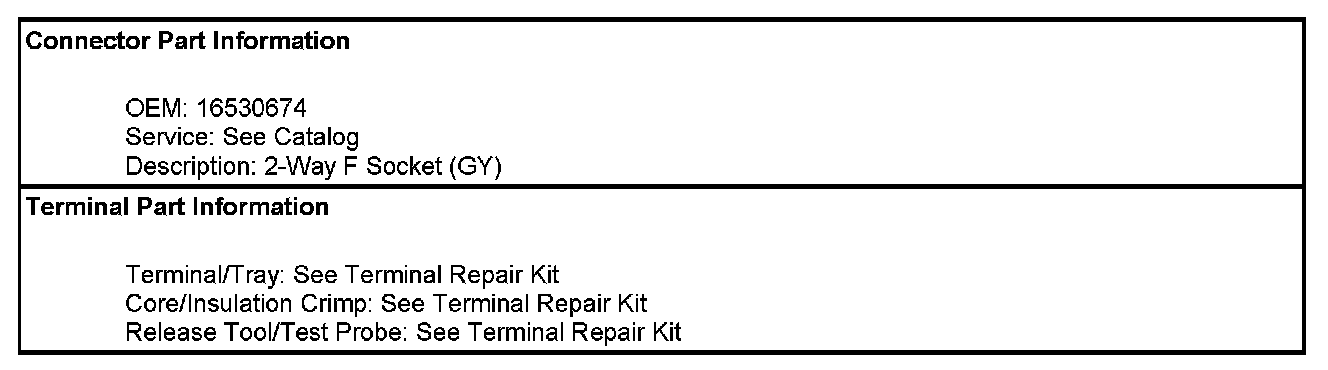

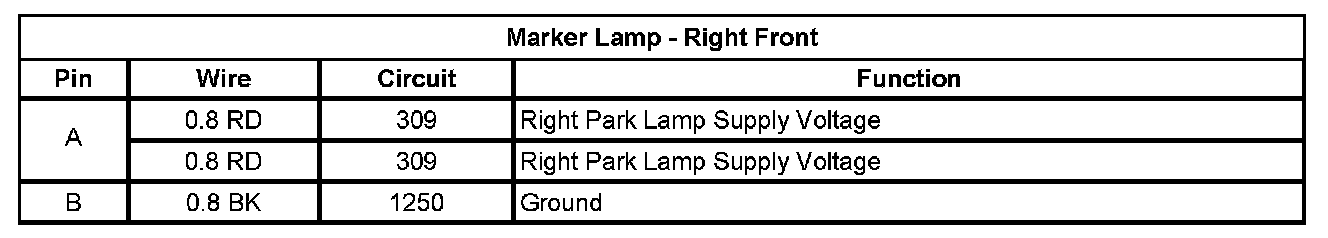

Marker Lamp
- Right Front
