X141
X141

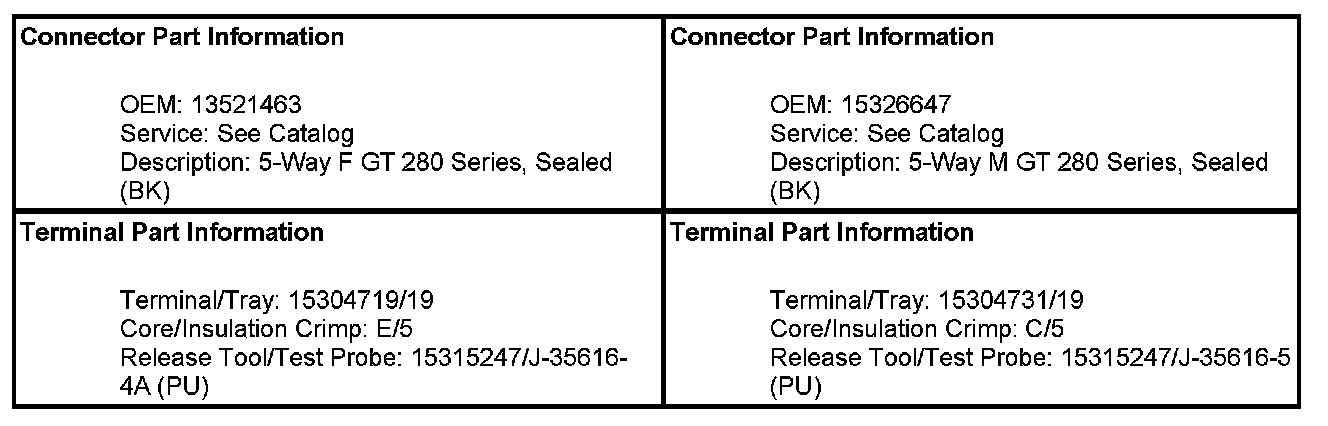

Inline Harness Connector End Views

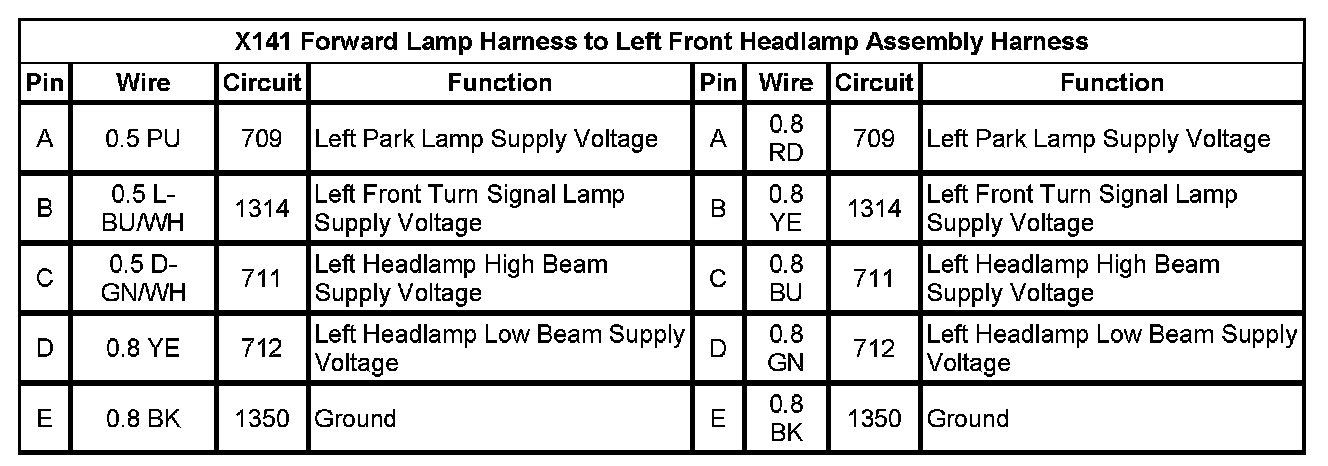

X141 Forward Lamp Harness to Left Front Headlamp Assembly Harness
