X142

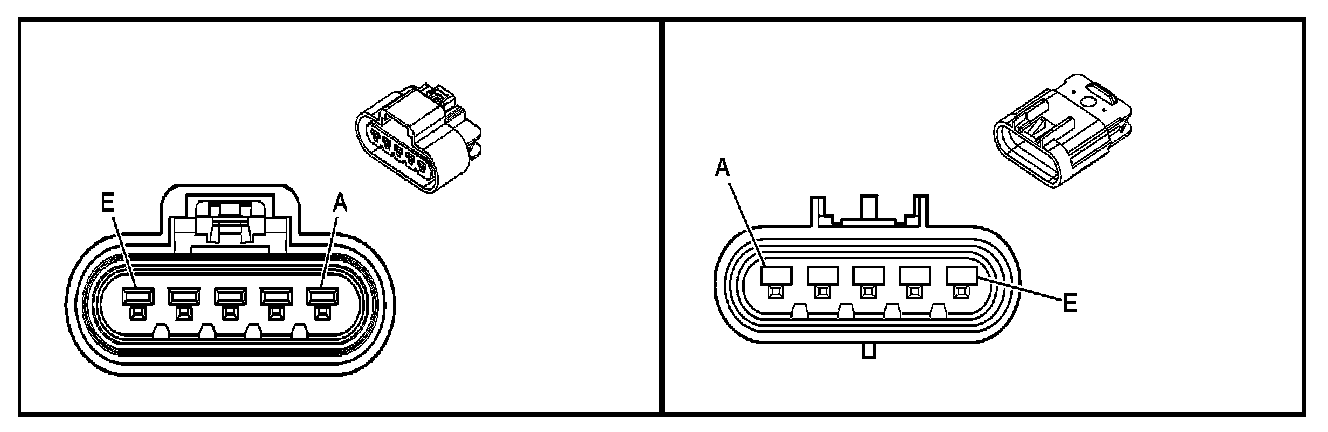

Inline Harness Connector End Views

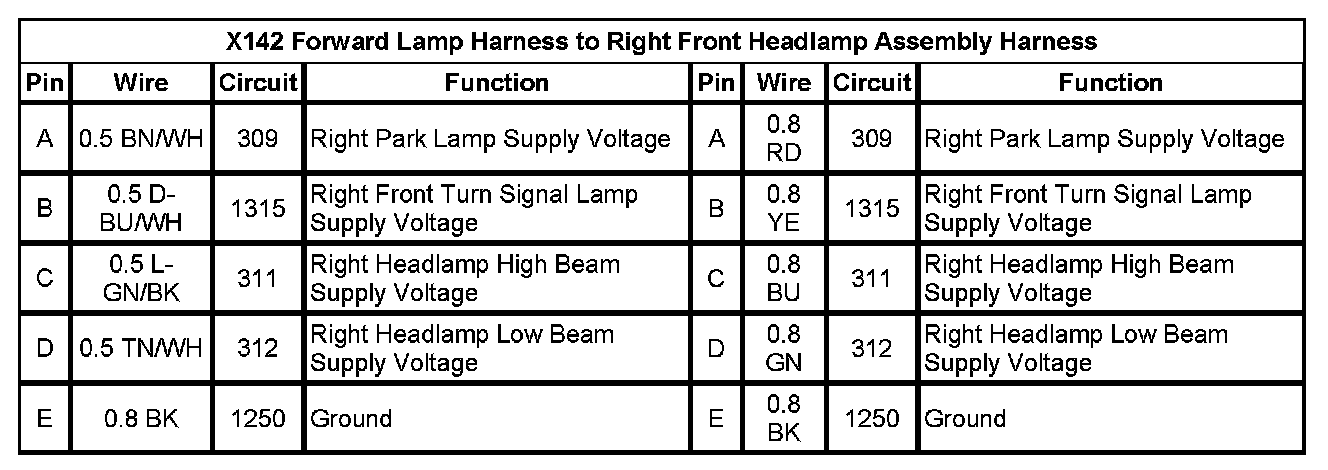

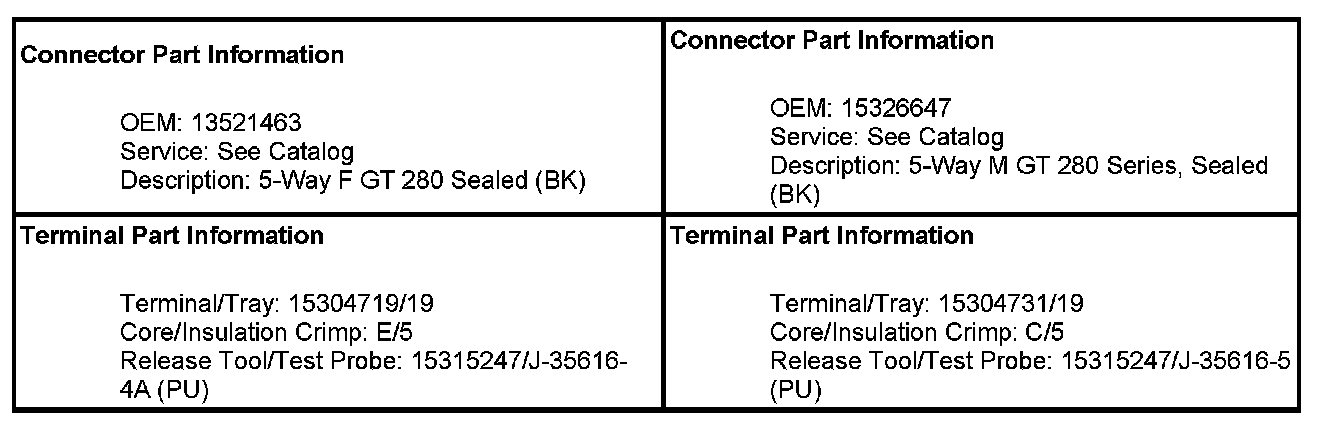

X142 Forward Lamp Harness to Right Front Headlamp Assembly Harness
