X412
X412

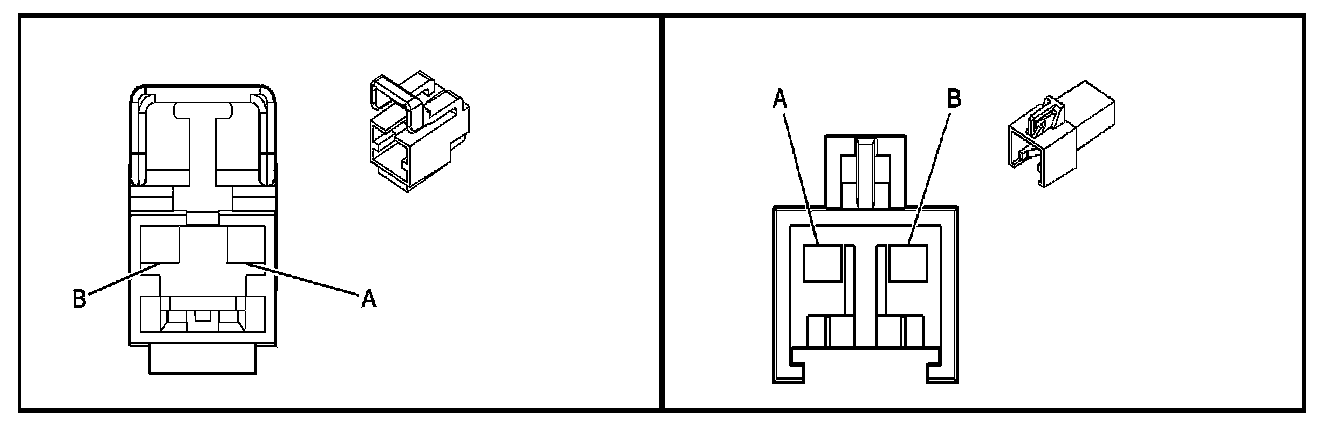

Inline Harness Connector End Views

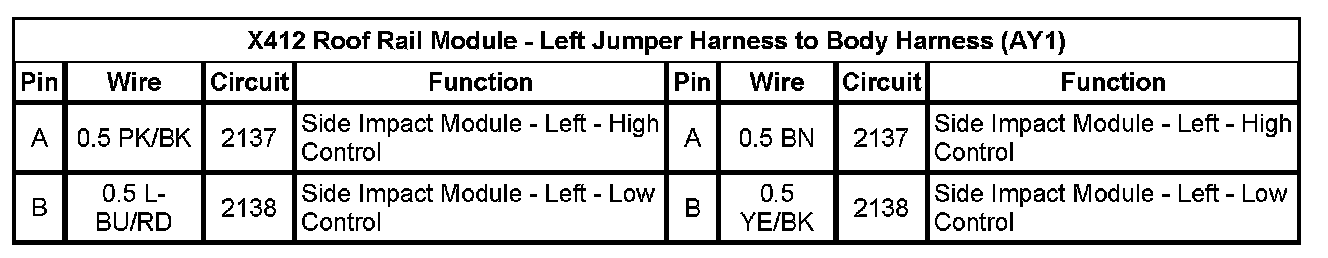

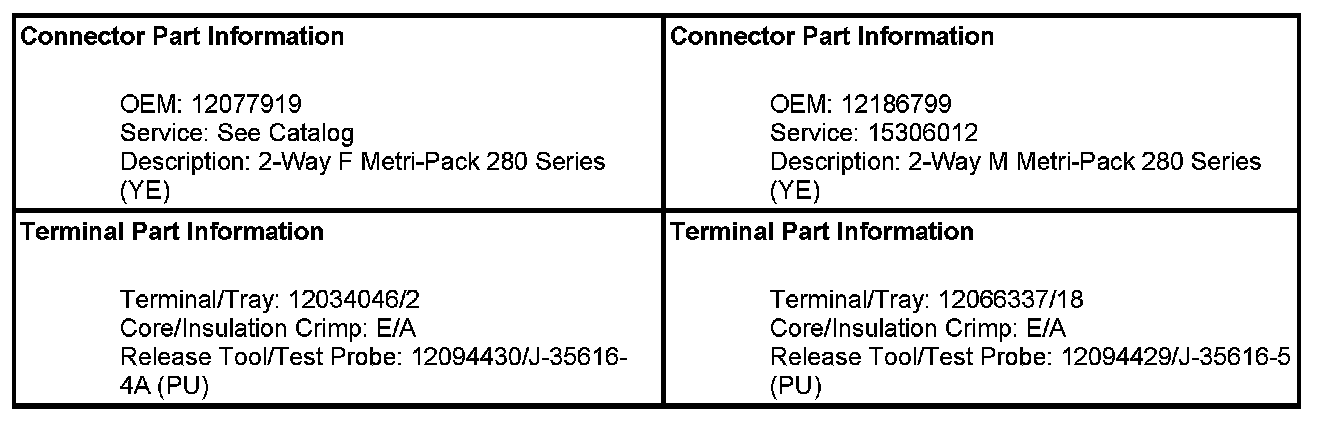

X412 Roof Rail Module - Left Jumper Harness to Body Harness (AY1)
