Oil Level Sensor
Oil Level Sensor

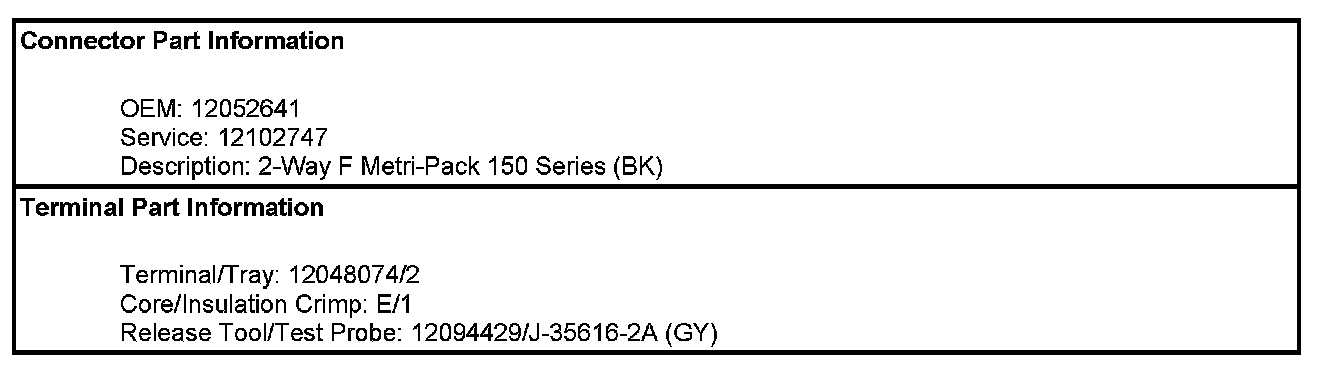

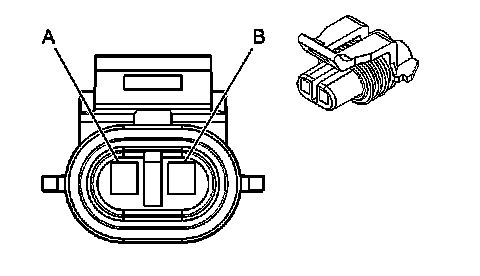

Component Connector End Views

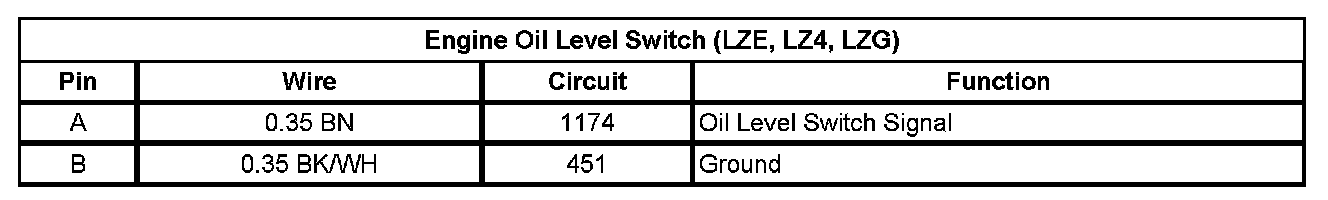

Engine Oil Level Switch (LZE, LZ4, LZG)
