Oxygen Sensor
Oxygen Sensor
Component Connector End Views

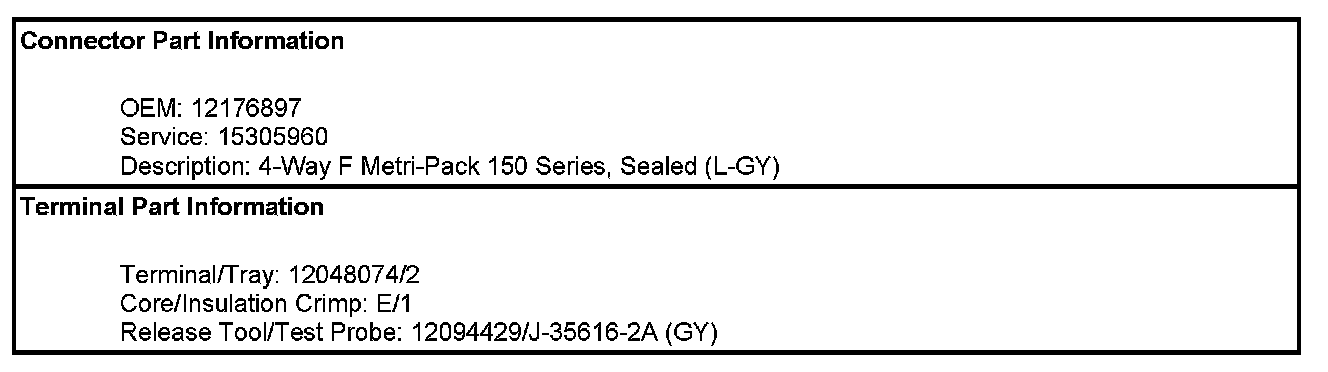

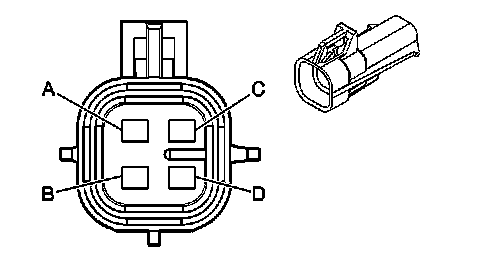

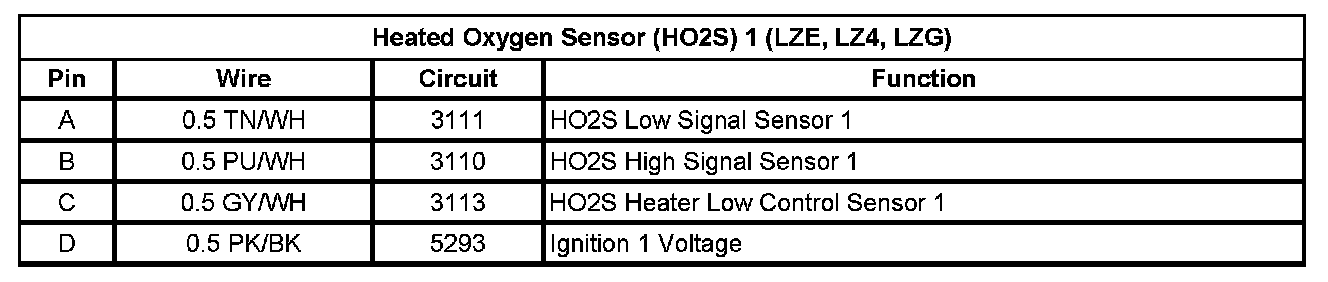

Heated Oxygen Sensor (HO2S) 1 (LZE, LZ4, LZG)

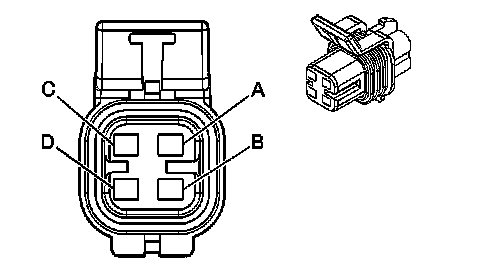

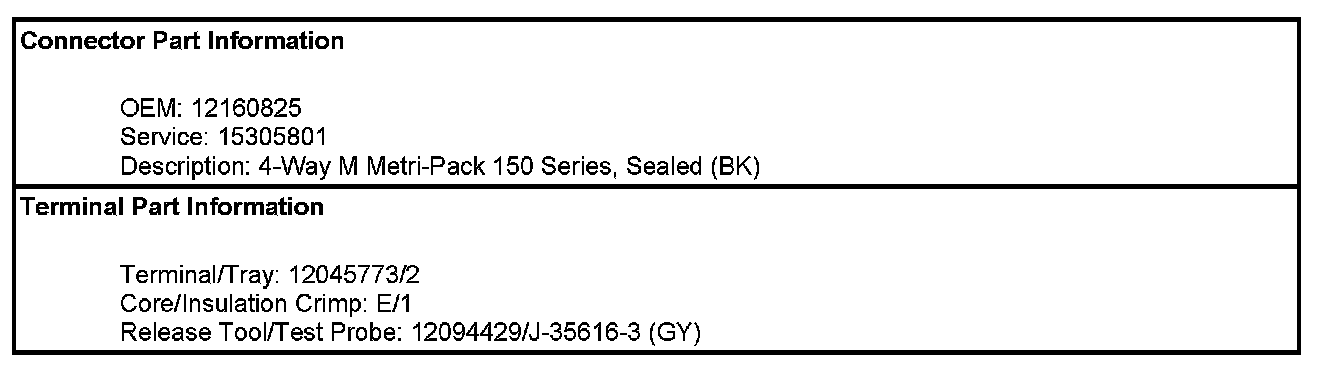

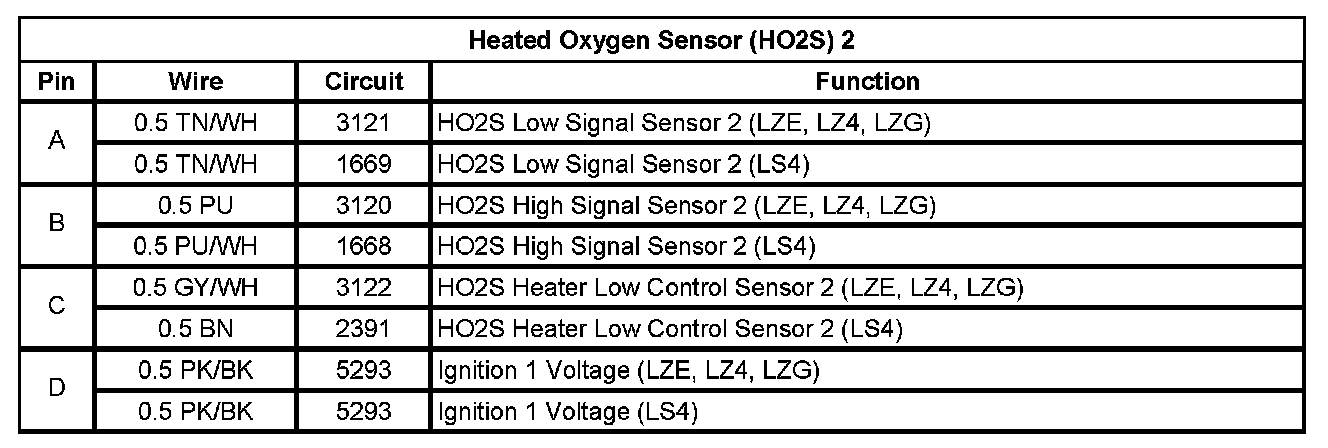

Heated Oxygen Sensor (HO2S) 2
