Parking Lamp

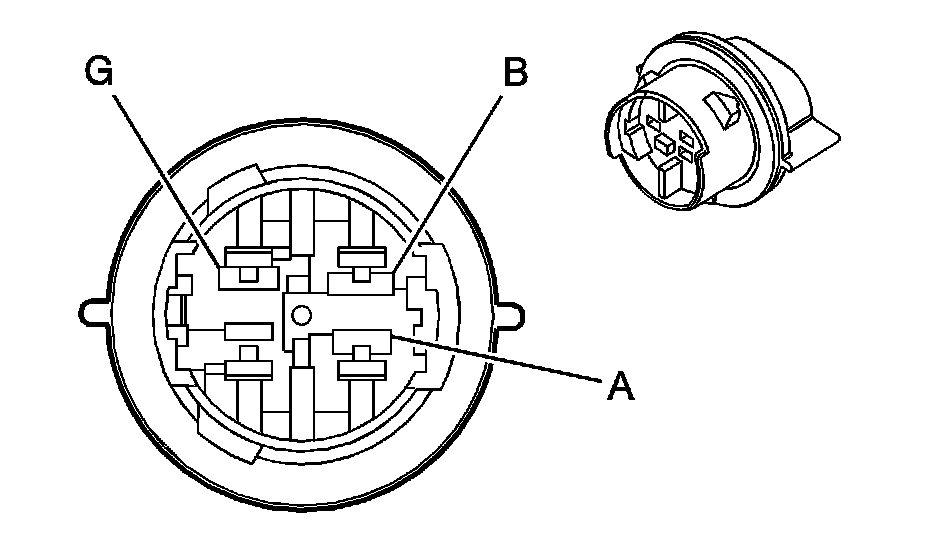

Component Connector End Views - Continued

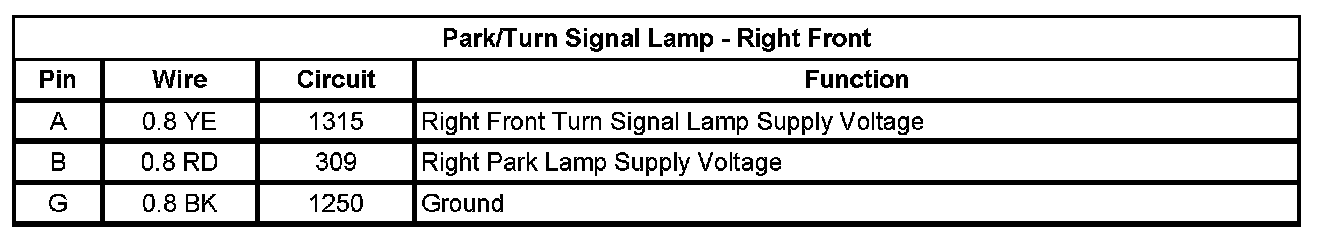

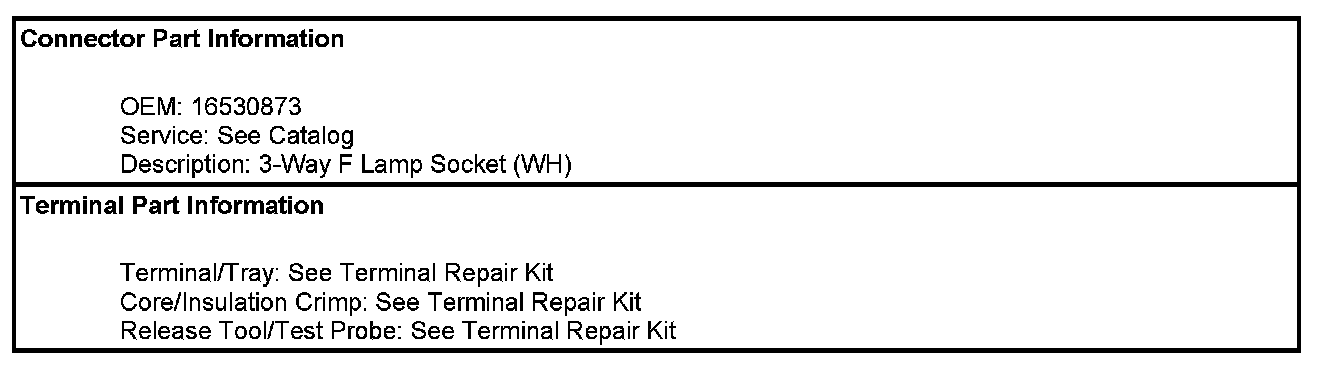

Park/Turn Signal Lamp - Right Front

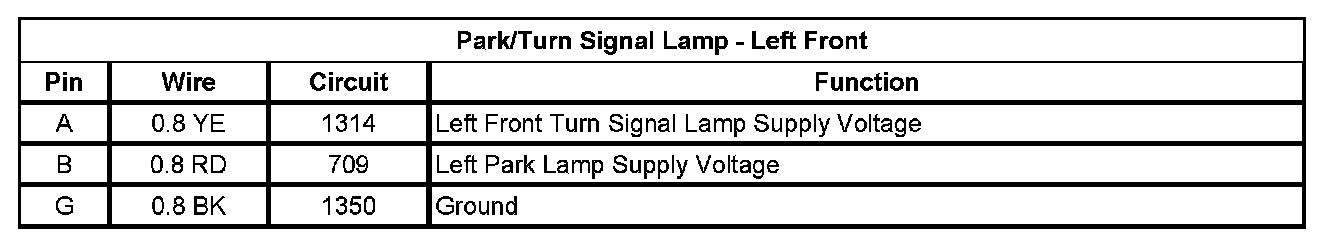

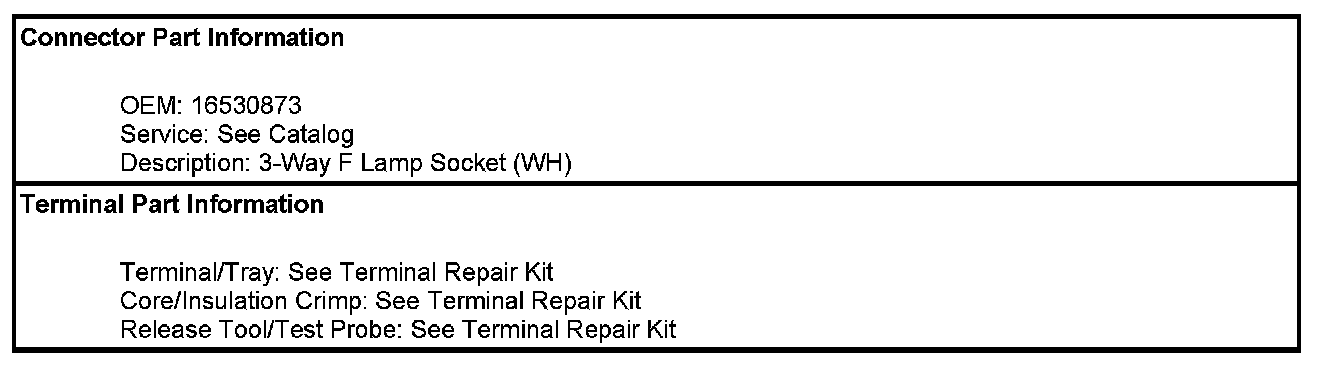

Park/Turn Signal Lamp - Left Front
