Power Seat Motor



Component Connector End Views - Continued

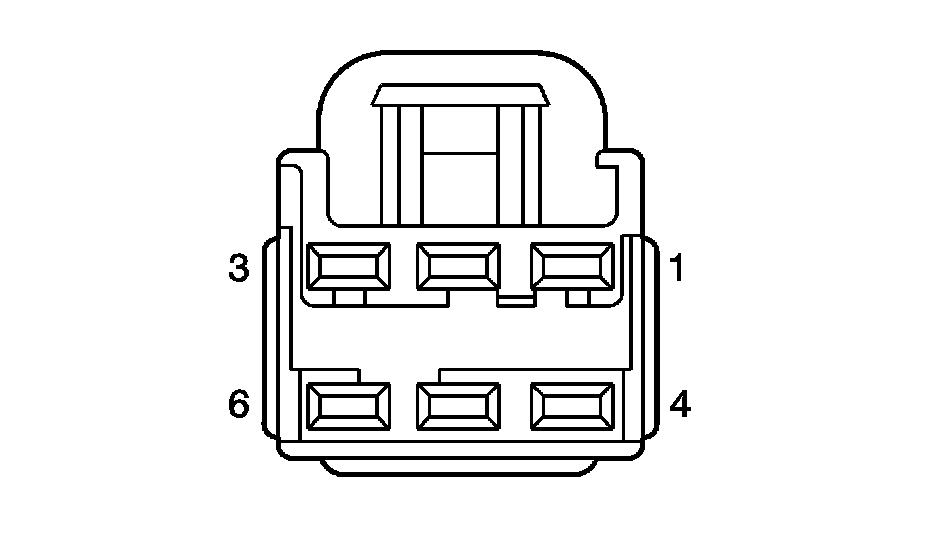

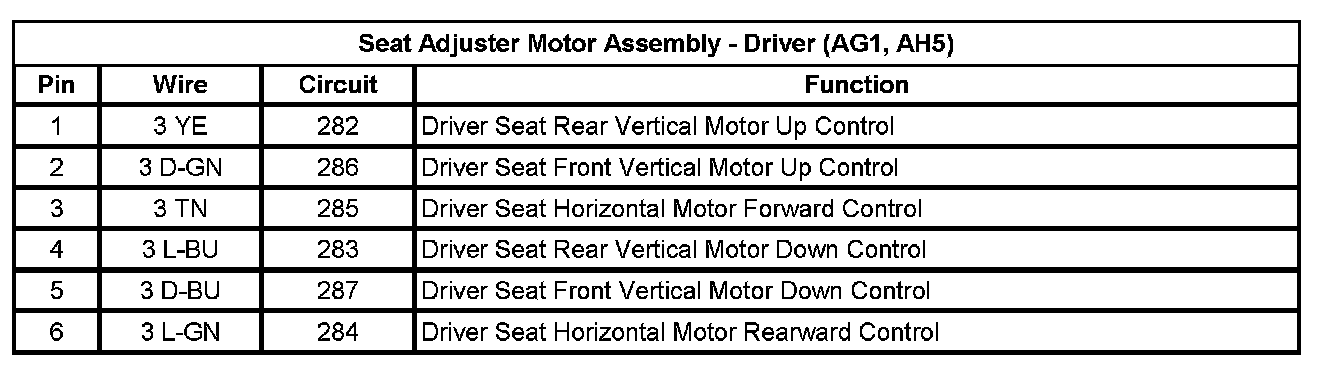

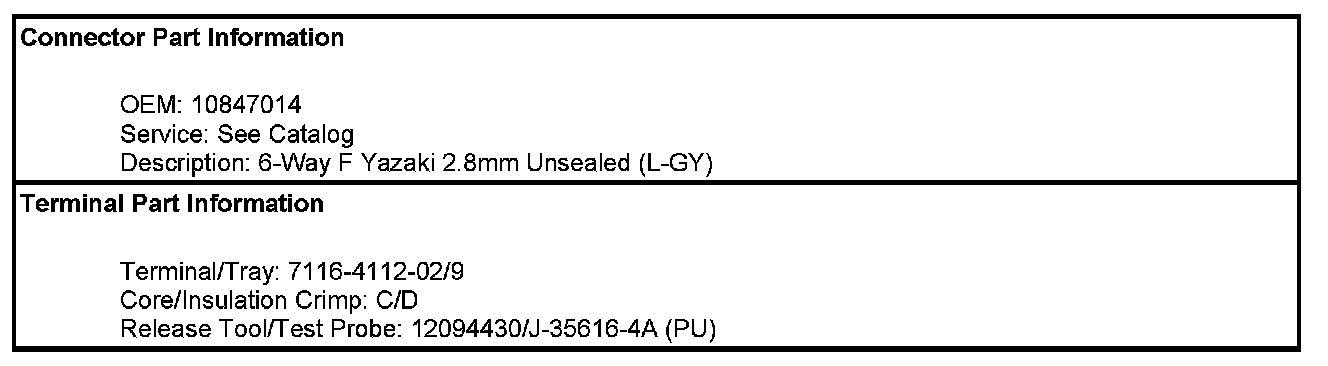

Seat Adjuster Motor Assembly - Driver (AG1, AH5)

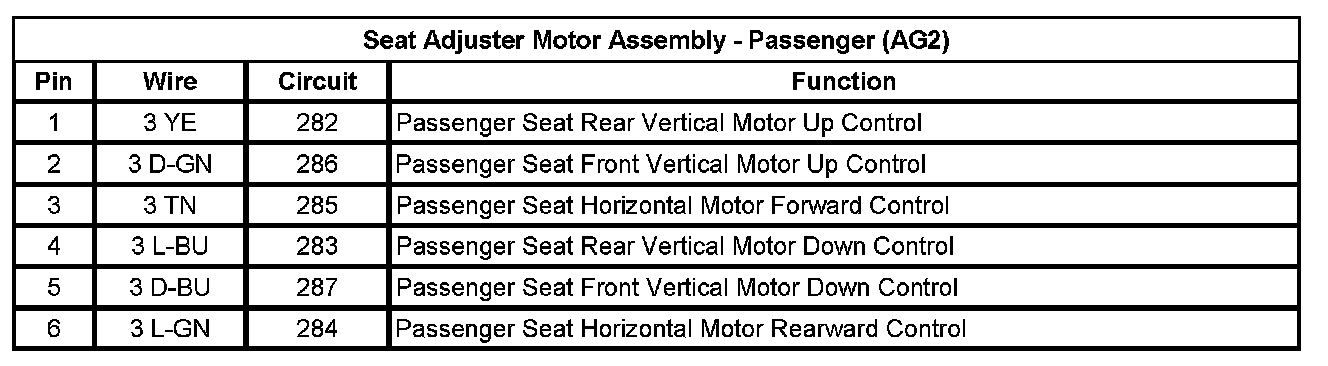

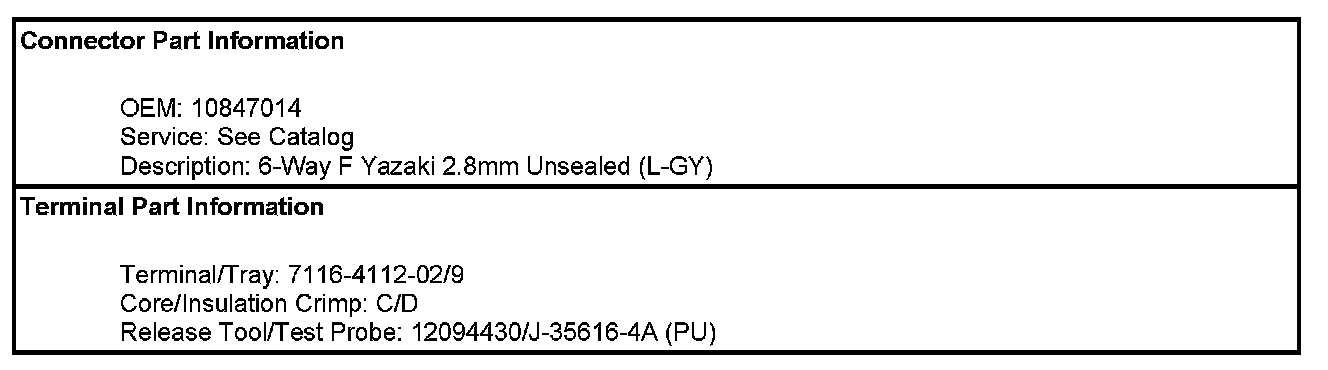

Seat Adjuster Motor Assembly - Passenger (AG2)

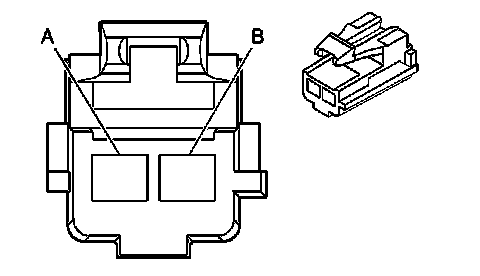

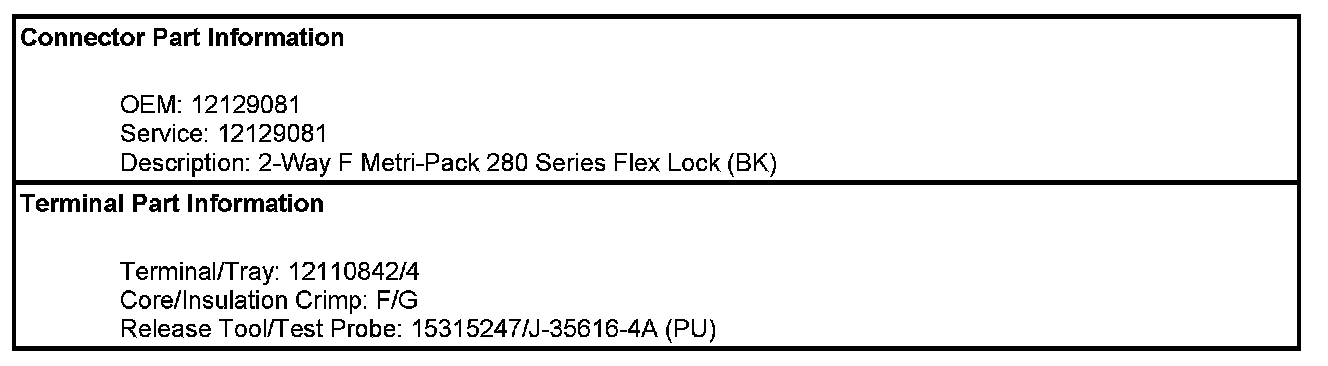

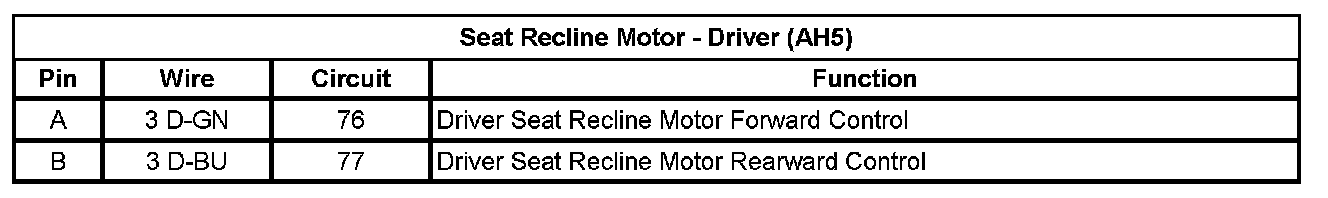

Seat Recline Motor - Driver (AH5)
