Power Seat Switch



Component Connector End Views - Continued

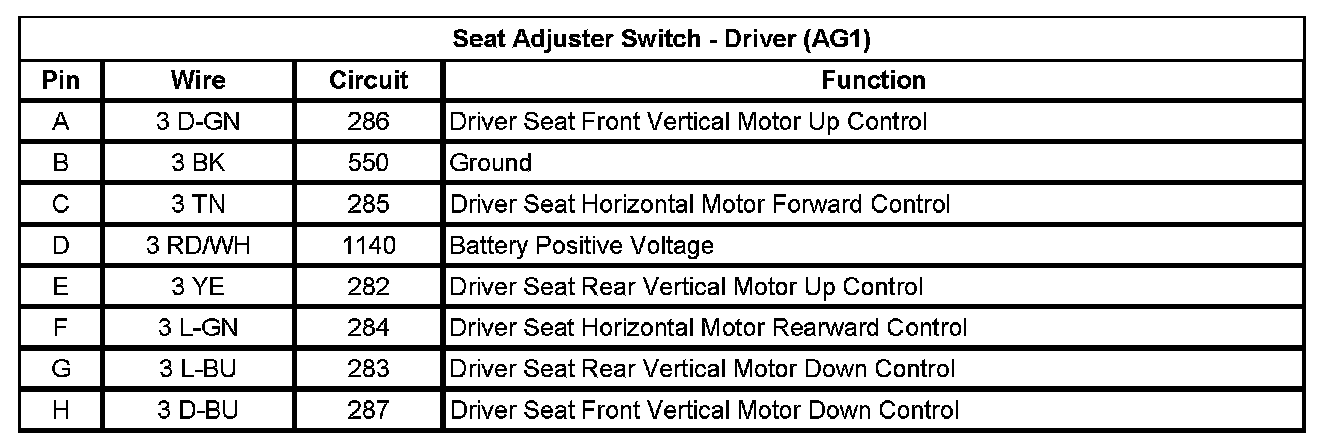

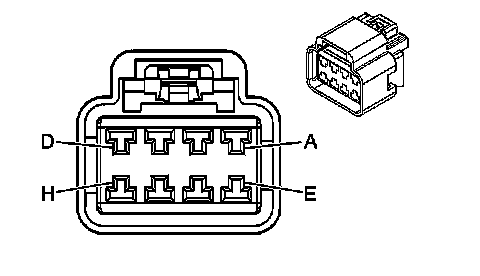

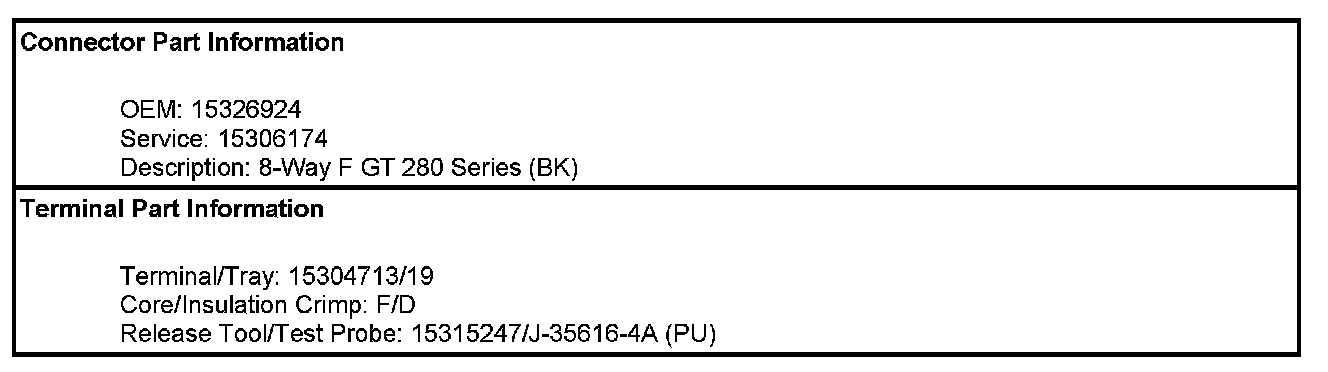

Seat Adjuster Switch - Driver (AG1)

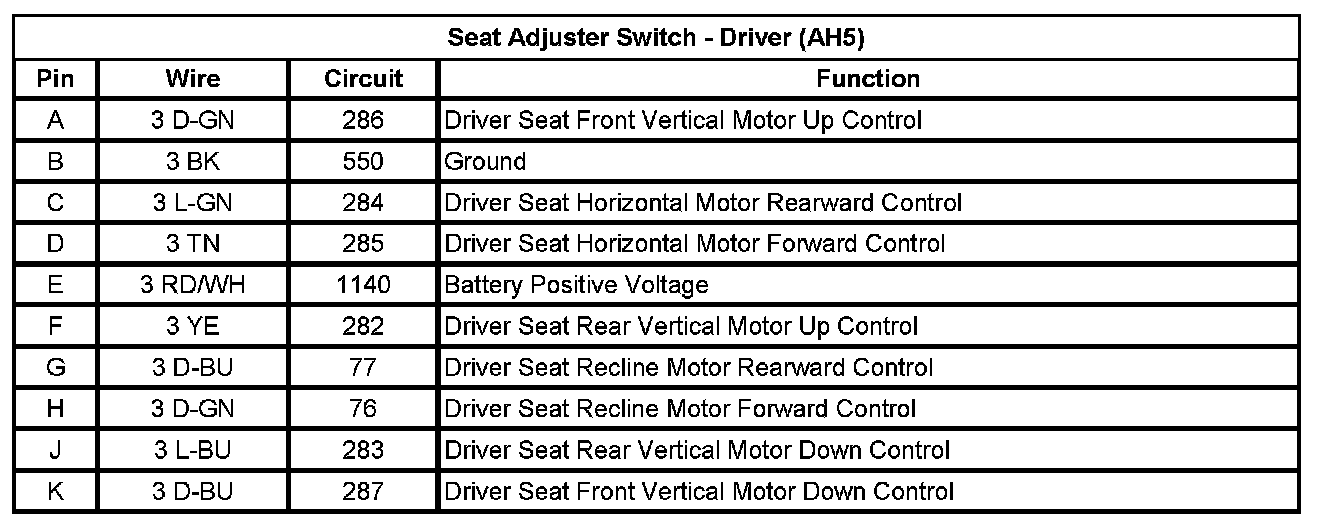

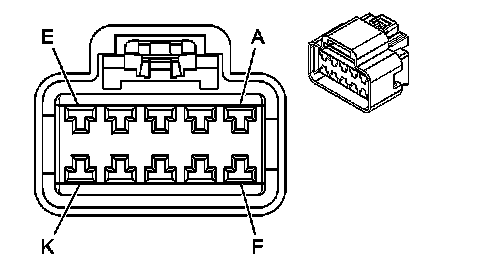

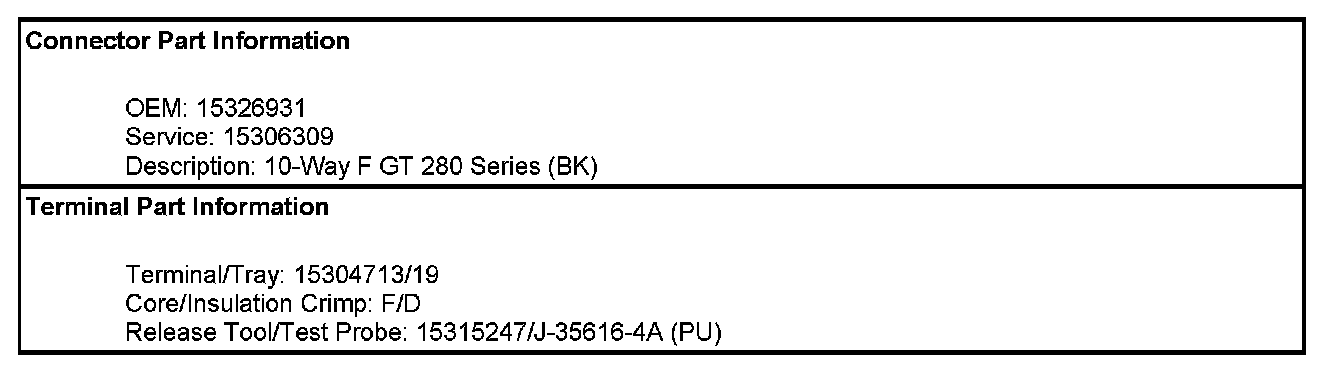

Seat Adjuster Switch - Driver (AH5)

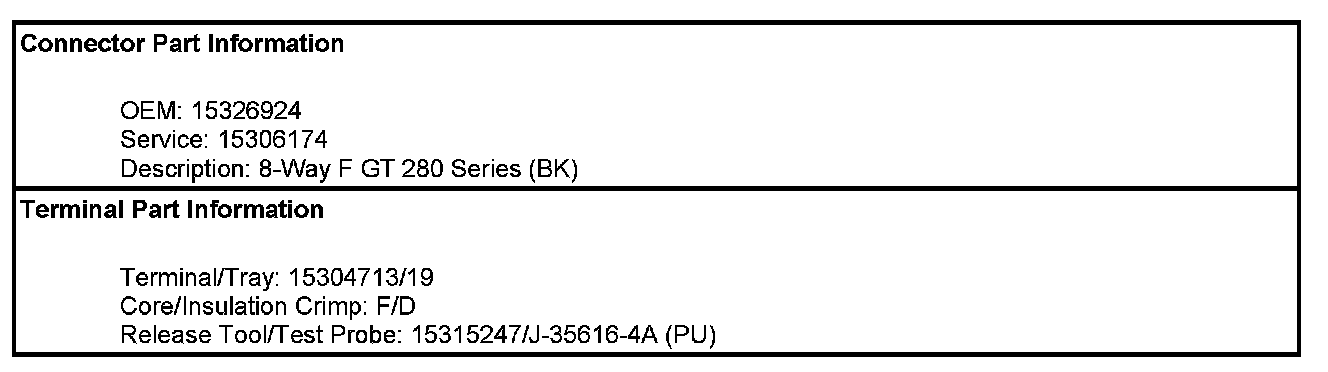

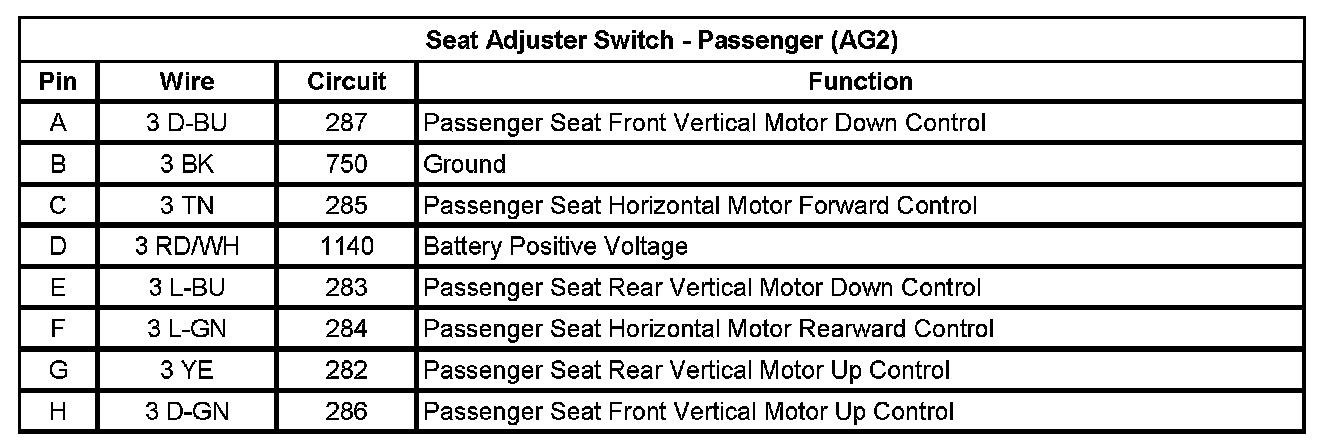

Seat Adjuster Switch - Passenger (AG2)
