Power Trunk / Liftgate Lock Actuator
Power Trunk / Liftgate Lock Actuator
Component Connector End Views - Continued

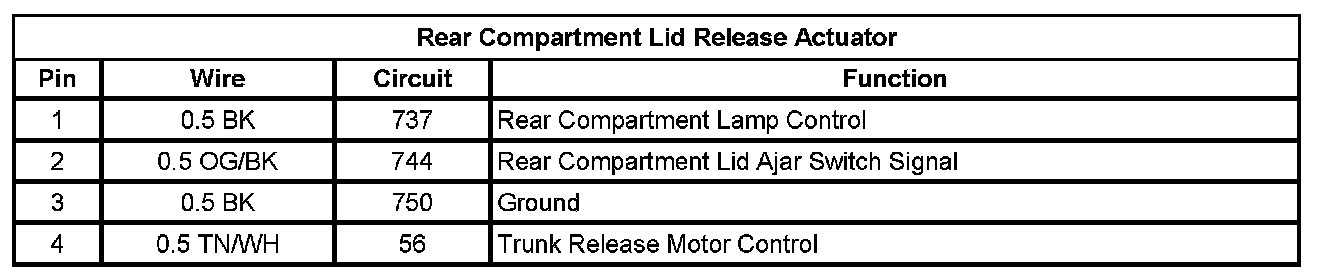

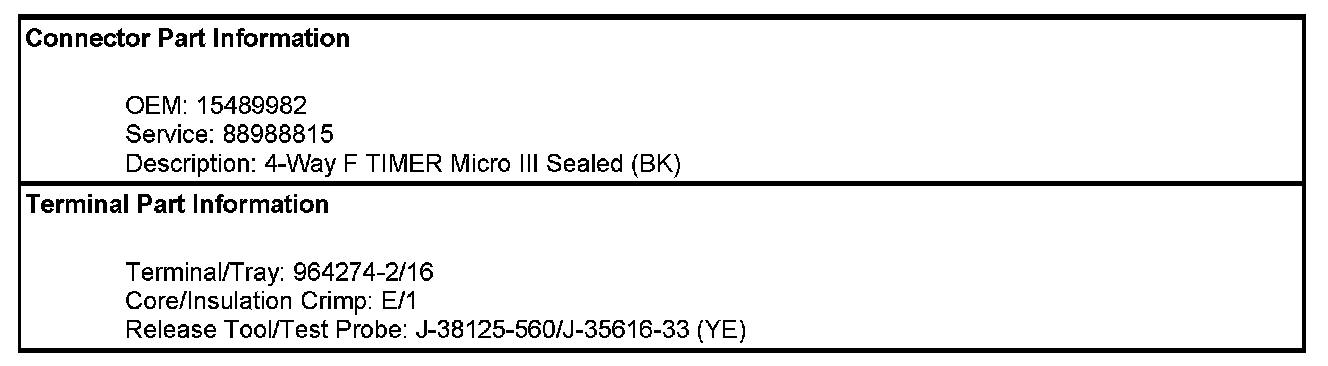

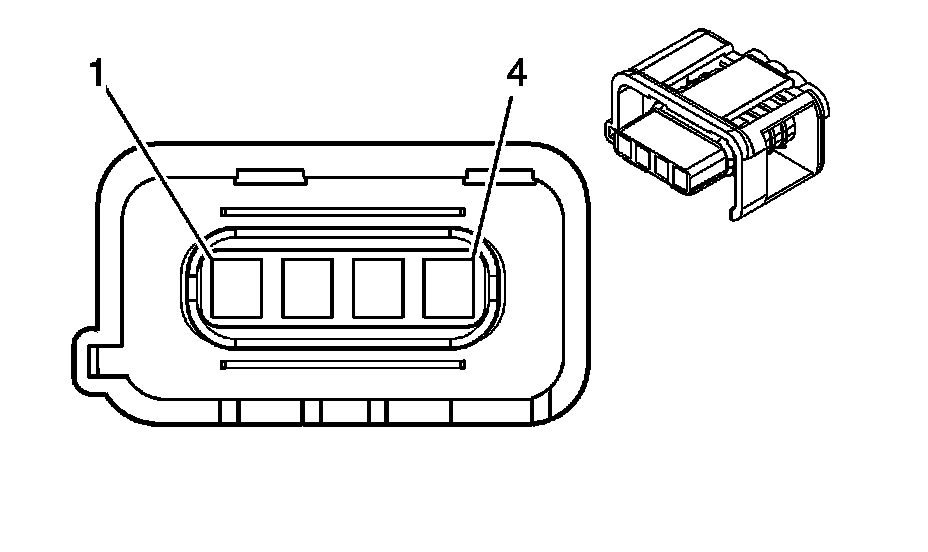

Rear Compartment Lid Release Actuator
