Seat Belt Buckle Switch

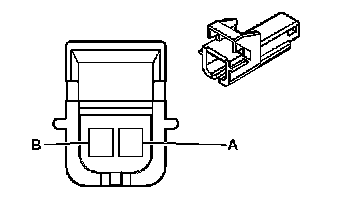

Component Connector End Views - Continued

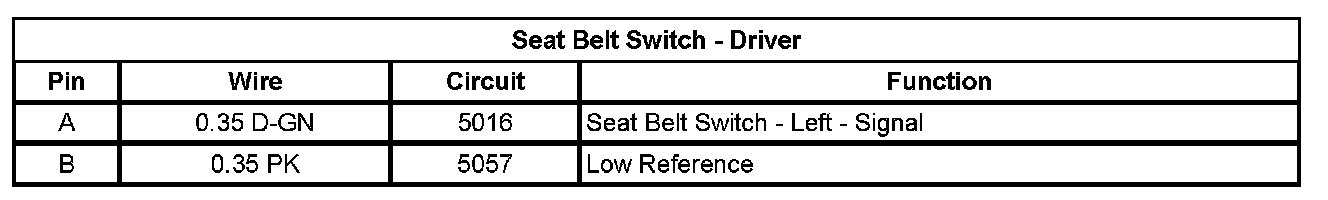

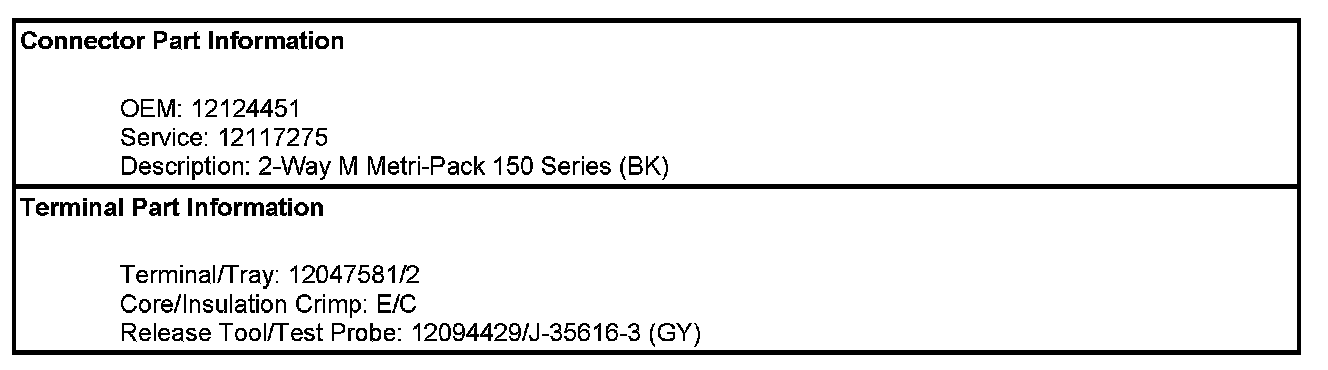

Seat Belt Switch - Driver

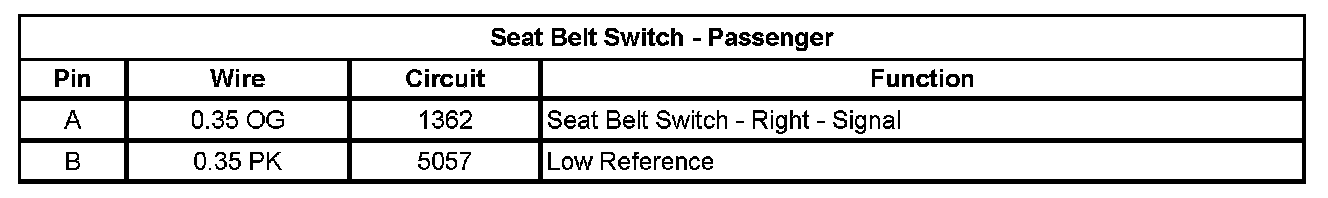

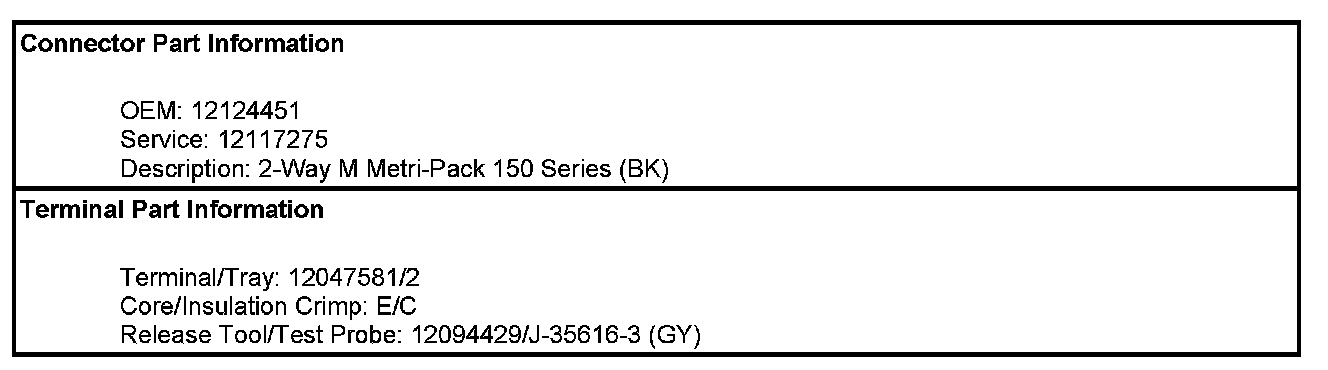

Seat Belt Switch - Passenger
