Seat Belt Tension Sensor

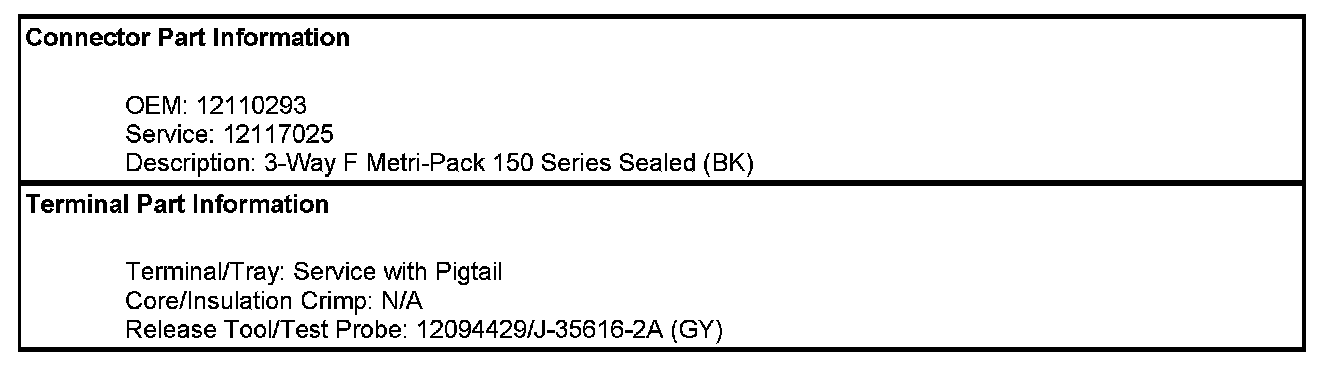

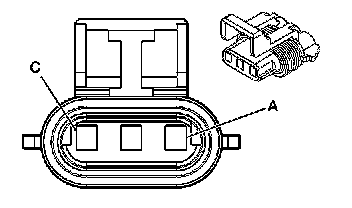

Component Connector End Views - Continued

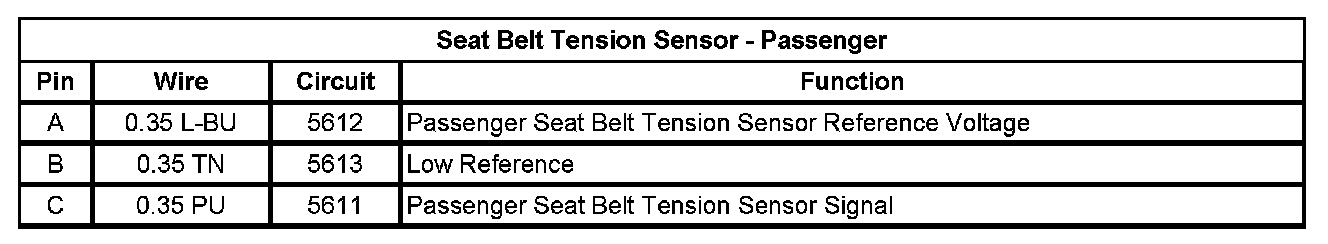

Seat Belt Tension Sensor - Passenger
