Seat Belt Tensioner

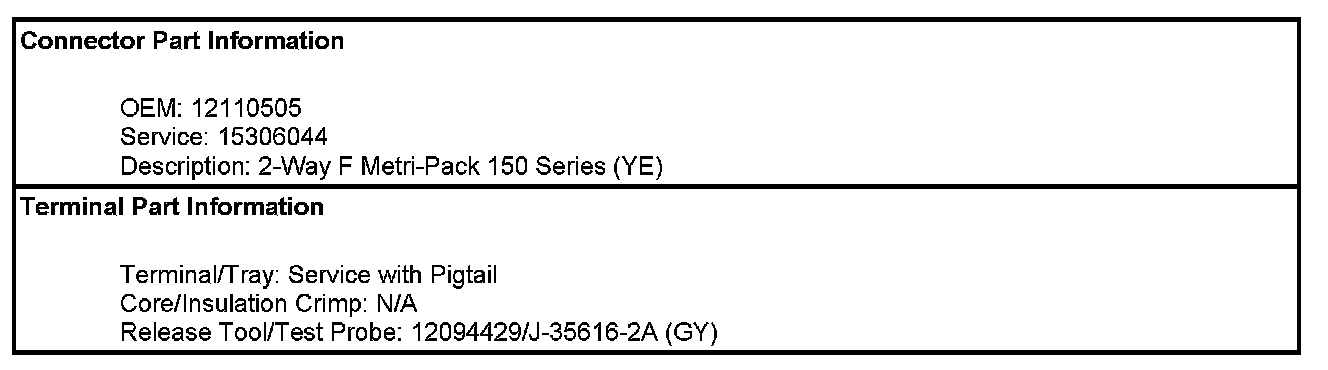

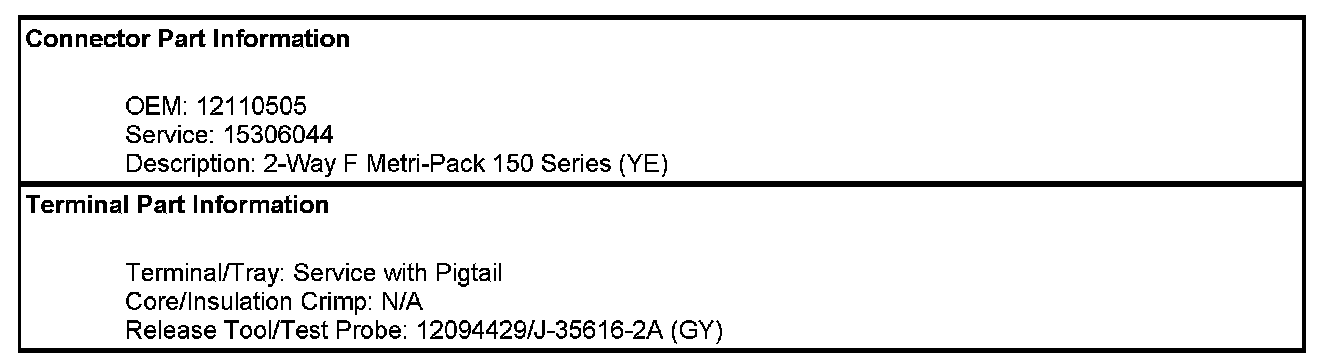

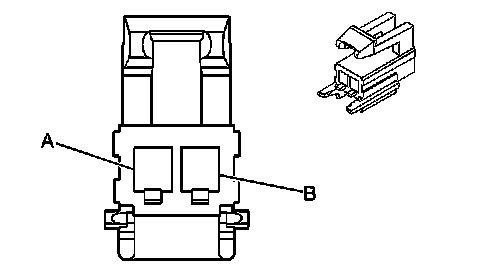

Component Connector End Views - Continued

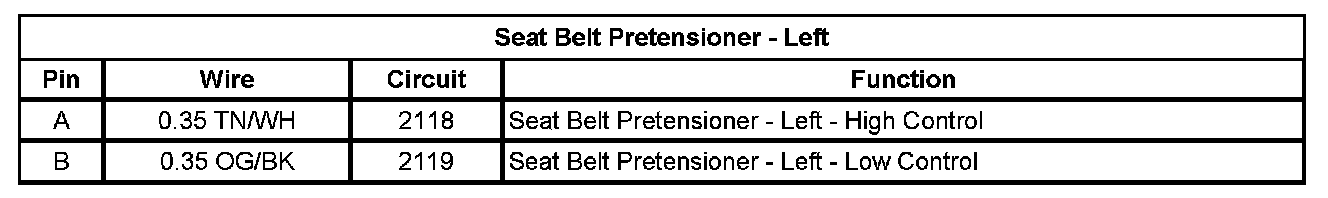

Seat Belt Pretensioner - Left

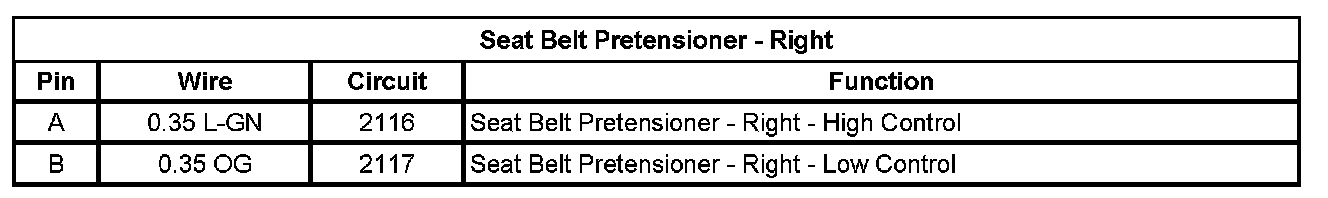

Seat Belt Pretensioner - Right
