Seat Temperature Element

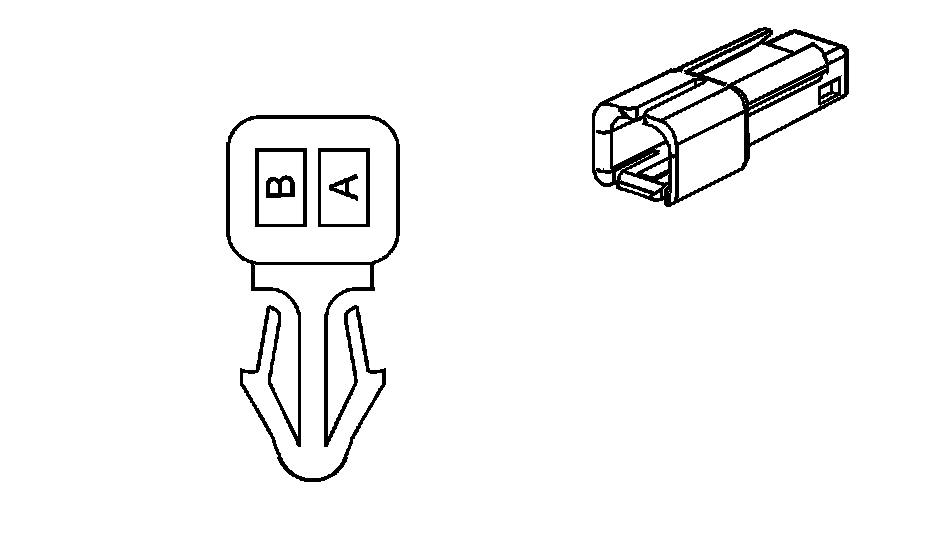

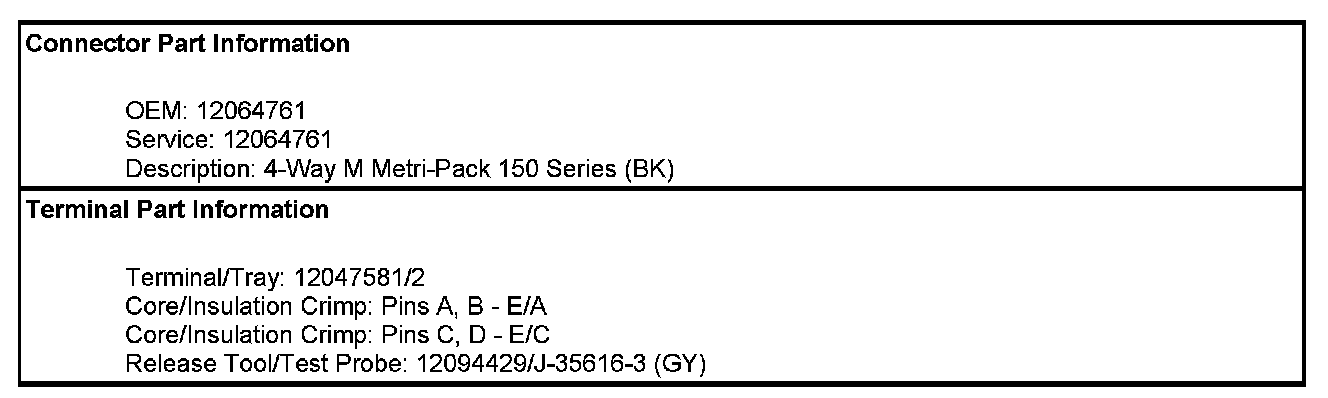

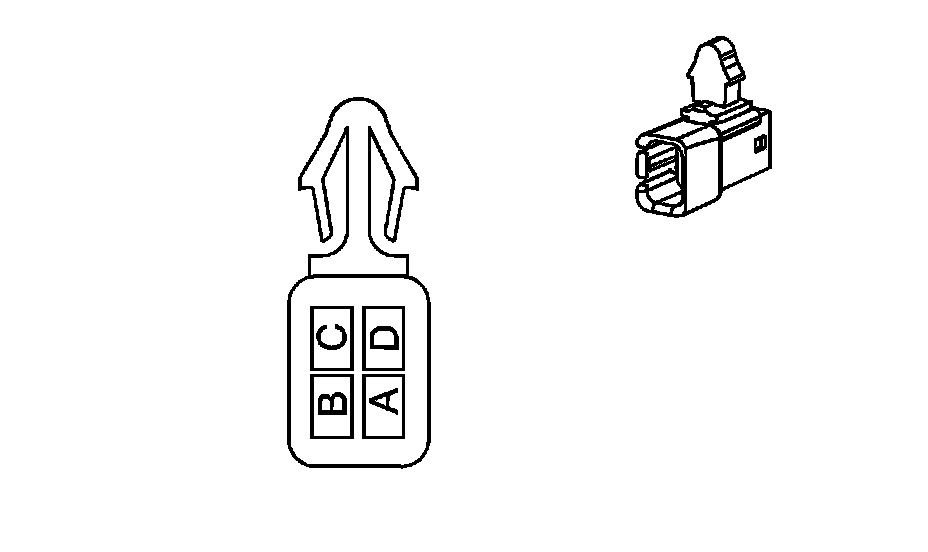

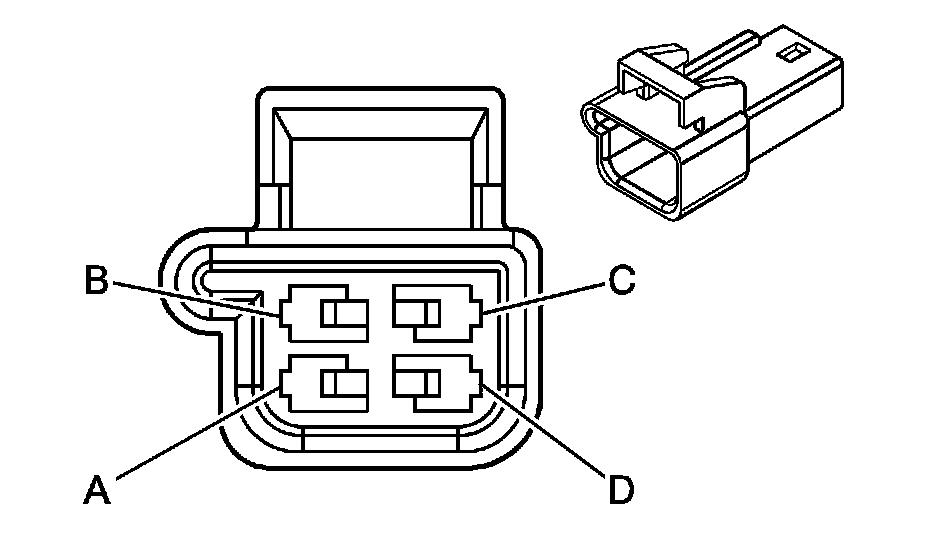

Component Connector End Views - Continued

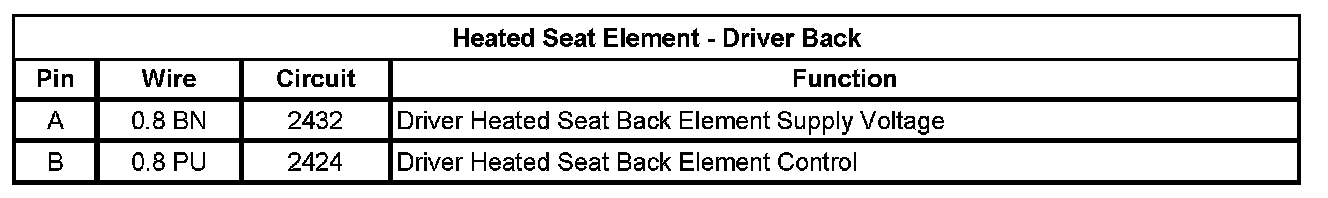

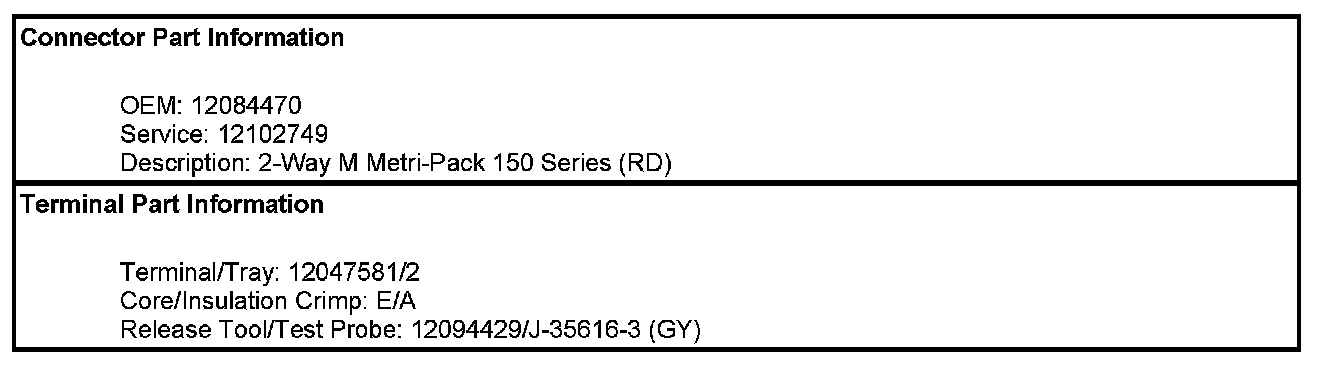

Heated Seat Element - Driver Back

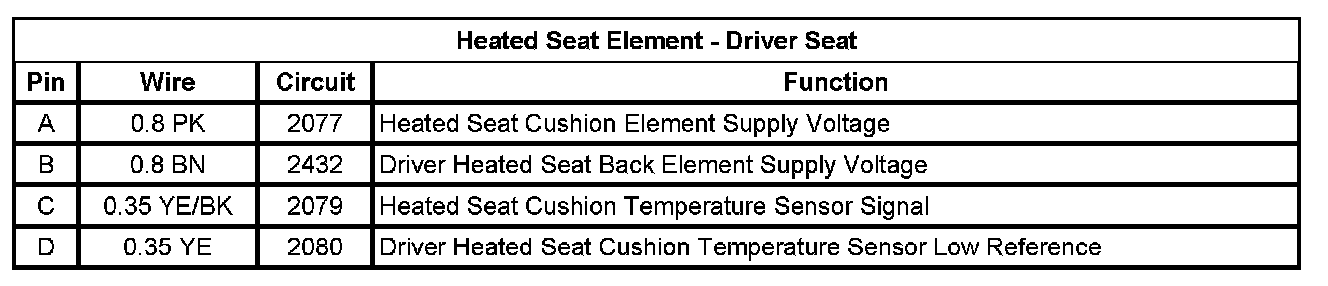

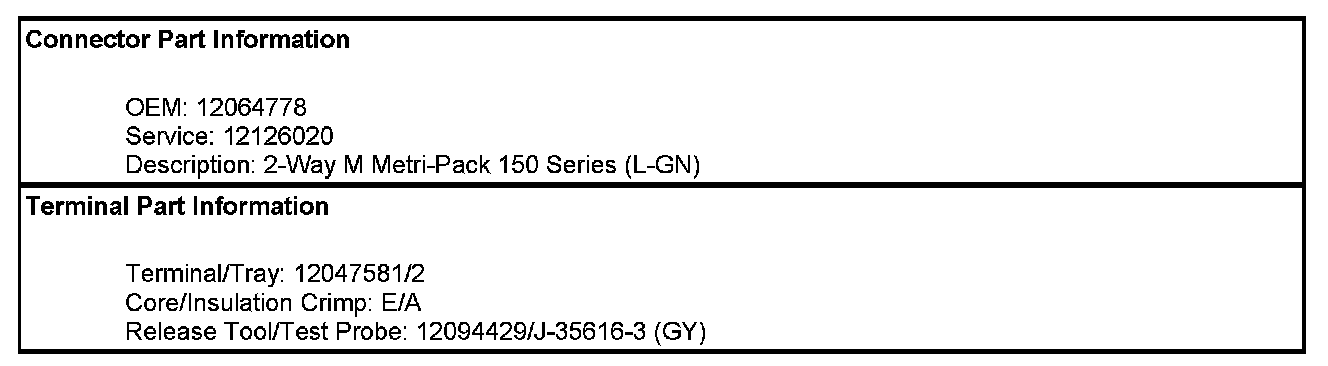

Heated Seat Element - Driver Seat

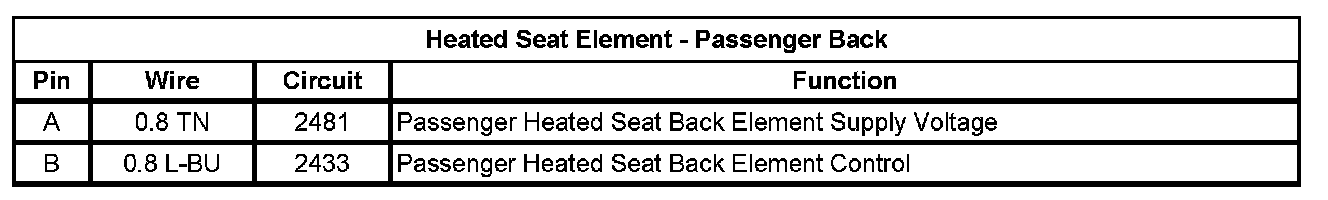

Heated Seat Element - Passenger Back

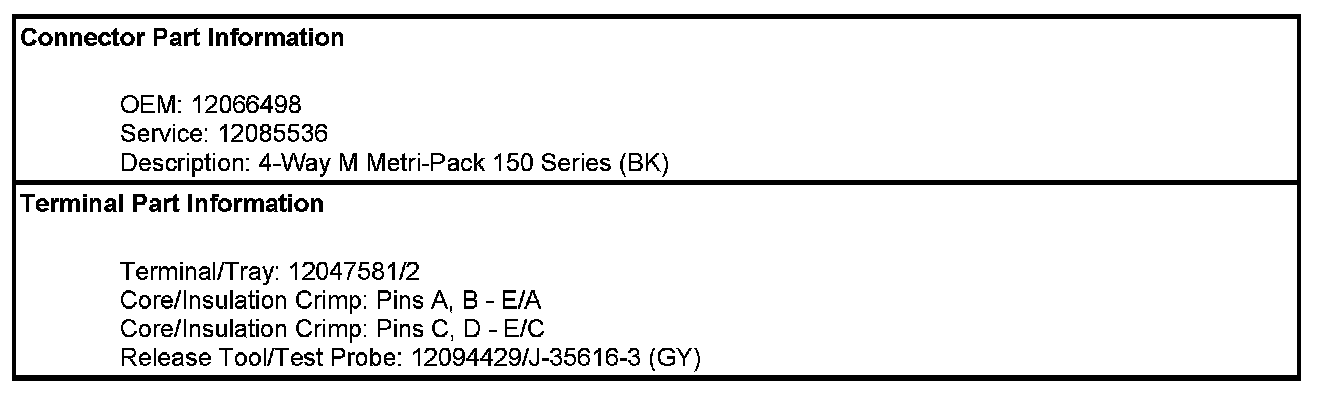

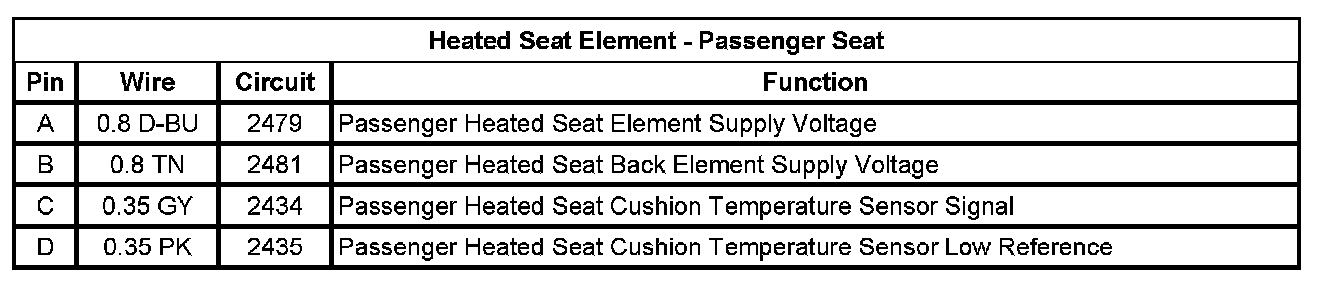

Heated Seat Element - Passenger Seat
