Spot Lamp
Spot Lamp

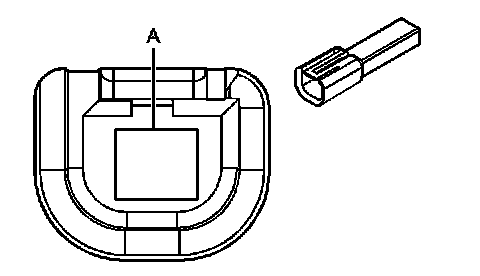

Component Connector End Views - Continued

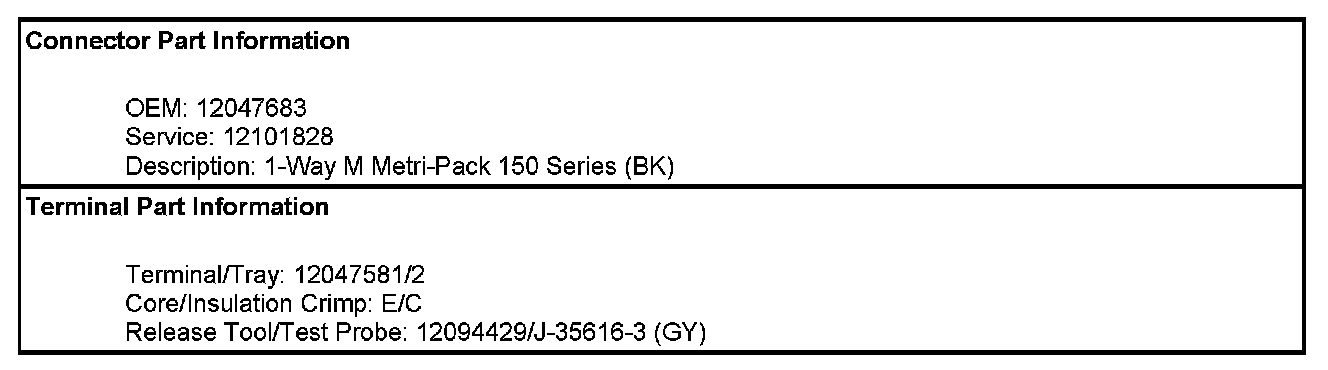

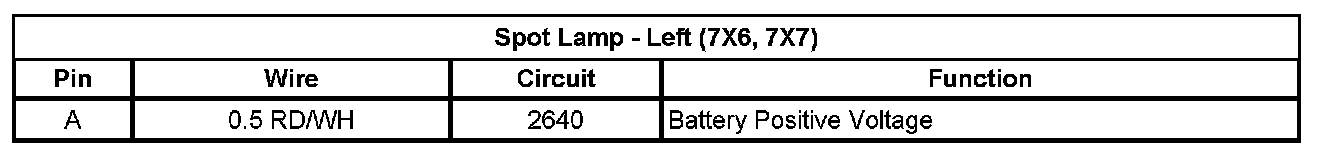

Spot Lamp
- Left (7X6, 7X7)

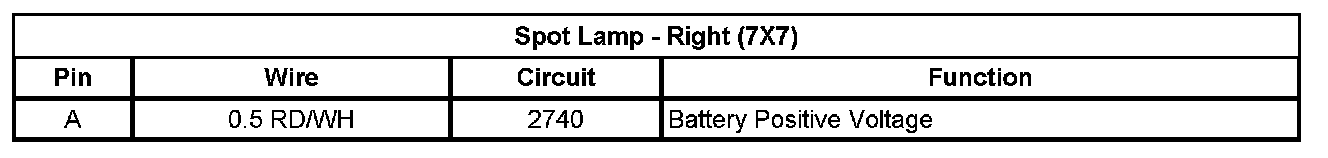

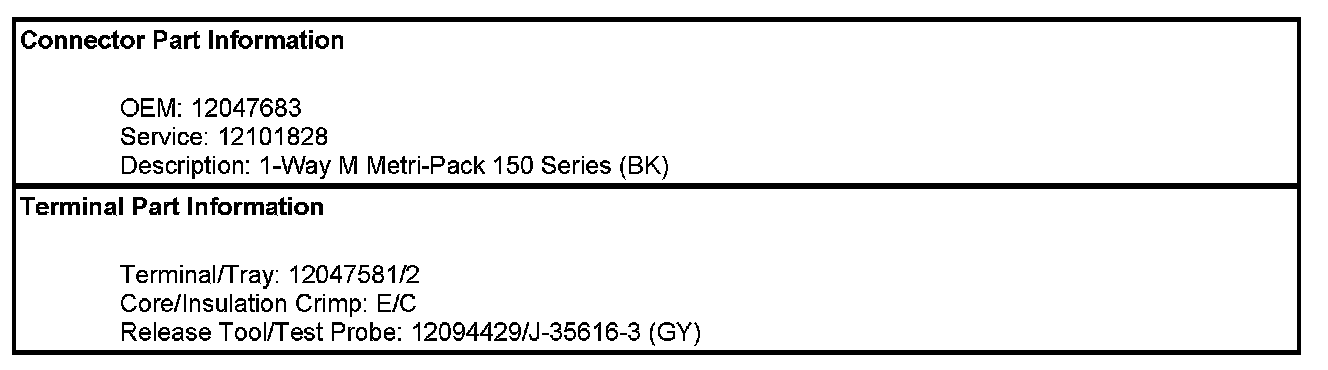

Spot Lamp
- Right (7X7)
